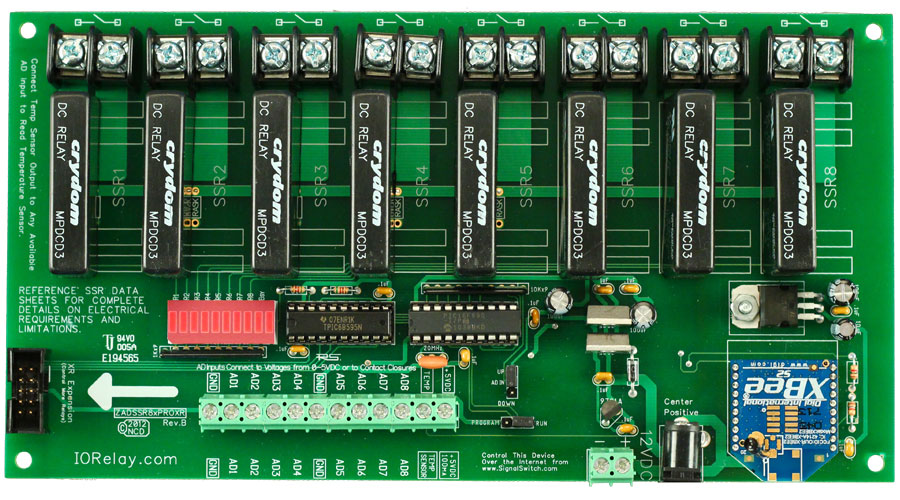

ZB ZigBee 8-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D

$229.00/ea


ZigBee Relay

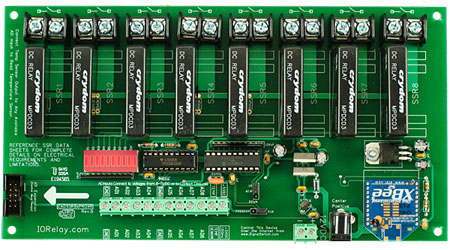

ZB ZigBee 8-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D

Product Code: ZADSSR8xPROXR_ZBMESH_MIX

This Device Acts like its Directly Connected to the Serial Port of your PC!!!  Wireless Data Collection and Control Could NOT be Easier!!!  ZigBee Powered Relay Controllers Offer Wireless Communications with No Special Software....
ZigBee Relay

ZigBee Relays with ProXR Firmware at a Glance

  • Expandable to control up to 256 Relays using the XR Expansion Port
  • 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
  • Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
  • 2400 to 115.2K Baud Networking Wireless Serial Connection for High Speed Switching
  • The ZigBee Coordinator connected to your computer sends commands to remote devices and can bounce signals off of "router" modules if a device is out of range.
  • Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing ProXR Command Set
  • Analog to Digital Conversion allows you to read voltage levels from 0-5 volts
  • 8-Channels of 8-Bit or 10-Bit A/D
