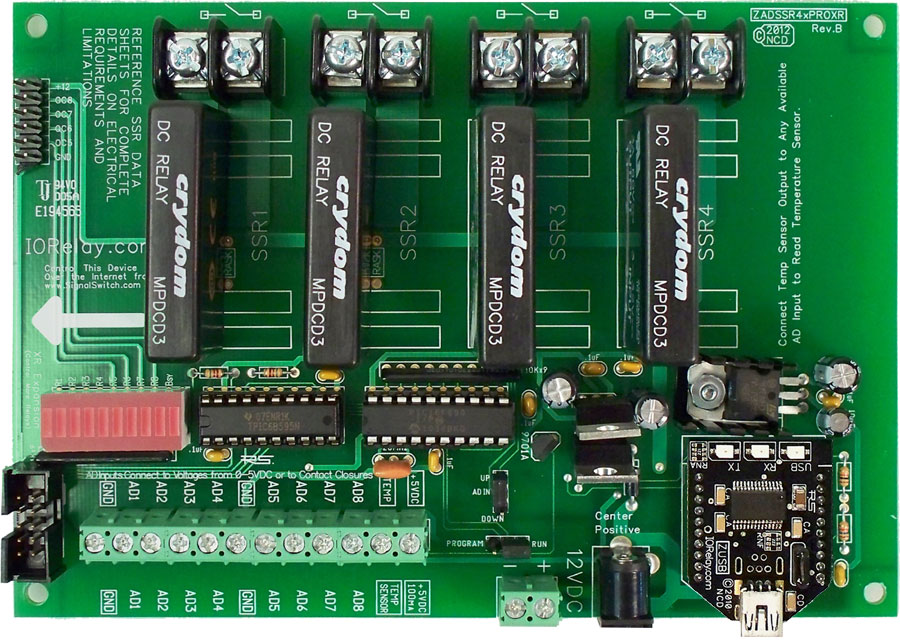

USB 4-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D

$196.00/ea


USB Relay

USB 4-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D

Product Code: ZADSSR4XPROXR_USB_MIX

ZADSSR4XPROXR_USB_MIX ProXR Lite Controller The ZADSSR4XPROXR_USB_MIX features the same ProXR Command set as our more expensive boards without the expandability of a full ProXR controller.
USB Relay

ProXR USB Relay with A/D

  • Analog to Digital Conversion allows you to read voltage levels from 0-5 volts
  • Expandable to control up to 256 Relays using the XR Expansion Port
  • 16 Background Timers Can be Assigned to Any of the Relays while Processing your Serial Byte Commands
  • Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
  • High Speed USB Connection for Easy Switching
  • Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing ProXR Command Set
  • 8-Channels of 8-Bit or 10-Bit A/D

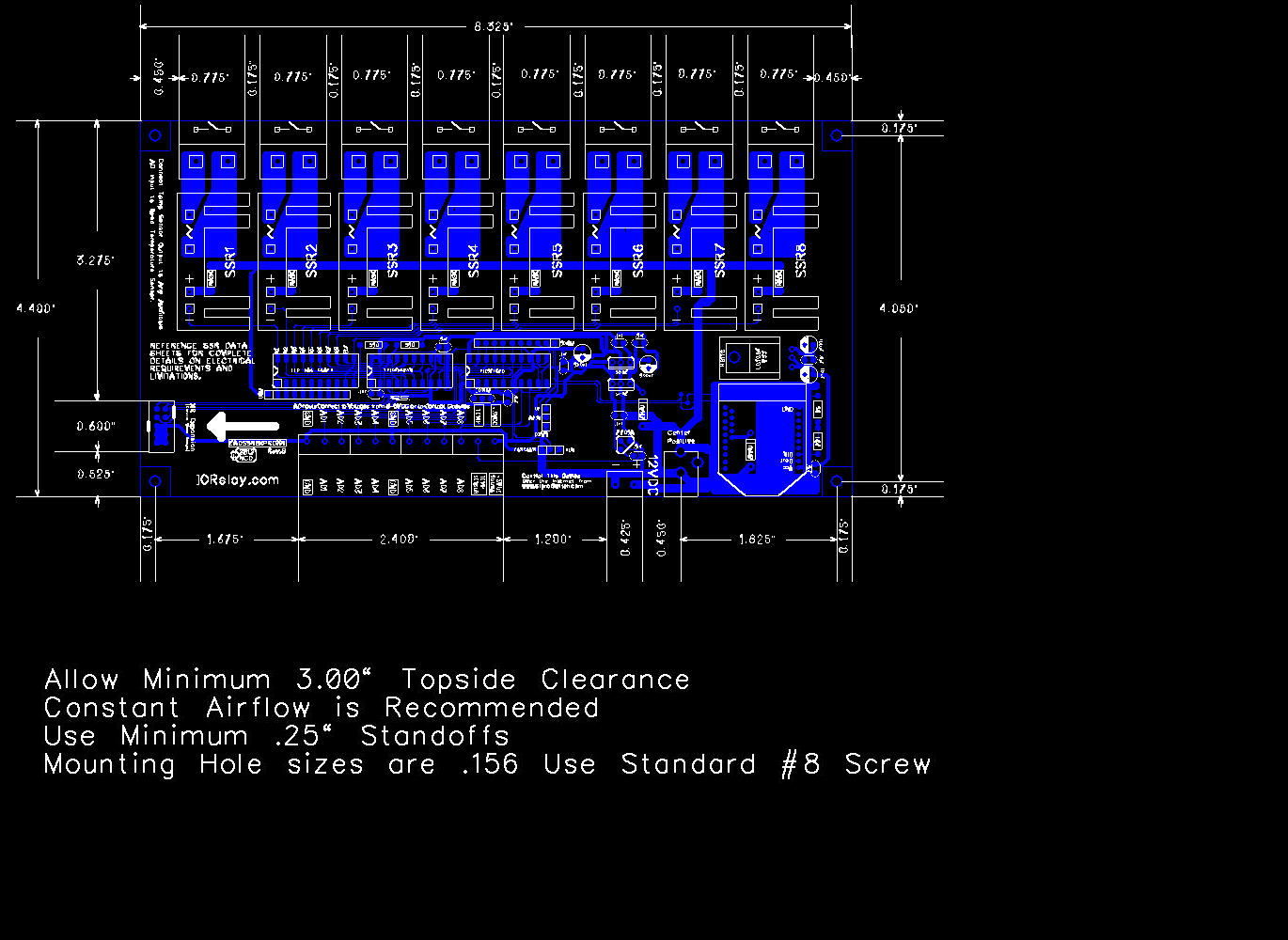

Resources:

This Product:

ZADSSR4XPROXR_USB_MIX
Ratings AC DC
Voltage 120 12
Amperage Optional Optional
USB 4-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D
Stock#: ZADSSR4XPROXR_USB_MIX $196.00


Related Products:

ZADSSR4XPROXR_USB
USB 4-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D
Stock#: ZADSSR4XPROXR_USB $196


Desktop Control

N-Button Lite
Desktop Control & Monitoring
Control Relays without any programming!
N-Button creates up to 8 desktop widgets to control relays without any programming.

Order Today with This Board for Only $29
Stock#: N-Button Lite $49.00


Questions?

AccessNCD

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
Credit Cards Accepted
PayPal Accepted
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

USB ProXR Enhanced with A/D

USB Virtual COM Relay Controller with 8-Channels of
Analog to Digital Conversion and XR Expansion Port

About USB:

Our USB ProXR Series Relay Controllers make it easier than ever to add computer controlled switching to your most demanding computer control applications.  Simply connect to your computer and this controller mounts as a Virtual COM Port on your PC, allowing easy programming from any language that supports serial communications.

This ProXR series controller connects to the USB port of your computer and requires a 12VDC Power Supply.  Once powered up, the relay controller waits for a command.  A command consists of a few bytes of data.  Usually between 2 and 6 bytes.  Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.

Read More About USB Communications

NOTICE: This Device CANNOT be used in inductive control applications. Click Here for More Information

ZUSB Modules

This board is equipped with a ZUSB Module. The ZUSB communications module adds USB communications to all NCD devices equipped to accept modular wireless communication modules. The ZUSB is powered from the USB port of your computer and includes a 6' USB Cable. The ZUSB is available in three varieties:

About ProXR:

With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR Expansion Port.  All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.

You can send commands to activate relays, deactivate relays, control all the relays at one time, plus you can send commands that tell a relay to turn on for a few seconds, minutes, or hours.  You can assign 16 timers to any of the 256 relays, and set the timers to go off after the duration has expired. That's just the beginning, find out more about our ProXR Command Set.

Read More About the ProXR Standard

Analog to Digital Conversion

Analog Inputs are very special in that they are sensitive to voltage changes.  Analog to Digital (A/D) conversion is the process of converting a voltage in the range of 0 to 5VDC into a number that can be processed by custom software that you develop.  The ProXR Command Set will allow you to send a command to the board and read voltage levels from 0-5 volts using 8-bit resolution.  8-Bit resolution will read the voltage input (from 0 to 5VDC) and then is interpreted as a value from 0 to 255.  Zero being a contact closure input.
    For Example
  • A voltage input of 0 Volts is interpreted as a value of 0
  • A voltage input of 2.5 Volts is interpreted as a value of 127
  • A voltage input of 5 Volts is interpreted as a value of 255
So if you divide 5 Volts by 255 possible steps (0-255 for 8-Bit resolution), the board is sensitive to voltage changes as small as 0.019 Volts.  This controller has eight A/D inputs, each input is capable of reading a separate voltage from 0 to 5 VDC, provided all voltages can share a common ground.  This is particularly useful for reading temperature sensors (one temperature sensor is built into select boards mostly 4 & 8 channel, shared with analog input number 8).  A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.

A/D Sample Programs Available

Eight Different A/D Sample programs are available in the Component Library.  These samples are available as a free download and are compatible with Visual Studio.

N-Button Lite

N-Button Lite creates up to 8 buttons or widgets to control relays without any programming. A new button will be created and placed on the desktop of your computer for each relay that you want to control. N-Button Lite supports Serial Port/ USB and Network connection between PC and relay board. N-Button Lite Manager makes it easy to add any type of button to the desktop and change the properties.

Analog to Digital meters can also be added to your desktop to instantly read the status of any sensor or probe you may have connected to the board. Each meter is customizable and can be changed without any programming knowledge.

Relay Button widgets turn on/off relay directly. It has never been so easy to control relays before.
Relay Status widgets show status of the relay automatically.
A/D Meter widgets display the value of A/D channel automatically.
Customized Button widgets allows you send any of the commuands in the manual to relay board.

N-Button Lite is available as a free download. Look for the Desktop Control section to the right to download.

N-Button Lite version supports up to 8 widgets. If you want to add more than 8 widgets, simply upgrade to the N-Button Standard version.

ALL RELAYS ARE HERMETICALLY SEALED, Relay Controller Requires +12VDC Power Supply, Photos May Show Options or Accessories Not Included with Relay Controller.  USB Specification Prohibits Relay Controllers from Being USB Bus Powered due to Surge Currents.  NCD will NOT Design/Manufacture a Mechanical Relay Controller that is USB Bus Powered, Please Be Cautious of Any Manufacturer who Offers such a Device.

Resources

Choose a Solid State Relay for This Controller:

TYPE A

Crydom
D2W202F

SPST-NO

2A 240VAC Normally Open SPST
Zero Crossing Turn On
Built-In Snubber Circuit
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
D2W Series Data Sheet
$29/each

TYPE B

Crydom
CX240D5

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

$23/each

TYPE C

Crydom
CX240D5R

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

$25/each

TYPE D

Crydom
PF240D25R

SPST-NO

25A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet
$42/each

TYPE E

Crydom
PF480D25

SPST-NO

25A 480VAC Normally Open SPST
Zero Crossing Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet
$46/each

TYPE F

Crydom
MPDCD3

SPST-NO

3A 60VDC Normally Open SPST
For Use with Resistive or Inductive Loads
DC Switching ONLY
.02A Minimum Load Required
1.5V Maximum On-State Voltage Drop
-40 to 80°C Operating Temperature
PF Series Data Sheet
DC Solid State Connection Diagram
$37/each

TYPE H

Crydom
CMX60D10

SPST-NO

10A 60VDC Normally Open SPST
For Use with Resistive or Inductive Loads
DC Switching ONLY
No Minimum Load Required
.1V Maximum On-State Voltage Drop
-30 to 80°C Operating Temperature
CX Series Data Sheet
$59/each

TYPE G - 45 Day Lead Time

Crydom
CMX60D20

SPST-NO

20A 60VDC Normally Open SPST
For Use with Resistive or Inductive Loads
DC Switching ONLY
No Minimum Load Required
.1V Maximum On-State Voltage Drop
-30 to 80°C Operating Temperature
CX Series Data Sheet
$97/each
NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com.
