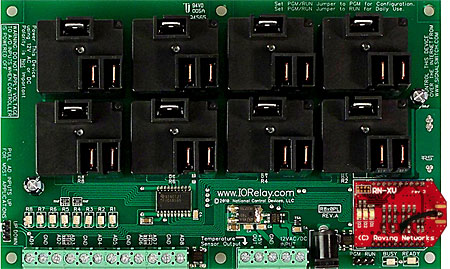

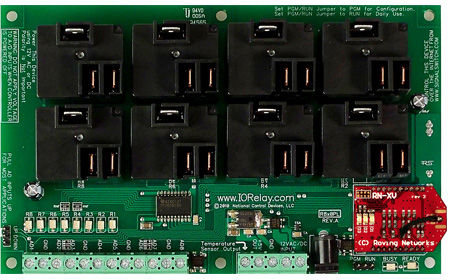

These boards communicate and are controlled by Android over a WiFi (WLAN) connection or the internet through either your 3g, 4g, or a properly configured Local Area Network connection. This means the free to use IORelay TCP Android app can allow you to control your electronic devices from anywhere in the world using tools many people are already acquainted with and carry at all times.

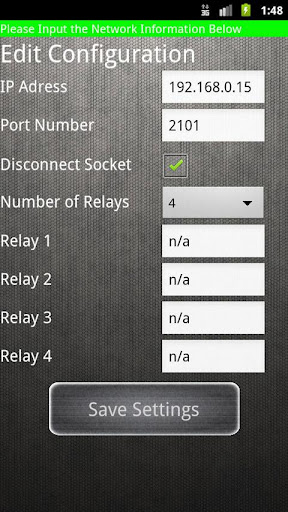

The app can be downloaded from the Google Play marketplace. Currently it allows you to control up to 8 relays each with individual names. All you have to do is download the app go to the configuration page and type in the IP Address, the port number the the Device is listening on (2101 by default), and choose how many relays your board has.

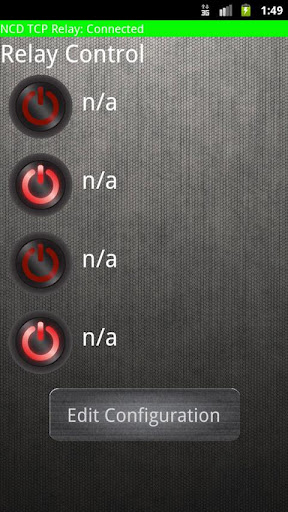

Preview of the interface of the IORelay TCP app
The Android app has an option to "Disconnect Socket" which if checked allows multiple Android Devices to communicate with the board at the same time. Checking this option will slow down communications with the board, but over a LAN Connection this shouldn't be a noticeable speed change.
The app was intentionally designed to try for as long as it can to establish communications and make sure the command goes through. However, these continuous attempts may cause force close errors, most notably when either the Relays are out of range, the Android Device is out of Range, or there is an internet outage. We hope to find a viable solution to this in updates to come.
Learn about WiFi Relays for Android
How to set up your Android App
How to Configure your WiFi Module
Learn how computer controlled relays communicate and control
Learn about Induction Suppression and how to counter it using Capacitors
Learn about Analog to Digital Conversion and its uses
Learn about the Expansion Options available to use with our controllers
|Download the App||Download the IORelay TCP App from Google Play|
|NCD Base Station Software||Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device.|
|Wi-Fi Quick Start Guide||Wi-Fi Quick Start Guide|
|ProXR Quick Start Guide||ProXR Quick Start Guide Understanding configuration options and sending commands|
|A/D Quick Start Guide||A/D Quick Start Guide Understanding Analog to Digital Conversion|
|USB Drivers||USB Drivers required to communicate to the WiFi Configuration Kit|
|NCD Component Library||The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.|
|Wiring Diagrams||These Wiring Diagrams will help you understand how to connect to your devices and use relays as a form of control logic|
|Mechanical Drawing||Mechanical Drawing for this board|
