Web Relay - 32 Channel ProXR

ProXR Web Relay

All The Features You Need...

Control Relays through Built-In Web Relay Interface
Read A/D Inputs
Onboard Ethernet Interface
- Plugs directly into Router
- Use Netgear adapter for Wi-Fi
ProXR Versions
- Full ProXR Command Set
- Expandable to 256 relays
Built-In Working Web Pages
- Page for turning relays on/off
- Page with meters for reading sensors
- Plus Many More!

Web Relay
Control with Web Interface

The Web Relay is equipped with firmware built into the board that will allow you to Control relays with a web page. The web relay controllers have a web page built into the module that you can access through your local network or internet.

Control By Web!

The Web Relay is an ideal choice for applications that require you to control relays by the web, and it's extremely easy to work with since the working web pages are already in the module.

Simple Reliable Web Relay Control
Control relays through your LAN or over the internet.
Ready to use web pages are built into the Ethernet module
Simply Access the Web Page & Trigger Relays!

Also Available:

Ethernet Relay

300' Standard Range

More Information: Ethernet Relay

Virtual COM Port over Ethernet

Direct TCP/IP Communications

Extensive Network Configuration

Web Relay

Web Pages Allow You to Control Relays
Easy Setup - Just Plug Into Your Router
Control Relays with your LAN or Internet connection

Selecting The Web Interface

By selecting the Web Relay interface you will be sending commands through your local area network or internet to the board. Boards on this page are equipped with a Web-i communications module that adds Ethernet communications to the board. The board will plug directly into your router where it is assigned an IP address. Once the IP address has been assigned you can access the pages built into the module and trigger relays.

Selecting a Web Relay Board

Below you will find the 4-channel Web Relay Controllers that are available. The difference being the amperage of the relays installed and the type of relay. Choose the controller that fits the amperage you are switching. You will find SPDT relays in the 5, 10 and 20 amp versions and an SPST version in the 30 amp version. DPDT versions are also available with 1, 3 or 5 amp relays installed. For more information on selecting the correct relay for your application see Choosing a Proper Amperage.

Selecting a Web Relay Series

The Web Relay boards are available in the ProXR Lite and ProXR versions. Both versions have the same firmware installed and accept the same ProXR command set, the industry leading command set for controlling relays. The ProXR lite version is non-expandable, the ProXR version is expandable to 256 relays. When you find your controller click on the Full Description link to view full specs, watch setup videos, download software and purchase.

More Web Relay Options

Web Relay - ProXR

ProXR Web Relay:
The ProXR Series Controller allow computers to read contact closure inputs, analog to digital converters and control up to 256 Relays using a single computer interface. ProXR series controllers focus on expansion for industrial control applications.

Computer Interface: Number of Relays on Controller:

Web Relay Options

Web Relay Interface 2 4 8 16 24 32 Solid State Relays
Web Relay - Lite

ProXR Lite Web Relay:
The ProXR Lite product line allows computers to read up to 8 analog inputs and control up to 8 relays.
Non-Expandable, the ProXR Lite Product Line focuses on interchangeable Computer Interface Modules and Low Cost

Computer Interface: Number of Relays on Controller:

Web Relay Options

Web Relay Interface 1 2 4 8 Solid State Relays

Find the board you need by using the interactive menu to he right. Hover over the Button and select the number of relays you want installed. Once there simply select the board with the correct amperage for the item you are switching.

ProXR Web Relay

Displaying 1 - 17 of 17 Products in this Category.

Display Page: ( 1 )

ZADR3220ProXR_WEB-i

Web-i Relay Controller 32-Channel 20 Amp SPDT + 8-Channel 8/10-Bit A/D

32 Relays - 20 Amp SPDT
Web-i Communications
Ideal Use: Power Switching
ProXR Series
8 A/D Inputs
XR Expansion Port

$848.00 Full Description

ZADR3230ProXR_WEB-i

Web-i Relay Controller 32-Channel 30 Amp SPST + 8-Channel 8/10-Bit A/D

32 Relays - 30 Amp SPST
Web-i Communications
Ideal Use: Power Switching
ProXR Series
8 A/D Inputs
XR Expansion Port

$962.00 Full Description

ZADSR3210ProXR_WEB-i

Web-i Relay Controller 32-Channel 10 Amp SPDT + 8-Channel 8/10-Bit A/D

32 Relays - 10 Amp SPDT
Web-i Communications
Ideal Use: Power Switching
ProXR Series
8 A/D Inputs
XR Expansion Port

$704.00 Full Description

ZADSR321DPDTProXR_WEB-i

Web-i Relay Board 32-Channel 1 Amp DPDT + 8-Channel 8/10-Bit A/D

32 Relays - 1 Amp DPDT
Web-i Communications
Ideal Use: Signal Switching
ProXR Series
8 A/D Inputs
XR Expansion Port

$699.00 Full Description

ZADSR323DPDTProXR_WEB-i

Web-i Relay Board 32-Channel 3 Amp DPDT + 8-Channel 8/10-Bit A/D

32 Relays - 3 Amp DPDT
Web-i Communications
Ideal Use: Signal Switching
ProXR Series
8 A/D Inputs
XR Expansion Port

$779.00 Full Description

ZADSR325DPDTProXR_WEB-i

Web-i Relay Board 32-Channel 5 Amp DPDT + 8-Channel 8/10-Bit A/D

32 Relays - 5 Amp DPDT
Web-i Communications
Ideal Use: Signal Switching
ProXR Series
8 A/D Inputs
XR Expansion Port

$859.00 Full Description

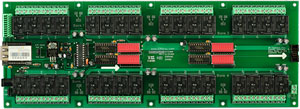

ZADSR325ProXR_WEB-i

Web-i Relay Controller 32-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D

32 Relays - 5 Amp SPDT
Web-i Communications
Ideal Use: Power Switching
ProXR Series
8 A/D Inputs
XR Expansion Port

$624.00 Full Description

ZADSRR32-5SPDTProXR_WEB-i

Web-i Reed Relay Controller 32-Channel .5A SPDT + 8-Channel 8/10-Bit A/D

32 Relays - 0.5 Amp Reed
Web-i Communications
Ideal Use: Signal Switching
ProXR Series
8 A/D Inputs
XR Expansion Port

$859.00 Full Description

ZADSRR32-5SPSTProXR_WEB-i

Web-i Reed Relay Controller 32-Channel .5A SPST + 8-Channel 8/10-Bit A/D

32 Relays - 0.5 Amp Reed
Web-i Communications
Ideal Use: Signal Switching
ProXR Series
8 A/D Inputs
XR Expansion Port

$699.00 Full Description

ZSCAN32ProXR_WEB-i

Web-i 32-Channel Contact Closure Input Scanner Detector

32 Channels
Web-i Communications
Contact Closure Detection A/D Inputs
ProXR Series

$254.00 Full Description

ZUXPR3220ProXR_WEB-i

Web-i Relay Controller 32-Channel 20 Amp SPDT + UXP Universal Expansion Port

32 Relays - 20 Amp SPDT
Web-i Communications
Ideal Use: Power Switching
ProXR Series
XR and UXP Expansion Ports

$848.00 Full Description

ZUXPR3230ProXR_WEB-i

Web-i Relay Controller 32-Channel 30 Amp SPST + UXP Universal Expansion Port

32 Relays - 30 Amp SPST
Web-i Communications
Ideal Use: Power Switching
ProXR Series
XR and UXP Expansion Ports

$962.00 Full Description

ZUXPSR3210ProXR_WEB-i

Web-i Relay Controller Board 32-Channel 10 Amp SPDT + UXP Universal Expansion Port

32 Relays - 10 Amp SPDT
Web-i Communications
Ideal Use: Power Switching
ProXR Series
XR and UXP Expansion Ports

$704.00 Full Description

ZUXPSR321DPDTProXR_WEB-i

Web-i Relay Controller Board 32-Channel 1 Amp DPDT + UXP Universal Expansion Port

32 Relays - 1 Amp DPDT
Web-i Communications
Ideal Use: Signal Switching
ProXR Series
XR and UXP Expansion Ports

$699.00 Full Description

ZUXPSR323DPDTProXR_WEB-i

Web-i Relay Controller Board 32-Channel 3 Amp DPDT + UXP Universal Expansion Port

32 Relays - 3 Amp DPDT
Web-i Communications
Ideal Use: Signal Switching
ProXR Series
XR and UXP Expansion Ports

$779.00 Full Description

ZUXPSR325DPDTProXR_WEB-i

Web-i Relay Controller Board 32-Channel 5 Amp DPDT + UXP Universal Expansion Port

32 Relays - 5 Amp DPDT
Web-i Communications
Ideal Use: Signal Switching
ProXR Series
XR and UXP Expansion Ports

$859.00 Full Description

ZUXPSR325ProXR_WEB-i

Web-i Relay Controller Board 32-Channel 5 Amp SPDT + UXP Universal Expansion Port

32 Relays - 5 Amp SPDT
Web-i Communications
Ideal Use: Power Switching
ProXR Series
XR and UXP Expansion Ports

$624.00 Full Description

Display Page: ( 1 )
