Web Relay - ProXR

ProXR Web Relay

Web Relay


All The Features You Need...

  • Control Relays through Built-In Web Relay Interface
  • Read A/D Inputs
  • Onboard Ethernet Interface
      - Plugs directly into Router
      - Use Netgear adapter for Wi-Fi
  • ProXR Versions
      - Full ProXR Command Set
      - Expandable to 256 relays
  • Built-In Working Web Pages
      - Page for turning relays on/off
      - Page with meters for reading sensors
      - Plus Many More!

Web Relay
Control with Web Interface

The Web Relay is equipped with firmware built into the board that will allow you to Control relays with a web page. The web relay controllers have a web page built into the module that you can access through your local network or internet.

Control By Web!

The Web Relay is an ideal choice for applications that require you to control relays by the web, and it's extremely easy to work with since the working web pages are already in the module.

Simple Reliable Web Relay Control
Control relays through your LAN or over the internet.
Ready to use web pages are built into the Ethernet module
Simply Access the Web Page & Trigger Relays!

Also Available:

Ethernet Relay

Ethernet Relay

More Information: Ethernet Relay
  • Virtual COM Port over Ethernet
  • Direct TCP/IP Communications
  • Extensive Network Configuration

Web Relay

Web Pages Allow You to Control Relays
Easy Setup - Just Plug Into Your Router
Control Relays with your LAN or Internet connection

Selecting The Web Interface

By selecting the Web Relay interface you will be sending commands through your local area network or internet to the board.  Boards on this page are equipped with a Web-i communications module that adds Ethernet communications to the board.  The board will plug directly into your router where it is assigned an IP address.  Once the IP address has been assigned you can access the pages built into the module and trigger relays.

Selecting a Web Relay Board

Below you will find the 4-channel Web Relay Controllers that are available. The difference being the amperage of the relays installed and the type of relay.  Choose the controller that fits the amperage you are switching.  You will find SPDT relays in the 5, 10 and 20 amp versions and an SPST version in the 30 amp version.  DPDT versions are also available with 1, 3 or 5 amp relays installed.  For more information on selecting the correct relay for your application see Choosing a Proper Amperage.

Selecting a Web Relay Series

The Web Relay boards are available in the ProXR Lite and ProXR versions. Both versions have the same firmware installed and accept the same ProXR command set, the industry leading command set for controlling relays.  The ProXR lite version is non-expandable, the ProXR version is expandable to 256 relays.  When you find your controller click on the Full Description link to view full specs, watch setup videos, download software and purchase.

ProXR Web Relay

Displaying 1 - 10 of 10 Products in this Category.
Sort By:

Display Page:     ( 1 )

ZADSR2410ProXR_WEB-i
Web-i Relay Controller 24-Channel 10 Amp SPDT + 8-Channel 8/10-Bit A/D
  • 24 Relays - 10 Amp SPDT
  • Web-i Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $678.00               Full Description
ZADSR241DPDTProXR_WEB-i
Web-i Relay Board 24-Channel 1 Amp DPDT + 8-Channel 8/10-Bit A/D
  • 24 Relays - 1 Amp DPDT
  • Web-i Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $654.00               Full Description
ZADSR243DPDTProXR_WEB-i
Web-i Relay Board 24-Channel 3 Amp DPDT + 8-Channel 8/10-Bit A/D
  • 24 Relays - 3 Amp DPDT
  • Web-i Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $723.00               Full Description
ZADSR245DPDTProXR_WEB-i
Web-i Relay Board 24-Channel 5 Amp DPDT + 8-Channel 8/10-Bit A/D
  • 24 Relays - 5 Amp DPDT
  • Web-i Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $792.00               Full Description

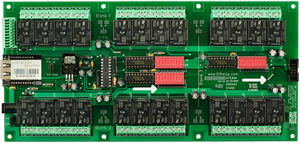

ZADSR245ProXR_WEB-i
Web-i Relay Controller 24-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D
  • 24 Relays - 5 Amp SPDT
  • Web-i Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $609.00               Full Description
ZUXPSR2410ProXR_WEB-i
Web-i Relay Controller Board 24-Channel 10 Amp SPDT + UXP Universal Expansion Port
  • 24 Relays - 10 Amp SPDT
  • Web-i Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $678.00               Full Description
ZUXPSR241DPDTProXR_WEB-i
Web-i Relay Controller Board 24-Channel 1 Amp DPDT + UXP Universal Expansion Port
  • 24 Relays - 1 Amp DPDT
  • Web-i Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $654.00               Full Description
ZUXPSR243DPDTProXR_WEB-i
Web-i Relay Controller Board 24-Channel 3 Amp DPDT + UXP Universal Expansion Port
  • 24 Relays - 3 Amp DPDT
  • Web-i Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $723.00               Full Description
ZUXPSR245DPDTProXR_WEB-i
Web-i Relay Controller Board 24-Channel 5 Amp DPDT + UXP Universal Expansion Port
  • 24 Relays - 5 Amp DPDT
  • Web-i Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $792.00               Full Description
ZUXPSR245ProXR_WEB-i
Web-i Relay Controller Board 24-Channel 5 Amp SPDT + UXP Universal Expansion Port
  • 24 Relays - 5 Amp SPDT
  • Web-i Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $609.00               Full Description
