USB Relay - ProXR

ProXR USB Relays

USB Relay

All The Features You Need...

  • 16 Relays Installed on Circuit Board
  • Mounts as a Virtual COM Port on Computer
  • Base Station Software gets you up and running fast
  • Control One Relay or a Bank of Relays
  • ProXR Lite Versions - Not Expandable
  • ProXR Versions - Expandable to 256 Relays
  • Program in almost any language
  • 16 Available Timers
  • ProXR versions are capable of controlling up to 256 relays
  • 16 Background Timers Can be Assigned to Any of the Relays while Processing Your RS232 Commands

USB Relay
Control By Onboard USB Interface

USB Relay Controllers allow computer controlled switching using the USB port of your computer. An NCD USB Relay Board emulates a COM port, allowing you to speak to the relay board using any programming language that supports serial communications. COM drivers allow you to assign any COM port to the USB Relay Board. An NCD USB Relay Driver supports 8-Channels of 8-Bit / 10-Bit Analog to Digital Conversion (A/D) or UXP Expansion Port, and includes an XR Relay Expansion Port for adding additional relays to the USB Relay Controller Board.

USB Relay Options

USB Relays are available with SPDT 5, 10 and 20 amp, SPST 30 amp and DPDT 1, 3 & 5 amp relays installed.

Control these USB Relays through the USB port of your computer.  The controller mounts as a virtual COM port for easy programming in almost any language.

Wireless Thru USB

Wireless From USB Port

USB Relay with Wireless Modem

Category Link: Wireless USB
  • Modem Connects to USB Port
  • Mounts as a Virtual COM Port
  • Data is Sent Wirelessly to Controller
  • Easy USB Communications with Wireless Results!

USB Relay

Mounts as a Virtual COM Port on Your PC
Easy Programming From any Language That Supports Serial Communications
USB Relay with the Industry Leading Command Set

Selecting The USB Interface

By selecting the USB interface you will be sending commands through the USB port of your computer to the board.  Boards on this page are equipped with a ZUSB communications module that adds USB communications to the board.  A command consists of a few bytes of data in numerical format usually between 2 and 6 bytes.  Once the command has been received, the controller processes the command and the relay activates.

Selecting a USB Relay Board

Below you will find all the 16-channel USB Relay Controllers that are available.  The difference being the amperage of the relays installed and the type of relay.  Choose the controller that fits the amperage you are switching.  You will find SPDT relays in the 5, 10 and 20 amp versions and an SPST version in the 30 amp version.  For more information on selecting the correct relay for your application see Choosing a Proper Amperage.

Selecting a USB Relay Series

The USB Relay boards are available in the ProXR Lite and ProXR versions. Both versions have the same firmware installed and accept the same ProXR command set, the industry leading command set for controlling relays.  The ProXR Lite version is non-expandable, the ProXR version is expandable to 256 relays.  When you find your controller click on the Full Description link to view full specs, watch setup videos, download software and purchase.

ProXR USB Relays

Displaying 1 - 19 of 19 Products in this Category.
Sort By:

Display Page:     ( 1 )

ZAD16OCLP_USB
16-Channel USB Low Power Open Collector Driver with an XR Port
           $133.00               Full Description

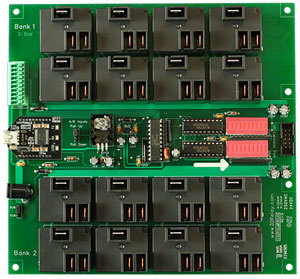

ZADR1620PROXR_USB
USB Relay 16-Channel 20 Amp SPDT + 8-Channel 8/10-Bit A/D
  • 16 Relays - 20 Amp SPDT
  • USB Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $523.00               Full Description
ZADR1630PROXR_USB
USB Relay 16-Channel 30 Amp SPST + 8-Channel 8/10-Bit A/D
  • 16 Relays - 30 Amp SPST
  • USB Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $598.00               Full Description
ZADSR1610PROXR_USB
USB Relay 16-Channel 10 Amp SPDT + 8-Channel 8/10-Bit A/D
  • 16 Relays - 10 Amp SPDT
  • USB Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $437.00               Full Description
ZADSR161DPDTPROXR_USB
USB Relay 16-Channel 1 Amp DPDT + 8-Channel 8/10-Bit A/D
  • 16 Relays - 1 Amp DPDT
  • USB Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $395.00               Full Description
ZADSR163DPDTPROXR_USB
USB Relay 16-Channel 3 Amp DPDT + 8-Channel 8/10-Bit A/D
  • 16 Relays - 3 Amp DPDT
  • USB Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $441.00               Full Description
ZADSR165DPDTPROXR_USB
USB Relay 16-Channel 5 Amp DPDT + 8-Channel 8/10-Bit A/D
  • 16 Relays - 5 Amp DPDT
  • USB Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $487.00               Full Description
ZADSR165PROXR_USB
USB Relay 16-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D
  • 16 Relays - 5 Amp SPDT
  • USB Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $391.00               Full Description
ZADSSR16XProXR_USB
USB 16-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D
  • 16 Relays - Optional Amp Solid-State
  • USB Communications
  • Ideal Use: SS Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $408.00               Full Description
ZADSSR16XProXR_USB_MIX
USB 16-Channel Mixed Solid State Relay Controller + 8-Channel 8/10-Bit A/D
  • 16 Relays - Optional Amp Solid-State
  • USB Communications
  • Ideal Use: SS Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $408.00               Full Description
ZUXPR1620PROXR_USB
USB Relay 16-Channel 20 Amp SPDT + UXP Universal Expansion Port
  • 16 Relays - 20 Amp SPDT
  • USB Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $525.00               Full Description
ZUXPR1630PROXR_USB
USB Relay 16-Channel 30 Amp SPST + UXP Universal Expansion Port
  • 16 Relays - 30 Amp SPST
  • USB Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $598.00               Full Description
ZUXPSR1610PROXR_USB
USB Relay 16-Channel 10 Amp SPDT + UXP Universal Expansion Port
  • 16 Relays - 10 Amp SPDT
  • USB Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $437.00               Full Description
ZUXPSR161DPDTPROXR_USB
USB Relay 16-Channel 1 Amp DPDT + UXP Universal Expansion Port
  • 16 Relays - 1 Amp DPDT
  • USB Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $395.00               Full Description
ZUXPSR163DPDTPROXR_USB
USB Relay 16-Channel 3 Amp DPDT + UXP Universal Expansion Port
  • 16 Relays - 3 Amp DPDT
  • USB Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $441.00               Full Description
ZUXPSR165DPDTPROXR_USB
USB Relay 16-Channel 5 Amp DPDT + UXP Universal Expansion Port
  • 16 Relays - 5 Amp DPDT
  • USB Communications
  • Ideal Use: Signal Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $487.00               Full Description
ZUXPSR165PROXR_USB
USB Relay 16-Channel 5 Amp SPDT + UXP Universal Expansion Port
  • 16 Relays - 5 Amp SPDT
  • USB Communications
  • Ideal Use: Power Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $391.00               Full Description
ZUXPSSR16XProXR_USB
USB 16-Channel Solid State Relay Controller + UXP Expansion Port
  • 16 Relays - Optional Amp Solid-State
  • USB Communications
  • Ideal Use: SS Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $408.00               Full Description
ZUXPSSR16XProXR_USB_MIX
USB 16-Channel Mixed Solid State Relay Controller + UXP Expansion Port
  • 16 Relays - Optional Amp Solid-State
  • USB Communications
  • Ideal Use: SS Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $408.00               Full Description
Sort By:

Display Page:     ( 1 )
