Solid State ZB ZigBee Mesh Network Relay

ZB ZigBee Mesh Network Devices XB Mesh Network Example

with Solid State Relays

ZB ZigBee Mesh Networking Relay

Mesh Networking is simply the hottest wireless technology of our time. Period. It's fast, it's very easy to use, highly reliable, and self healing. Three components are required for the ZB ZigBee Mesh Network, the Coordinator (C), the Router (R) and the Endpoint (E). Your computer can speak to a ZB ZigBee Mesh Network using a Coordinator. Think of the Coordinator as the interface to a ZB ZigBee Mesh Network. NCD Coordinators are equipped with a USB Interface. USB Coordinators mount as a Serial Port on your computer, and you will develop software that sends Serial commands at 115.2K Baud. The primary job of a router is to bridge the wireless gap between your computer (the Coordinator) and the device (Endpoint). If the Coordinator cannot speak to the Endpoint device because it is out of range, a Router can be used to bridge the two devices together. Endpoints are simply devices. With regard to NCD products, Endpoints can be relay controllers, data collection devices, PWM devices, and much more (and more coming).

Quick Summary of Mesh Networking

A Coordinator Connects to your Computer
A Coordinator is used to communicate with a Mesh network
A Coordinator can talk to up to 8 Endpoints or Routers in any combination
A device is an Endpoint
If a Coordinator cannot talk to an Endpoint because it is out of range, a Router can be used to bridge data between the Coordinator and the Endpoint
A Router can also be an Endpoint device, but it's slower

Solid State ZB ZigBee Relay

Our Solid State Relays feature a wide range of controllers to fit just about any application! Solid State Controllers are available with your choice of eight channel 8/10-Bit Analog to Digital Conversion or UXP Expansion Port on selected models and all are of course SignalSwitch compatible. All 4 and 8 Channel Solid State models feature the ProXR Command Set and an XR Expansion Port. Built from the ground up with Expansion in mind, simply Chain the XR Expansion Modules, one after another, to meet your computer controlled switching requirements. For more detailed information and to order, please click on the links below.

Solid State Features

Features include LED status lights that light when the relay is in the on position, a power light, and E3C compliance. 38.4K baud is the default baud rate but these devices have a user programmable baud rate of up to 115.2 and is compatible with ANY computer or microcontroller capable of delivering RS-232 data. These 4 and 8 channel models are available with your choice of a UXP connector or Analog to Digital inputs. Solid State Relays have a longer life span, faster switching time and are far more tolerant it high induction loads.


	NEW TO MESH NETWORKING GET STARTED HERE Click the above link for an exclusive article on Mesh Networking

A/D Conversion
Analog to Digital Conversion

UXP Expansion
UXP Expansion

XR Expansion
ProXR versions

Solid State Relay with Analog to Digital Conversion available on the 4 & 8 channel models

Solid State Relay with UPX Expansion Port available on the 4 & 8 channel models

Solid State Relay with XR Expansion Port available on the 8 channel model

Onboard analog to digital conversion is available on selected models of these controllers! This will allow you to:

Read light and temperature levels
Easily activate relays when A/D limits are reached
Detect audio levels in a room when connected to a microphone
Read switches, potentiometers, and analog joysticks
applications are limitless, and surprisingly easy to integrate
Available on ZB ZigBee models

More Information >

UXP is a new standardized data port, specifically for the purpose of speaking to various expansion modules. If the controller you are considering is equipped with a UXP port, you can take advantage of extended commands to speak to our growing line of I/O expansion modules. UXP in the part number allows you to:

Add Contact Closure Inputs
Add Analog to Digital Inputs
Add Voltage Detectors
Digital Potentiometer Outputs
Available on Solid State ZB ZigBee
More Information >

Models with the ProXR suffix will feature the ProXR commend set. The ProXR series will allow you to:

Send simple commands to activate relays
Activate up to 16 relay timers
Control up to 256 total relays using the XR expansion port
Full backward/forward compatibility from the ProXR series command set
Available on all Solid State ZB ZigBee models

More Information >

Solid State Relays with a ZB ZigBee Interface

Displaying 1 - 14 of 14 Products in this Category.

Display Page: ( 1 )

KLRSSR8x_ZBMESH

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
Key-Fob Series
Learn More

$295.00/ea

KLRSSR8x_ZBMESH_MIX

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
Key-Fob Series
Learn More

$295.00/ea

LRSSR8x_ZBMESH

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
Reactor Series
Learn More

$257.00/ea

LRSSR8x_ZBMESH_MIX

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
Reactor Series
Learn More

$257.00/ea

SSR8xPL_ZBMESH

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR-Lite Series
Learn More

$163.00/ea

SSR8xPL_ZBMESH_MIX

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR-Lite Series
Learn More

$163.00/ea

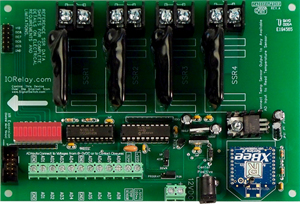

ZADSSR4xPROXR_ZBMESH

4 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
8 A/D Inputs
XR Expansion Port
Learn More

$159.00/ea

ZADSSR4xPROXR_ZBMESH_MIX

4 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
Learn More

$159.00/ea

ZADSSR8xPROXR_ZBMESH

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
8 A/D Inputs
XR Expansion Port
Learn More

$199.00/ea

ZADSSR8xPROXR_ZBMESH_MIX

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
Learn More

$199.00/ea

ZUXPSSR4xPROXR_ZBMESH

4 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
XR and UXP Expansion Ports
Learn More

$159.00/ea

ZUXPSSR4xPROXR_ZBMESH_MIX

4 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
XR and UXP Expansion Ports
Learn More

$159.00/ea

ZUXPSSR8xPROXR_ZBMESH

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
XR and UXP Expansion Ports
Learn More

$199.00/ea

ZUXPSSR8xPROXR_ZBMESH_MIX

8 Relays
Optional Amp Solid-State
ZigBee Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
ProXR Series
XR and UXP Expansion Ports
Learn More

$199.00/ea
