Computer Controlled Switching from
Anywhere on the Network
Unmatched Solid State Reliability and Induction Tolerance! Data Collection and Control with Future Expandability in Mind. These ProXR Series Solid State Ethernet Controllers are Feature Rich and Ready to Grow with your Needs! The Solid State Ethernet Relay Board Connects to the Ethernet Port of your Local Network Hub, Allowing Computer Controlled Switching from Anywhere on the Network. Current Solid State Ethernet Controllers offer Relay Control + 8-Channels 8/10-Bit A/D, or Relay Control +
UXP Expansion Port. All versions include an
XR Expansion Port for adding additional relay banks. Using our
Standardized ProXR Command Set.
Summary of Ethernet Communications
Ethernet Interface Mounts as a COM Port on your PC Through your LAN
Supports Telnet and Data Encryption with password protection
Embedded Digi Connect Wi-ME® Ethernet Interface and Web Server from www.digi.com
Plug in, open the COM port and start sending commands
SPDT, DPDT and Solid State versions
Control one relay at a time or all relays at once with manual and automatic refreshing
command set
ProXR versions are capable of controlling up to 256 relays

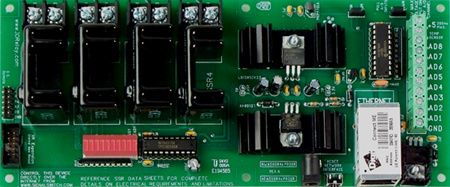

Our Solid State Ethernet Relays feature four and eight channels with your choice of relays (see below). You can even customize each relay on the controller! Solid State controllers are available with your choice of eight channel 8/10-Bit
Analog to Digital Conversion or UXP Expansion Port on selected models and all are of course
SignalSwitch compatible. All Solid State Ethernet Boards feature the
ProXR Command Set and an XR Expansion Port. Built from the ground up with expansion in mind, simply chain the
XR Expansion Modules to the XR Expansion port, one after another, to meet your computer controlled switching requirements to add up to 256 relays. For more detailed information, videos, manuals and to order, please click on the links below.
Easy Software Development
Communications and software development is very easy, simply write your software to speak to the RS-232 serial port (COM port of your PC), and install the included RealPort Drivers that allow you to map a COM port to an I.P. address. So you do not have to know anything about Ethernet communications to speak to the device.
Many Communication Protocols for Advanced Users
Advanced users may want to employ other communication protocols to speak the the Ethernet Relay Controller. NCD Ethernet Relay Controllers can also be controlled using Telnet. I.P. Addresses and are automatically or manually assigned. NCD Ethernet Relay Controllers also support security protocols such as Shared Key, WEP, WPA, and Cisco LEAP with support for WEP, TKIP, and CCMP data encryption.
UXP is a new standardized data port, specifically for the purpose of speaking to various expansion modules. If the controller you are considering is equipped with a UXP port, you can take advantage of extended commands to speak to our growing line of I/O expansion modules. UXP in the part number allows you to:
The ProXR Series Controller allow computers to read contact closure inputs, analog to digital converters and control up to 256 Relays using a single computer interface. ProXR series controllers focus on expansion for industrial control applications.
The ProXR Lite product line allows computers to read up to 8 analog inputs and control up to 8 relays.
Non-Expandable, the ProXR Lite Product Line focuses on interchangeable Computer Interface Modules and Low Cost
Focusing on Cost Reduction and High Volume Manufacturing, the Low Cost Series are No-Frills Relay Controllers that offer Basic Computer Control at Low Communications Speed.
Android Relays use wireless and internet technologies to communicate with your android smart phone or tablet through free apps available on Google Play. More Coming Soon
Activate Relays when Sensors Reach Limits. Trigger Timers, Counters, and Events.
Use a Computer to Setup the Reactor, then Let the Reactor Work by itself without a computer.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
Activate Relays with a Remote Control Key Fob. Trigger Timers, Counters, and Events.
Use a Computer to Setup the Key Fob Reactor, then Let the Key Fob Reactor Work by itself without a computer.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
Time Schedule Activated Relays with Computer Interface. Use a Computer to Setup the Time Schedule.
Taralist Series Controllers do not require a computer after initial configuration.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
The MirC Product Line Consist of TWO Controllers, Offering Contact Closure Inputs in One Location that Control Relays in a Remote Location.
The Transmitter Shows the Status of the Receiver. Smart Features optionally Turn Off Remote Relay if Communications is Lost. Sold in Pairs ONLY.
The MirX Product Line Consist of TWO Controllers, Offering Contact Closures and Relays on Each Controller. The Contact Closure Inputs at Location A control Relays at Location B. The Contact Closure Inputs at Location B control Relays at Location A. Each Controller Remotely Controls the Other. Smart Features optionally Turn Off Relays if Communications is Lost between the Two Controllers. Sold in Pairs ONLY.
