Devices in Development
Sneak Peek at Upcoming Products and Their Release dates
ZETH
Expected Release June 2010
New Network Communications Modules
|
Introducing ZETH, the New Network Communications Module designed to bring Network Connectivity to NCD Devices! They May Look the Same, but we Offer Two Versions to Help meet your Network Communication Needs!

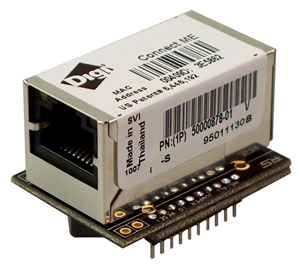

ZETH-ME
ZETH-ME uses Digi Stock Digi Connect ME firmware, providing a low-cost network communications solution to NCD Devices.
ZETH-NET
ZETH-NET uses Digi .Net Framework Communications Module Pre-Programmed with our Open-Source ProXR Server Firmware, Allowing a Web Browser to Access and Control an NCD Device from a Local Network or Anywhere in the World.
The Reactor and Key Fob series have been released and the other models will be released throughout the coming weeks.
Benefits of ZETH Interface Module
- Web-Browser Interface on ZETH-NET Module
- for direct control of relays from a web-page
- Supports:
- Virtual COM Port Ethernet Communications
- Direct TCP/IP Communications
- Direct Communication to
SignalSwitch.com
- Use Only for NCD Devices
|
|
| |
We have just taken Network Communications a Huge Step Forward
For several years now, NCD has been the Only maker of a powerful Ethernet Relay Controller, but now it's time for a New Generation of Controllers. We have just taken Network Communications a Huge Step Forward by Offering a Low-Cost and a High-Power Network Communication Solution.
Introducing ZETH; the Ethernet Network communications Module from National Control Devices. Designed to plug into NCD Surface Mount devices, two powerful Ethernet network communication options bring you device connectivity from anywhere in the world. Our first generation of Ethernet relay controllers was based on the Digi Connect ME Ethernet communications module. This is a great low-cost solution that has empowered our users since 2005, and is now repackaged into the ultra-small ZETH-ME communications module. The Digi Connect ME firmware allows you to login to the device and setup powerful network communication options. Though it does not offer a web browser interface for relay/device control, it does offer many powerful connectivity options for advanced networks at a very low cost. ZETH-ME supports Virtual COM Port Ethernet Communications, Direct TCP/IP communications, or direct communication to SignalSwitch.com. ZETH-ME is only capable of handling only one of these communication options at a time, but can easily be reconfigured if you prefer to change how you communicate.
ZETH-NET is our own breed of Ethernet communications. ZETH-NET is an Open-Source project that offers a powerful web-browser interface for direct control of relays from a web-page served directly to users from the ZETH-NET module, without the need for a server. ZETH-NET is accessible from anywhere on your local area network. If you have a static IP address, ZETH-NET is accessible from anywhere in the world. In addition to a web browser relay control interface, ZETH-NET devices also allow you to control the device from your own software through direct TCP/IP communications while still hosting a web browser interface. Write software that directly accesses the controller or access the control from your web browser. ZETH-NET also supports a simultaneous connection to SignalSwitch.com, allowing you to control the ZETH-NET from our server, your program, or your web browser...all at the same time. As an Open-Source project, you can customize the interface as needed using .NET development tools. The Open-Source project for ZETH-NET opens December, 2010.
|
|
|
|
|
|
All New MirC Controllers
Now Shipping
Contact Closure Inputs Control Contact Closure Outputs in a Remote Location
|
The MirC Series Relay Controllers are ready to go to work immediately out of the box. No Computers, No Configuration, Just Simple, Reliable Wireless Communications between two devices that permanently work together as a married pair.
MirC controllers allow contact closure inputs to control contact closure outputs in a remote location using wireless 2-way communications. The sending device is equipped with contact closure inputs, used to control relays on the remote device. Both sender and relay controller are included when you purchase a MirC pair.
The sending device is also equipped with LEDs that display the status of the remote relay. Status information is verified using 2-way wireless communications. If communication is lost between the remote relay and the sending device, the sending device will turn off the LED. Additionally, every MirC controller is equipped with a Busy/Ready LED. If the Busy LED flashes, this indicates the remote device has successfully received and accepted your contact closure status. If the Busy LED does not flash, the remote device is out of range.
MirC devices are only sold as a permanently married pair, pricing shown on our web site indicates pricing for the pair of controllers. Contact Closure Inputs may only be connected to switches, buttons, or sensors with Contact Closure capability. Not suitable for use in voltage detection applications. MirC devices use 802.15.4 two-way communications to ensure the remote device is properly functioning.
If you require relay control on both devices we offer the
MirX Series Controller. The inputs on one controller activate the relays on the remote device using wireless communications. The "X" in MirX refers to the crossover. Since both devices are equipped with contact closure inputs and relays, each device targets and controls the remote device.
MirC Series Features:
- Long Range Wireless Operation
- Sold in Pairs
- Contact Closure Inputs on Sender
- Relay Outputs on Receiver
- Sender Displays Status of Remote Relays
- 2-Way Communication with Verification
- No Configuration
- No Computers
- No Programming
|
MirC Boards will be available in 1, 2, 4, and 8 channel relays and are always sold in married pairs feature SPDT & SPST relays and are available with the same number of contact closure inputs/outputs as there are relays installed on the remote device. |
|
| |
|
TaraList Controllers
Now Shipping
Real Time Clock Control
|
| The TaraList controllers are time activated relay controllers that include a built-in clock and battery backup to allow you to set and schedule relay switching. The controller will store 999 events and each event is time activated but the computer can take control and return control when needed. For example you can set the controller to turn on at 9:00 and turn off at 9:30
Add real time clock features to any ProXR Controller with the TaraList Expansion Board. You will be able to access the real time clock scheduling feature of the TaraList by using the XR expansion port of any ProXR board.
Interfaces will include USB, ZigBee Wireless, XSC Long Range Wireless and ZB Mesh Networking. All interfaces will be available in 8,16, 24, 32, 48, 56 and 64 channel relays.
|

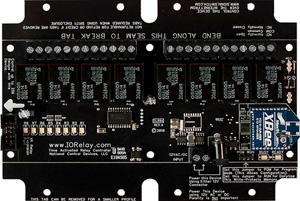

8 Channel 802.15.4
Time Activated Relay Controller |
|
|
|
TaraList Series Features:
- Built-In Real Time Clock
- Built-In Battery Backup
- Store 999 Events
- Computer Override
- Control up to 256 Relays
|
TaraList Boards will be available in 8,16, 24, 32, 48, 56 and 64 channels feature 5 and 10 amp SPDT relays. A TaraList Expansion Module will also be available to add real time clock control to any ProXR board! |
|
|
|
|
ZUSB
USB Interface Module for ZigBee & XSC Devices
Expected Release April, 2010
|

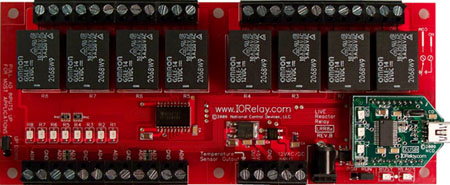

Convert any NCD ZigBee or XSC Relay Controller to a USB board. We will be offering top side and top entry version so the cable will not interfere with any existing NCD ZigBee or XSC boards. We will also be offering 1 and 2 Channel USB Relay Boards! The module will include the USB cable.
The Reactor and Key Fob series have been released and the other models will be released throughout the coming weeks.
Benefits of USB Interface Module
- Convert any ZigBee or XSC Board to USB
- Use Only for NCD Devices
- Top or Side Entry Versions
- USB Cable Included
- SignalSwitch Compatible
|

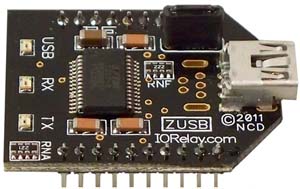

ZUSB Module with side port |
 |

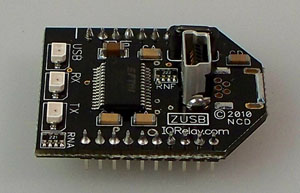

ZUSB Module with top port |
|
|
|
