National Control Devices: Motion Activated Relay or Light

Light or Button Activated Relay

Activate a Relay when it gets dark out or when you push a button

Light or Button Activated Relay Application

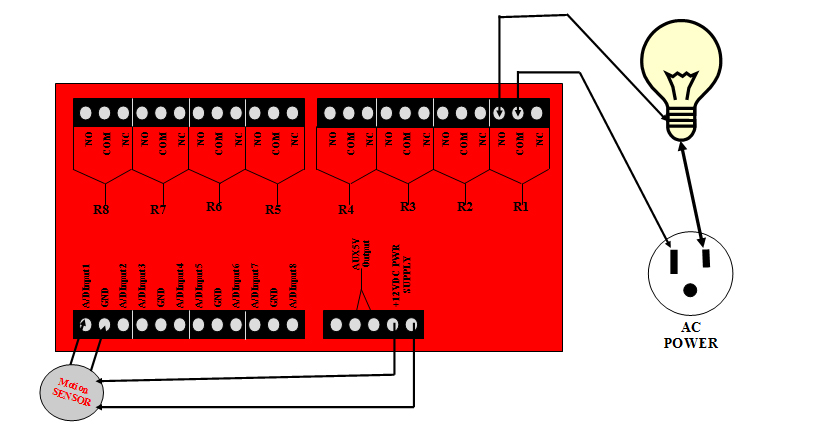

In this application we will setup a Reactor or Key Fob controller to turn a light on when it detects motion. Its a lot like the lights you can buy to put on the outside of your house, however with this setup you can tell the Reactor or Key Fob to turn the relay on for 1 minute, 30 seconds, virtually and time duration when it detects motion. You could turn on almost anything that can be controlled by a relay with this setup using a motion detector. All the products I am using are listed below along with the configuration file to load right into your controller. If you watch this video and get all the parts you need there is no thinking required! As I said this setup could be used for almost anything, your imagination is the limit.

Product Resources:

Configuration Utility	Download the NCD Configuration Utility
Download Manual	Download the Reactor Manual to learn about the Reactor Logic and Configuration
Download Configuration File	D ownload the Configuration File for this Application
Sensors and Accessories	Reactor Controllers work with Many Sensors and Switches, We are Growing our List of Sensors to Help Speed Development Time

Motion Activated Relay or Light
