NCD Engineers have developed of
a completely new generation relay controller with keychain size
Key Fob Relay Control. Users will be able to control relays
with the touch of a button you hold in your hand! Touch
a button and a command to will be sent to a Reactor Relay Series
board that has a key fob chip installed to activate a relay.
The Key Fob Relay will be compatible with relays with up to
8 channels. Each Key Fob button can be programmed to control
up to 8 relays in any number of ways. The Key Fob Relay
will also be able to provide a manual override to the Reactor
Series Relay Boards.
Not to be confused with single function low-cost solutions,
our Key Fob Reactor Relay Controllers are years ahead!
Use a button to activate a Relay, use another button to deactivate
a relay. Use another button to toggle a relay. Use
another button as a momentary switch. Key Fob Reactor
Relay Controllers allow you to configure your Key Fob Buttons
to control relays in just about any way you can think of.
The Key Fob Controller has Analog Inputs that can read switches,
resistance changes, or voltages from 0 to 5VDC. Higher
or lower voltages will damage the Reactor, so care must be taken
not to exceed these limits on the Reactor inputs. We offer
many sensors to help get
you started, including Motion Detectors, temperature sensors,
light sensors, and magnetic proximity sensors. You can
connect your own sensors to the Reactor if we don't offer what
you are looking for.
Your choice of 5 Key Fobs are available to configure to fit your needs.
Computer Controlled Switching without the Computer!
Configure this controller with a USB port with the installed USB interface
then let the controller or Key Fob control the relays.
to 8 timers and 4 rotations can be configured to control
up to 8 relays based on 8 separate analog inputs.
Programmable Trigger Points can Trigger Timers and Rotation
Counters when Analog inputs reach preconfigured levels.
Users may load and save reactor settings into individual
New Board Designs

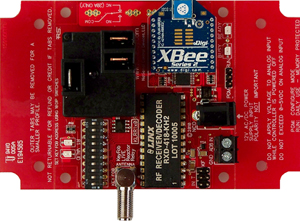

The new Key Fob Series features our new surface mount
LED lights. These lights are smaller and brighter
than previous generation lights for making relay status
easier to read at a glance. The Key Fob Relays
will also feature a new board design with Break-Away
Tabs. With the Tabs on, the board will fit into
an enclosure. If your project requires a smaller
profile without an enclosure, simply snap off the tabs
on each side for a smaller board.
Interfaces will include USB, ZigBee Wireless, XSC
Long Range Wireless and ZB Mesh Networking. All
interfaces will be available in 1Channel, 2 Channel,
4 Channel and 8 channel relays.
200 to 300 Feet of Operation
With a tiny Key Fob Remote Control, you can Take Control
of your Relays up to 3,000 Feet away using an optional
outdoor antenna. Low-cost antenna options provide
between 200 and 300 feet of reliable operation.
A single Key Fob Remote can control relays on different
Key Fob Reactor Relay Controllers. Configuration
is powerful and flexible and simple with NO PROGRAMMING
Key Fob Relay Applications Include
Garage Door Opening/Closing
Override Existing Programming
Anywhere You Need Quick On-Location Switching
Over 100 sample files will be included that demonstrate
the following features and many more:
Temperature Activated Relay
Light Activated Relay
Motion Activated Relay
Programmable Time Delay Relay
Motion Activate Sequence of Driveway Lights
Programmable Watchdog Timer Relay
Relay Background Flashing
Input Triggers Complex Relay Timing Sequence
Using Multiple Rotations
Push Button On/Off Relay Control
Push Button Triggers Flashing Relay
Push Button Triggers/Cancels Relay Timer Sequence
8-Way Light Switch (8 Light Switches Control
More than 100 Example Configuration
Files to be Included!
Put the Power of Computer Controlled Switching in Your
When used in conjunction with our Reactor Relay Series onboard
timers, a relay can be activated by the Key Fob to turn on,
such as opening a garage door. The timer can then be set
to automatically switch the relay again. With the example
of the garage door, the door would then automatically shut after
a predetermined time. This is just one simple example
of the many uses that you can customize to meet your specific
New to Reactor Relay? Click the following links for
helpful wireless articles to get you started.
