Automatic Timed Garage Door Closer Application

Use a Reactor or Key Fob to automatically shut your Garage door.

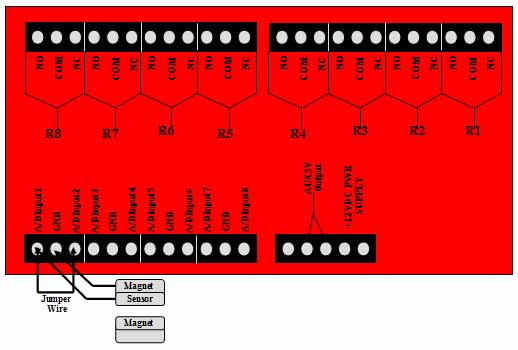

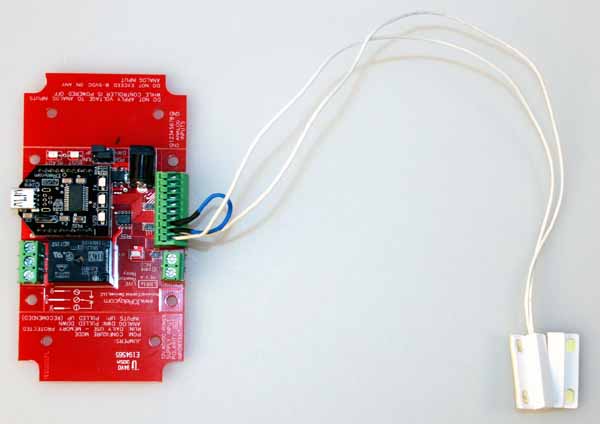

Automatic Garage Door Closer

In this Application we will show you how to use any Key Fob or Reactor controller to close your garage door automatically. Have you ever left the house early in the morning for work, then half way there it hits you, "I left the garage door open!"So you say a few choice words and turn around to close the door. Wouldn't it be nice if your garage door closed by itself after a specified amount of time. Well that's what we are going to do in this application. We will use a magnet controlled relay to do it. It could also be called a time delay relay. This will be very simple. It only requires one relay on a Reactor or Key Fob controller, two inputs, two timers, and a Magnetic Sensor. I will walk you through the process step by step in the Video and then we will show you the setup working in a real life application. So if you're ready lets get started.

Product Resources:

Configuration Utility	Download the NCD Configuration Utility
Download Manual	Download the Reactor Manual to learn about the Reactor Logic and Configuration
Download Configuration File	D ownload the Configuration File for this Application
Sensors and Accessories	Reactor Controllers work with Many Sensors and Switches, We are Growing our List of Sensors to Help Speed Development Time

Garage Door Application

Displaying 1 - 4 of 4 Products in this Category.

Display Page: ( 1 )

CKN6004

Magnetic Detection Switch SPST Panel Mount with Magnet

Learn More

$11.99/ea

GARAGE_DOOR

Automatic Garage Door Closer Package

Learn More

$149.10/ea

LRR15_USB

1 Relays
5 Amp SPDT
USB Communication
Ideal Use: Power Switching
Reactor Series
Learn More

$114.00/ea

TS-200

24 AWG-300 Volt 200mm Jumper Wire Reinforced Pin Ends 10-Pack, 2-Yellow, 2-White, 2-Red, 2-Black, 2-

Learn More

$6.96/ea
