Time Activated Relay 16 Channel with Ethernet Interface
Ethernet Time Controlled Relays
All The Features You Need...
- 16 Relays Installed on Circuit Board
- Control Relays based on Time Schedule
- Accurate Machine-Manufactured Design
- Onboard Ethernet Interface Module
- Plugs Directly into Router
- Network Communication Options:
- Virtual COM Port over Ethernet
- Direct TCP/IP Communications
- Supports DHCP
- Supports Fixed IP Address
- Supports Daylight Savings Time
- Sync Time with PC or Manually Set Time
- Base Station Software
- Point & Click Interface
- Use to Configure Time Schedule
- Manually Trigger Relays

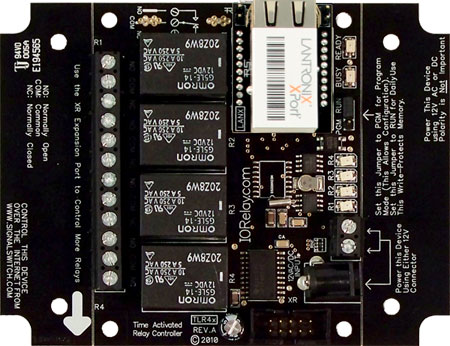

Ethernet Time Activated Relay
Our Time Relays are equipped with firmware built into the board that will allow you to
setup a time schedule to trigger relays. The Time Relay series has an integrated Real Time Clock to control relays based on a
time schedule (the board knows what day & time it is). Connect these controllers to the serial port of your computer to
setup the time schedule & upload it to the board. Once stored, the computer is no longer needs, and the relays will activate
according to your schedule that can be as simple or as complex as your application requires.
Set Time Schedule to Trigger Relays
Time Schedule Control
Events are scheduled times when a relay or group of relays are turned on or off. They are defined by the user first by time:
Year, Month, Day of Month, Day of week, Hour, Minute, and Second. You have the ability of switching
relays on or off at very specific times. You can add up to 1000 Events to the list.
Time Relay - Without Having to Learn Programming
16-Channel Time Activated Relays can trigger
relays according to a time schedule!
Time Activated Relay You Can Count On!
- Time Activated Relay
- Onboard Ethernet Interface
- Built-In Working Web Pages
- Manually override time settings
- Page for turning relays on/off
- Plus Many More!
Selecting The Ethernet Interface
selecting the Ethernet interface you will be uploading the time schedule to the board through your local area network or internet. Boards on this page are equipped with a
Lantronix communications module that adds Ethernet communications to the board. The board will plug directly into your router where it is assigned
an IP address. Once the IP address has been assigned the board can be discovered on the network using the included Base Station
software. Using Base Station you can configure your time schedule and upload it to the board.
Selecting an Ethernet Relay Board
Below you will find the 4-channel Time Activated Ethernet Relays that are available. The difference being the amperage of the relays
installed and the type of relay. Choose the controller that fits the amperage you are switching. You will find SPDT relays
in the 5, 10 and 20 amp versions and an SPST version in 30 amp. A solid state version is also available. For more information on selecting the correct relay for your application see
Choosing a Proper Amperage
Easy Board Selection
Shop Time Relays Here
TaraList: Time Controlled Relays
Time Schedule Activated Relays with
Computer Interface. Use a Computer to Setup the Time Schedule.
Taralist Series Controllers do not require a computer after initial
Manually Take Control of Relays from Anywhere in the World using a Computer as
Find the board you need by using the interactive menu to he right. Hover
over the Button and select the number of relays you want installed and then
select the computer interface you need. Once there simply select the board with
the correct amperage for the item you are switching.
Ethernet Time Controlled Relays
Displaying 1 - 2 of 2 Products in this Category.
