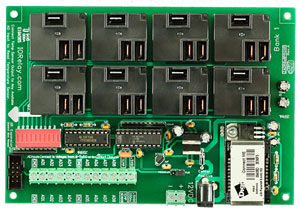

Ethernet Relay - 8 Channel
ProXR Ethernet Relays
Ethernet Relay
Control with Ethernet Interface
Ethernet Relay will Allow Computer Controlled Switching from Any Computer Connected to a 10/100 Ethernet Network. The Ethernet Relay Board Connects to the Ethernet Port of your Local Network Hub, Allowing Computer Controlled Switching from Anywhere on the Network.
Ethernet Relay Options
Ethernet Relays are available with SPDT 5, 10 and 20 amp, SPST 30 amp and DPDT 1, 3 & 5 amp relays installed.8 Channel Ethernet Relay Features
- 8 Relays Installed
- Embedded WiFi over 802.11b/g
- Supports Direct TCP/IP Communications
- Includes Extensive Network Configuration Options
- Supports Fixed IP Address
- Password Protection
- Expandable to 256 Relays
- 16 User-Programmable Timers
The 8 Channel Relay will allow computer controlled switching from any computer connected to a 10/100 Ethernet network.
Also Available:
Web Controlled Relay
Relay Control From Anywhere
 More Information: Web Relay |
|
Ethernet Relay
Virtual COM Port Drivers Map a Network IP Address to a COM Port
Easy Programming From any Language That Supports Serial Communications
Ethernet Relay with the Industry Leading Command Set
Ethernet Relay Software Development
The Digi Connect ME firmware is built into the Ethernet module allowing you to login to the device and access powerful network communication options. Though it does not offer a web browser interface (this feature can be found on the Web Relay models), it does offer many powerful connectivity options for advanced networks. ME firmware supports Virtual COM Port Ethernet Communications, Direct TCP/IP communications, or direct communication to SignalSwitch.com. ME firmware is only capable of handling only one of these communication options at a time, but can easily be reconfigured if you prefer to change how you communicate.Ethernet Relay for Advanced Users
Advanced users may want to employ other communication protocols to speak the the Ethernet Relay Controller. NCD Ethernet Relay Controllers can also be controlled using Telnet. I.P. Addresses and are automatically or manually assigned. NCD Ethernet Relay Controllers also support security protocols such as Shared Key, WEP, WPA, and Cisco LEAP with support for WEP, TKIP, and CCMP data encryption.ProXR Ethernet Relays
Displaying 1 - 18 of 18 Products in this Category.Display Page: ( 1 )
ZADR810ProXR_ETHERNET
- 8 路继电器
- 10 安培 SPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- 8 A/D 输入
- XR 扩展接口
- 更多内容
ZADR810ProXR_ETHERNET: $269.00/ea
ZADR81DPDTProXR_ETHERNET
- 8 路继电器
- 1 安培 DPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- 8 A/D 输入
- XR 扩展接口
- 更多内容
ZADR81DPDTProXR_ETHERNET: $250.00/ea
ZADR820ProXR_ETHERNET
- 8 路继电器
- 20 安培 SPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- 8 A/D 输入
- XR 扩展接口
- 更多内容
ZADR820ProXR_ETHERNET: $219.00/ea
ZADR830ProXR_ETHERNET
- 8 路继电器
- 30 安培 SPST
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- 8 A/D 输入
- XR 扩展接口
- 更多内容
ZADR830ProXR_ETHERNET: $359.00/ea
ZADR83DPDTProXR_ETHERNET
- 8 路继电器
- 3 安培 DPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- 8 A/D 输入
- XR 扩展接口
- 更多内容
ZADR83DPDTProXR_ETHERNET: $270.00/ea
ZADR85DPDTProXR_ETHERNET
- 8 路继电器
- 5 安培 DPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- 8 A/D 输入
- XR 扩展接口
- 更多内容
ZADR85DPDTProXR_ETHERNET: $290.00/ea
ZADR85ProXR_ETHERNET
- 8 路继电器
- 5 安培 SPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- 8 A/D 输入
- XR 扩展接口
- 更多内容
ZADR85ProXR_ETHERNET: $249.00/ea
ZADSSR8xProXR_ETHERNET
- 8 路继电器
- Variable 安培 Solid State
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- 8 A/D 输入
- XR 扩展接口
- 更多内容
ZADSSR8xProXR_ETHERNET: $249.00/ea
ZADSSR8xProXR_ETHERNET_MIX
- 8 路继电器
- Variable 安培 Solid State
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- 8 A/D 输入
- XR 扩展接口
- 更多内容
ZADSSR8xProXR_ETHERNET_MIX: $249.00/ea
ZUXPR810PROXR_ETHERNET
- 8 路继电器
- 10 安培 SPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- XR 和 UXP 扩展接口 扩展接口
- 更多内容
ZUXPR810PROXR_ETHERNET: $269.00/ea
ZUXPR81DPDTPROXR_ETHERNET
- 8 路继电器
- 1 安培 DPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- XR 和 UXP 扩展接口 扩展接口
- 更多内容
ZUXPR81DPDTPROXR_ETHERNET: $250.00/ea
ZUXPR820PROXR_ETHERNET
- 8 路继电器
- 20 安培 SPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- XR 和 UXP 扩展接口 扩展接口
- 更多内容
ZUXPR820PROXR_ETHERNET: $319.00/ea
ZUXPR830PROXR_ETHERNET
- 8 路继电器
- 30 安培 SPST
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- XR 和 UXP 扩展接口 扩展接口
- 更多内容
ZUXPR830PROXR_ETHERNET: $359.00/ea
ZUXPR83DPDTPROXR_ETHERNET
- 8 路继电器
- 3 安培 DPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- XR 和 UXP 扩展接口 扩展接口
- 更多内容
ZUXPR83DPDTPROXR_ETHERNET: $270.00/ea
ZUXPR85DPDTPROXR_ETHERNET
- 8 路继电器
- 5 安培 DPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- XR 和 UXP 扩展接口 扩展接口
- 更多内容
ZUXPR85DPDTPROXR_ETHERNET: $290.00/ea
ZUXPR85PROXR_ETHERNET
- 8 路继电器
- 5 安培 SPDT
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- XR 和 UXP 扩展接口 扩展接口
- 更多内容
ZUXPR85PROXR_ETHERNET: $249.00/ea
ZUXPSSR8xProXR_ETHERNET
- 8 路继电器
- Variable 安培 Solid State
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- XR 和 UXP 扩展接口 扩展接口
- 更多内容
ZUXPSSR8xProXR_ETHERNET: $249.00/ea
ZUXPSSR8xProXR_ETHERNET_MIX
- 8 路继电器
- Variable 安培 Solid State
- Ethernet 通讯
- 用途: Power 开关
- ProXR 系列
- XR 和 UXP 扩展接口 扩展接口
- 更多内容
ZUXPSSR8xProXR_ETHERNET_MIX: $249.00/ea
Display Page: ( 1 )
| Find the board you need by using the interactive menu to he right. Hover over the Button and select the number of relays you want installed. Once there simply select the board with the correct amperage for the item you are switching. |
