Time Activated Relay using Integrated Real Time Clock
The Taralist series Time Activated Relay Controllers are unlike any other relay timer in the world. The Taralist series have an integrated battery backed Real Time Clock with memory that allows users to control relays based on a time schedule. Use your computer to setup the time schedule and store your schedule into the Taralist controller. Once stored, the Taralist does not require a computer, and will activate relays according to a schedule that can be as simple or as complex as your application requires.
The Taralist can be configured with a new time schedule after installation using wireless communications to your computer. Optionally, the Taralist may be configured using the USB port of your computer (you may change or upgrade communication modules at any time).
We have developed a powerful matching algorithm that allows you to control relays when your time schedule matches the current year, month, day of week, calendar day, or Hour/Minute/Second. Activate relays only when the day is Monday, activate relays when the day is Monday and the Year is 2020, activate relays when the day is Monday, the year is 2020 at 9:44:21 AM. The Tara list controller stores 2000 events (our software is currently limited to 999 events) and controls up 256 relays.
Battery Backed Clock Keeps Time when Powered Down!
The Midnight Backup Buffer is a special feature we developed to help keep track of which relays should be activated in the event power is lost. Every night at midnight, the current status of all relays is stored in non-volatile memory. If power is lost, the Taralist will load the status of the relays from memory. Time schedule events cannot be processed without power, battery backup is used to keep time only.
The Taralist Relay has a battery backup so it will always keep track of the time. The Taralise Relay will calculate relay status from midnight to the current time on boot up and be running the correct schedule for what time it is on boot-up.
Up to 2000 events can be scheduled into the controller although our software is currently limited to 999 events.
Taralist controllers allow you to build and save your time schedule as a file on your computer, you can comment your schedule and control which events are active and inactive. We encourage you to keep your schedule file in a safe place. Once you have perfected your file, you can store the time schedule into as many Taralist controllers as you could ever need
New Board Designs

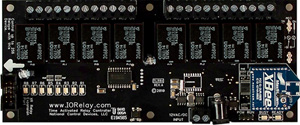

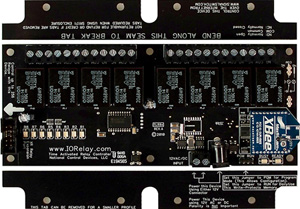

The new Taralist Relay features our new surface mount LED lights. These lights are smaller and brighter than previous generation lights for making relay status easier to read at a glance. The Taralist Relays will also feature a new board design with Break-Away Tabs. With the Tabs on, the board will fit into an enclosure. If your project requires a smaller profile without an enclosure, simply snap off the tabs on each side for a smaller board.

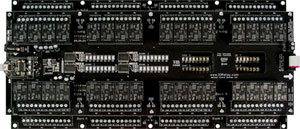

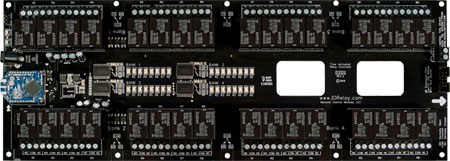

Interfaces will include USB, ZigBee Wireless, XSC Long Range Wireless and ZB Mesh Networking. All interfaces will be available in 8 Channel, 32 Channel and 64 channel relays.
Time Activated Relay is here!
A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a lists of great features:
User Friendly Board Design Board
Surface mount allows for a smaller board
Break-A-Way Tabs lets you decide the board's size
Interchangeable interfaces allows you to upgrade or change your interface at any time
Added Features
Battery backed clock keeps time when powered down
Control relays based on time schedule loaded into controller
Store schedules wirelessly AFTER installation or using
the USB port
Calculates relay status from midnight to the current time
on boot up
Supports daylight savings time with programmable schedule
Our Taralist Relays feature
SPDT & SPST relays and are available with up to 64 configurable channels. All are of course
SignalSwitch compatible.
For more detailed information, video, manuals and to order, please click on the links below.
Articles
New to Taralist Relay? Click the following links for helpful wireless articles to get you started
The ProXR Series Controller allow computers to read contact closure inputs, analog to digital converters and control up to 256 Relays using a single computer interface. ProXR series controllers focus on expansion for industrial control applications.
The ProXR Lite product line allows computers to read up to 8 analog inputs and control up to 8 relays.
Non-Expandable, the ProXR Lite Product Line focuses on interchangeable Computer Interface Modules and Low Cost
Focusing on Cost Reduction and High Volume Manufacturing, the Low Cost Series are No-Frills Relay Controllers that offer Basic Computer Control at Low Communications Speed.
Android Relays use wireless and internet technologies to communicate with your android smart phone or tablet through free apps available on Google Play. More Coming Soon
Activate Relays when Sensors Reach Limits. Trigger Timers, Counters, and Events.
Use a Computer to Setup the Reactor, then Let the Reactor Work by itself without a computer.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
Activate Relays with a Remote Control Key Fob. Trigger Timers, Counters, and Events.
Use a Computer to Setup the Key Fob Reactor, then Let the Key Fob Reactor Work by itself without a computer.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
Time Schedule Activated Relays with Computer Interface. Use a Computer to Setup the Time Schedule.
Taralist Series Controllers do not require a computer after initial configuration.
Manually Take Control of Relays from Anywhere in the World using a Computer as needed.
The MirC Product Line Consist of TWO Controllers, Offering Contact Closure Inputs in One Location that Control Relays in a Remote Location.
The Transmitter Shows the Status of the Receiver. Smart Features optionally Turn Off Remote Relay if Communications is Lost. Sold in Pairs ONLY.
The MirX Product Line Consist of TWO Controllers, Offering Contact Closures and Relays on Each Controller. The Contact Closure Inputs at Location A control Relays at Location B. The Contact Closure Inputs at Location B control Relays at Location A. Each Controller Remotely Controls the Other. Smart Features optionally Turn Off Relays if Communications is Lost between the Two Controllers. Sold in Pairs ONLY.
