2 Channel MirX Wireless Relay Controller Pair

No Computers, No Configuration, Works Right out of the Box

Every MirX controller is equipped with contact closure inputs and outputs. The inputs on one controller activate the relays on the remote device using wireless communications. The "X" in MirX refers to the crossover. Since both devices are equipped with contact closure inputs and relays, each device targets and controls the remote device.

Every MirX controller is equipped with a Busy/Ready LED. If the Busy LED flashes, this indicates the remote device has successfully received and accepted your contact closure status. If the Busy LED does not flash, the remote device is out of range.

MirX devices are only sold as a permanently married pair, pricing shown on our web site indicates pricing for the pair of controllers. Contact Closure Inputs may only be connected to switches, buttons, or sensors with Contact Closure capability. Not suitable for use in voltage detection applications.

The MirX Series Relay Controllers are ready to go to work immediately out of the box. No Computers, No Configuration, Just Simple, Reliable Wireless Communications between two devices that permanently work together
as a married pair.

MirX devices use 802.15.4 two-way communications to ensure the remote device is properly functioning. The Busy LED is always used to indicate a properly functioning remote device. If you do not see the Busy LED flash, then the MirX controller is unable to communicate to the remote device. A flashing busy LED is your verification that all communications are functioning properly between MirX controllers. Customers who require inductive switching (such as motors, lights, pumps, solenoids, and Transformers) should visit the Induction Suppression portion of our web site. Control a Switch From a Distant Location MirX-MXNET controllers provide you with an easy way to control a switch from a distant location using the Internet or LAN communications. MirX-MXNET controllers use a very sophisticated program to find each other no matter where they are in the entire world. They are permanently married together, and no matter how far apart they may be, they will always try to stay in communication with each other. Look for MXNET in the part number for the Ethernet MXNET versions. MirX-MXNET controllers are sold in pairs. Each MirX-MXNET controller has inputs and relays. One MirX-MXNET controller is installed locally while the other MirX-MXNET controller is installed remotely. The inputs on the local MirX-MXNET controller control the relays at the remote MirX-MXNET controller. The inputs on the remotely located MirX-MXNET controller control the relays on the local MirX-MXNET controller. MirX-MXNET controllers have one or more Contact Closure Inputs and one or more Contact Closure outputs. Using this system, it is possible to install a light switch at your house that controls a light in China. Similarly, a light switch in China can control the lights at your house... and we have actually been testing this exact configuration for the past year as we have developed the firmware built into the MirX-MXNET controller. New Board Designs The new Reactor Relay Series features our new surface mount LED lights. These lights are smaller and brighter than previous generation lights for making relay status easier to read at a glance. The Reactor Relays will also feature a new board design with Break-Away Tabs. With the Tabs on, the board will fit into an enclosure. If your project requires a smaller profile without an enclosure, simply snap off the tabs on each side for a smaller board. Interfaces between the tow devices will be 802.15.4 or Ethernet and the communication between the two devices permanently work together as a married pair.	MirX Series Features: Sold in Pairs Contact Closure Inputs and Outputs at Each Location Each Device Controls the Other Device Local Inputs Control Remote Relays Remote Inputs Control Local Relays 2-Way Communication with Verification No Configuration No Computers No Programming Beacon Mode for Range Testing Smart Mode for Fast, Low Power Operation
	2 Channel MirX Relay with Break-Away Tabs

	2 Channel MirX Relay with Tabs Broken Out

	2 Channel MirX Relay Without Break-Away Tabs

Articles

New to MirX Controllers? Click the following links for helpful wireless articles to get you started.

Article on MirX Series

Shop Other Channels

1 Channel MirX Relays
- MirX Series with 1 Relay Installed
2 Channel MirX Relays
- MirX Series with 2 Relays Installed
4 Channel MirX Relays
- MirX Series with 4 Relays Installed
8 Channel MirX Relays
- MirX Series with 8 Relays Installed

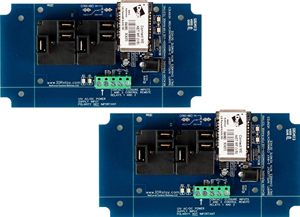

2 Channel MirX Relay Controller Pair

Our 2 Channel MirX Relays are always sold in married pairs and feature SPDT & SPST relays and are available with two contact closure inputs on each board. The MirX Series Relay Controllers are ready to go to work immediately out of the box. No Computers, No Configuration, Just Simple, Reliable 802.15.4 Wireless Communications between two devices that permanently work together as a married pair. You can also choose the MXNET version that will give you reliable communications through the internet anywhere in the world.
For more detailed information, video, manuals and to order, please click on the links below.

Video Resources
(Select a thumbnail to view the video)

MirX Controllers
Learn how NCD MirX Series Controllers Work

Learn how NCD MirX Series Controllers Work

2-Channel MirX Relays

Displaying 1 - 20 of 20 Products in this Category.

Display Page: ( 1 )

MirXR210

2 Relays
10 Amp SPDT
Range: 300 ft. to 15 mi.
Ideal Use: Power Switching
MirX Series
Learn More

$206.00/ea

MirXR210_MXNET

2 Relays
10 Amp SPDT
Web Communication
Ideal Use: Power Switching
MXNET Series
Learn More

$368.00/ea

MirXR210_MXNET_WIFI

2 Relays
10 Amp SPDT
WiFi Communication
Range: 300 ft.
Ideal Use: Power Switching
MXNET Series
Learn More

$506.00/ea

MirXR210_ZBT

2 Relays
10 Amp SPDT
Bluetooth Communication
Ideal Use: Power Switching
MirX Series
Learn More

$318.00/ea

MirXR210_ZRS

2 Relays
10 Amp SPDT
Serial Communication
Ideal Use: Power Switching
MirX Series
Learn More

$226.00/ea

MirXR220

2 Relays
20 Amp SPDT
Range: 300 ft. to 15 mi.
Ideal Use: Power Switching
MirX Series
Learn More

$226.00/ea

MirXR220_MXNET

2 Relays
20 Amp SPDT
Web Communication
Ideal Use: Power Switching
MXNET Series
Learn More

$388.00/ea

MirXR220_MXNET_WIFI

2 Relays
20 Amp SPDT
WiFi Communication
Range: 300 ft.
Ideal Use: Power Switching
MXNET Series
Learn More

$526.00/ea

MirXR220_ZBT

2 Relays
20 Amp SPDT
Bluetooth Communication
Ideal Use: Power Switching
MirX Series
Learn More

$338.00/ea

MirXR220_ZRS

2 Relays
20 Amp SPDT
Serial Communication
Ideal Use: Power Switching
MirX Series
Learn More

$246.00/ea

MirXR230

2 Relays
30 Amp SPST
Range: 300 ft. to 15 mi.
Ideal Use: Power Switching
MirX Series
Learn More

$246.00/ea

MirXR230_MXNET

2 Relays
30 Amp SPST
Web Communication
Ideal Use: Power Switching
MXNET Series
Learn More

$408.00/ea

MirXR230_MXNET_WIFI

2 Relays
30 Amp SPST
WiFi Communication
Range: 300 ft.
Ideal Use: Power Switching
MXNET Series
Learn More

$546.00/ea

MirXR230_ZBT

2 Relays
30 Amp SPST
Bluetooth Communication
Ideal Use: Power Switching
MirX Series
Learn More

$358.00/ea

MirXR230_ZRS

2 Relays
30 Amp SPST
Serial Communication
Ideal Use: Power Switching
MirX Series
Learn More

$266.00/ea

MirXR25

2 Relays
5 Amp SPDT
Range: 300 ft. to 15 mi.
Ideal Use: Power Switching
MirX Series
Learn More

$186.00/ea

MirXR25_MXNET

2 Relays
5 Amp SPDT
Web Communication
Ideal Use: Power Switching
MXNET Series
Learn More

$348.00/ea

MirXR25_MXNET_WIFI

2 Relays
5 Amp SPDT
WiFi Communication
Range: 300 ft.
Ideal Use: Power Switching
MXNET Series
Learn More

$486.00/ea

MirXR25_ZBT

2 Relays
5 Amp SPDT
Bluetooth Communication
Ideal Use: Power Switching
MirX Series
Learn More

$298.00/ea

MirXR25_ZRS

2 Relays
5 Amp SPDT
Serial Communication
Ideal Use: Power Switching
MirX Series
Learn More

$206.00/ea

Display Page: ( 1 )
