2 Channel IEEE 802.15.4 Relay

2 Channel IEEE 802.15.4 Wireless Relay

Wireless IEEE 802.15.4 Relay Controller
2 Channel IEEE 802.15.4 Relay Controllers offer Standardized Low-Cost, Wireless 2-Way Communications, Offering Excellent Communication Range and Reliability. IEEE 802.15.4 Relay Controllers allow you to speak to a NCD Device using standard Serial Communication as though the device were directly connected to the COM port of your computer. Serial commands are automatically forwarded to IEEE 802.15.4 devices within range.

Our IEEE 802.15.4 Boards Provide Reliable, Low-Cost Solution to your Wireless Relay Needs.

RoHS Option Available

The IEEE 802.15.4 Interface on this ZR110 board allows for highly reliable Wireless Relay Control.

Summary of 2 Channel IEEE 802.15.4 Boards

Wireless USB Interface Mounts as a Virtual COM Port on your PC for Easy Programming and 100% Compatibility Across ALL Operating Systems
Low-Cost IEEE 802.15.4 Wireless Configuration
2-Way Communications
Plug In, Open the Virtual COM Port and Start Sending Commands
Relay Status LEDs
Convenient Terminal Blocks for easy electronic connections
RoHS option available
SignalSwitch Compatible

2 Channel IEEE 802.15.4 Relay

2 Channel IEEE 802.15.4 Relay Boards feature your choice of a 5, 10 or 20 amp SPDT relay or a 30 amp SPST relay installed. Also available are 1, 3 and 5 amp DPDT versions as well. All two Channel IEEE 802.15.4 Relays are Signal Switch Compatible and are compatible with select NCD Component Library samples.

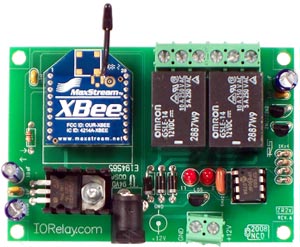

ZR110 IEEE 802.15.4 Relay

Articles

New to IEEE 802.15.4 Wireless Relay? Click the following links for helpful wireless articles to get you started.

NCD Component Library

Download NCD Component Library

By downloading the NCD Component Library you will receive over 40 samples from A/D Conversion to Duration and Pulse Timing and best of all it's FREE!! We want the user to be able to experiment with all the different samples available so as of right now the samples cannot be downloaded individually.

We've "Started" the Programming for You

With the NCD Component Library we've "started" the programming for you. We say started because these are fully functioning samples but we've also included the source code so you can customize them to your exact needs. Start by downloading the NCDComponentSetup.zip file from the NCD Component page.

Download NCD Component Library

Over 40 samples included with this download! To view screen shots of each example visit our NCD Component Library Page.

ZigBee Intro

Learn about the ZigBee Wireless Communications and how it stacks up to other Wireless Communication Protocols we use

ZigBee Setup

Watch as we show you how to Set Up the Hardware and the Software necessary to use your Controller

ZigBee Troubleshooting

Learn how to Troubleshoot your ZigBee Relay Controllers using the XCTU Software

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Intro to Wireless Communications

Learn the basics of wireless communications and find the right wireless controller for your application

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

Introduction to A/D

Learn about Analog to Digital Conversion and its uses

How to Find the Com Port

Learn how to find the Com Port that your Device is using

About Expansion Ports

Learn about the Expansion Options available to use with our controllers

This video will introduce you to the world of ZigBee Communications and show you how we integrate ZigBee into our boards.
Also read our Article on ZigBee Communications.

This video will show you how to set up both the hardware and software portions of your ZigBee Relay Controller.
Also read our Article on ZigBee Communications.

This movie will show you how to Troubleshoot your ZigBee Relay Controllers using XCTU Software.
Also read our Article on ZigBee Networking.

This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.

Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.

This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.

Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.

This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.

This movie will explain the different expansion options that can be used with our controllers.

2 Channel IEEE 802.15.4 Relay Controllers

Displaying 1 - 22 of 22 Products in this Category.

Display Page: ( 1 )

KLRR210_802154

2 Relays
10 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Key-Fob Series
Learn More

$166.00/ea

KLRR220_802154

2 Relays
20 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Key-Fob Series
Learn More

$176.00/ea

KLRR230_802154

2 Relays
30 Amp SPST
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Key-Fob Series
Learn More

$186.00/ea

KLRR25_802154

2 Relays
5 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Key-Fob Series
Learn More

$156.00/ea

LRR210_802154

2 Relays
10 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Reactor Series
Learn More

$128.00/ea

LRR220_802154

2 Relays
20 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Reactor Series
Learn More

$138.00/ea

LRR230_802154

2 Relays
30 Amp SPST
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Reactor Series
Learn More

$148.00/ea

LRR25_802154

2 Relays
5 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Reactor Series
Learn More

$118.00/ea

LRSSR2x_802154

2 Relays
Optional Amp Solid-State
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
Reactor Series
Learn More

$188.00/ea

LRSSR2x_802154_MIX

2 Relays
Optional Amp Solid-State
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: SS Switching
Reactor Series
Learn More

$118.00/ea

R210PL_802154

2 Relays
10 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
ProXR-Lite Series
Learn More

$103.00/ea

R220PL_802154

2 Relays
20 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
ProXR-Lite Series
Learn More

$113.00/ea

R230PL_802154

2 Relays
30 Amp SPST
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
ProXR-Lite Series
Learn More

$123.00/ea

R25PL_802154

2 Relays
5 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
ProXR-Lite Series
Learn More

$93.00/ea

TLR210_802154

2 Relays
10 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Taralist Series
Learn More

$203.00/ea

TLR220_802154

2 Relays
20 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Taralist Series
Learn More

$213.00/ea

TLR230_802154

2 Relays
30 Amp SPST
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Taralist Series
Learn More

$223.00/ea

TLR2410_802154

24 Relays
10 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Taralist Series
Learn More

$543.00/ea

TLR245_802154

24 Relays
5 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Taralist Series
Learn More

$483.00/ea

TLR25_802154

2 Relays
5 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
Taralist Series
Learn More

$193.00/ea

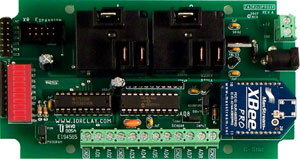

ZADR220PROXR_802154

2 Relays
20 Amp SPDT
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
ProXR Series
8 A/D Inputs
XR Expansion Port
Learn More

$139.00/ea

ZADR230PROXR_802154

2 Relays
30 Amp SPST
802.15.4 Communication
Range: 300 ft. to 1 mi.
Ideal Use: Power Switching
ProXR Series
8 A/D Inputs
XR Expansion Port
Learn More

$149.00/ea

Display Page: ( 1 )

802.15.4 Modems

Plug In, Open the COM Port and Start Sending Commands

Here's how it works

Plug the 802.15.4 Modem into your computer and install the drivers. The 802.15.4 modem will mount as a COM port on your PC. Next, talk to the COM port as though you were communicating with a RS-232 serial device that is directly connected to your PC. That's all there is to it!!!

802.15.4 Modems offer wireless 2-way communications, compatible with any 802.15.4 device or network. This device is Powered by the USB Port. The includes USB Cable and Enclosure.

Modem at a Glance

Mounts as a Virtual COM Port
Plug In, Open the COM Port and Start Sending Commands
Programmable Baud Rate
Compatible with All 802.15.4 Devices
LED Status Lights Indicate Communication
USB Powered

More Information >

UMXB24-AUI_ZIGMO

USB 802.15.4 Modem
1mw 300' Range External Antenna
Includes USB Cable/Enclosure
LED Status Lights Indicate Communication
Learn More

UMXB24-AUI_ZIGMO: 119.00/ea

UMXB24P-AUI_ZIGMO

USB 802.15.4 Modem
100mw Long Range External Antenna
Includes USB Cable/Enclosure
LED Status Lights Indicate Communication
Learn More

UMXB24P-AUI_ZIGMO: 138.00/ea
