802.15.4 Relay - ProXR

Wireless ProXR 802.15.4 Relays

802154 Relay


All The Features You Need...

  • Reliable Sturdy Design
  • Onboard 802.15.4 Interface Module
      - Requires 802.15.4 Modem
  • Modem Mounts as a Virtual COM Port on Computer
  • Read 0 to 5 Volt Sensors
  • Base Station Software gets you up an running fast
  • Highly reliable with industry leading command set
  • Program in almost any language
  • ProXR Versions Expandable to 256 Relays
  • 16 Background Timers Available

802.154. Relay
Wireless Control up to 1 Mile

802.15.4 Relays offer excellent speed, and reliability with minimal integration time with a standard range of 300' and an extended range option of 1 mile.  This wireless Relay uses an 802.15.4 wireless modem (available at checkout) connected to the USB port of your computer to communicate.  The modem supports any available COM port at any standard baud rate, allowing easy integration into any program that support serial communications.

Wireless Relay Options

802.15.4 Relays are available with SPDT 5, 10 and 20 amp, SPST 30 amp and DPDT 1, 3 & 5 amp relays installed.

Wireless Results - Without Having to Learn a Wireless Protocol
These 32-Channel Relays can wirelessly trigger relays up to 1 miles from a modem connected to the USB port of your PC!
Wireless Relay,
by simply sending commands to your USB port!

Also Available:

Long Range Wireless

2-Mile Standard Range

Wireless Relay - Long Range

More Information: XSC Relay
  • Reliable 2 mile standard module
      - Up to 15 mile available
  • Onboard XSC interface module
      - requires XSC modem
  • Line of Sight Operation

Wireless Relay Control

Easy Programming in Almost Any Language
Base Station Software Gets You Up And Running Fast
Wireless Relay Control with the Industry Leading Command Set

Selecting The Wireless Interface

By selecting the 802.15.4 interface you will be sending commands through a modem connected to the USB port of your computer.  Boards on this page are equipped with a 802.15.4 communications module that adds long range wireless communications to the board.

Selecting an Wireless Relay Board

Below you will find all the 32-channel 802.15.4 ProXR baords that are available.  The difference being the amperage of the relay and the type of relay installed.  Choose the controller that fits the amperage you are switching.  You will find SPDT relays in the 5, 10 and 20 amp versions and an SPST version in the 30 amp version.  For more information on selecting the correct relay for your application see Choosing a Proper Amperage.

Selecting an Antenna

The Standard Range Antenna with a distance of 300' is included with the price of the controller.  If you are looking for longer distances a 1 mile range option is available at checkout.

Selecting a Wireless Relay Series

The Relay boards are available in the ProXR Lite and ProXR versions, this page is the ProXR versions. Both versions have the same firmware installed and accept the same ProXR command set, the industry leading command set for controlling relays.  The ProXR Lite version is non-expandable, the ProXR version is expandable to 256 relays.  When you find your controller click on the Full Description link to view full specs, watch setup videos, download software and purchase.


Wireless ProXR 802.15.4 Relays

Displaying 1 - 14 of 14 Products in this Category.
Sort By:

Display Page:     ( 1 )

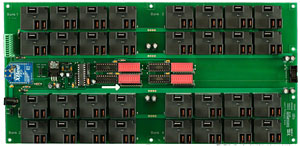

ZADR3220PROXR_802154
802.15.4 Wireless Relay Controller 32-Channel 20 Amp SPDT + 8-Channel 8/10-Bit A/D
  • 32 Relays - 20 Amp SPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Power Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $849.00               Full Description
ZADR3230PROXR_802154
802.15.4 Wireless Relay Controller 32-Channel 30 Amp SPST + 8-Channel 8/10-Bit A/D
  • 32 Relays - 30 Amp SPST
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Power Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $980.00               Full Description
ZADSR3210PROXR_802154
802.15.4 Wireless Relay Controller 32-Channel 10 Amp SPDT + 8-Channel 8/10-Bit A/D
  • 32 Relays - 10 Amp SPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Power Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $684.00               Full Description
ZADSR321DPDTPROXR_802154
802.15.4 Wireless Relay Board 32-Channel 1 Amp DPDT + 8-Channel 8/10-Bit A/D
  • 32 Relays - 1 Amp DPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Signal Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $678.00               Full Description
ZADSR323DPDTPROXR_802154
802.15.4 Wireless Relay Board 32-Channel 3 Amp DPDT + 8-Channel 8/10-Bit A/D
  • 32 Relays - 3 Amp DPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Signal Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $770.00               Full Description
ZADSR325DPDTPROXR_802154
802.15.4 Wireless Relay Board 32-Channel 5 Amp DPDT + 8-Channel 8/10-Bit A/D
  • 32 Relays - 5 Amp DPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Signal Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $862.00               Full Description
ZADSR325PROXR_802154
802.15.4 Wireless Relay Controller 32-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D
  • 32 Relays - 5 Amp SPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Power Switching
  • ProXR Series
  • 8 A/D Inputs
  • XR Expansion Port
           $592.00               Full Description
ZUXPR3220PROXR_802154
802.15.4 Wireless Relay Controller 32-Channel 20 Amp SPDT + UXP Universal Expansion Port
  • 32 Relays - 20 Amp SPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Power Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $849.00               Full Description
ZUXPR3230PROXR_802154
802.15.4 Wireless Relay Controller 32-Channel 30 Amp SPST + UXP Universal Expansion Port
  • 32 Relays - 30 Amp SPST
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Power Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $980.00               Full Description
ZUXPSR3210PROXR_802154
802.15.4 Wireless Relay Controller Board 32-Channel 10 Amp SPDT + UXP Universal Expansion Port
  • 32 Relays - 10 Amp SPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Power Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $684.00               Full Description
ZUXPSR321DPDTPROXR_802154
802.15.4 Wireless Relay Controller Board 32-Channel 1 Amp DPDT + UXP Universal Expansion Port
  • 32 Relays - 1 Amp DPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Signal Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $678.00               Full Description
ZUXPSR323DPDTPROXR_802154
802.15.4 Wireless Relay Controller Board 32-Channel 3 Amp DPDT + UXP Universal Expansion Port
  • 32 Relays - 3 Amp DPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Signal Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $770.00               Full Description
ZUXPSR325DPDTPROXR_802154
802.15.4 Wireless Relay Controller Board 32-Channel 5 Amp DPDT + UXP Universal Expansion Port
  • 32 Relays - 5 Amp DPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Signal Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $862.00               Full Description
ZUXPSR325PROXR_802154
802.15.4 Wireless Relay Controller Board 32-Channel 5 Amp SPDT + UXP Universal Expansion Port
  • 32 Relays - 5 Amp SPDT
  • 802.15.4 Communications
  • Range: 300 ft. to 1 mi.
  • Ideal Use: Power Switching
  • ProXR Series
  • XR and UXP Expansion Ports
           $592.00               Full Description
Sort By:

Display Page:     ( 1 )
