USB ProXR Relay Control with Analog to Digital Conversion
USB 8-Channel Solid State Relay Controller + UXP Expansion Port
Product Code: ZUXPSSR8XPROXR_USB
The ZUXPSSR8XPROXR_USB is similar to the ZADR85PROXR model shown in the video. The wireless 802.15.4 module is simply replaced with a USB module making this a USB board.
ProXR Relay with UXP at a Glance
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your RS232 Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- 2400 to 115.2K Baud RS-232 Serial Connection for High Speed Switching
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing ProXR Command Set
- UXP Expansion port for Adding Additional:
- Contact Closure Modules - up to 256 Inputs
- Digital Potentiometers - up to 48 Inputs
- Analog to Digital Conversion - up to 256 Outputs
Video Resources
(Select a thumbnail to view the video)USB Setup
Watch as we show you how to Set Up the Hardware and Software necessary to use your USB Relay Controller
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Resources:
This Product:
Related Products:
ZADSSR8XPROXR_USB_MIX
 |
USB 8-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D |
| Stock#: ZADSSR8XPROXR_USB_MIX | $210.00 |
ZUXPSSR8XPROXR_USB_MIX
 |
USB 8-Channel Solid State Mixed SSR Relay Controller + UXP Expansion Port |
| Stock#: ZUXPSSR8XPROXR_USB_MIX | $210.00 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
USB ProXR Enhanced with UXP:
USB Virtual COM Relay Controller with
UXP Expansion Port and
XR Expansion Port
About USB:
Our New USB ProXR Series Relay Controllers make it easier than ever to add computer controlled switching to your most demanding computer control applications. Simply connect to your computer and this controller mounts as a Virtual COM Port on your PC, allowing easy programming from any language that supports serial communications.
This ProXR series controller connects to the USB port of your computer and requires a 12VDC Power Supply. Once powered up, the relay controller waits for a command. A command consists of a few bytes of data. Usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.
Read More About USB Communications
ZUSB Modules
This board is equipped with a ZUSB Module. The ZUSB communications module adds USB communications to all NCD devices equipped to accept modular wireless communication modules. The ZUSB is powered from the USB port of your computer and includes a 6' USB Cable. The ZUSB is available in three varieties:About Universal Expansion Ports
If you need to add capabilities beyond basic relay control to your application, then you may want to consider using one of our controllers equipped with a UXP Expansion Port. UXP is a standardized data port, specifically for the purpose of speaking to various expansion modules. This Relay Controller is equipped with a UXP port, allowing you to take advantage of extended commands to speak to our growing line of I/O expansion modules.
About ProXR:
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR Expansion Port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
You can send commands to activate relays, deactivate relays, control all the relays at one time, plus you can send commands that tell a relay to turn on for a few seconds, minutes, or hours. You can assign 16 timers to any of the 256 relays, and set the timers to go off after the duration has expired. That's just the beginning, find out more about our ProXR Command Set.
Read More About the ProXR Standard
ALL RELAYS ARE HERMETICALLY SEALED, Relay Controller Requires +12VDC Power Supply, Photos May Show Options or Accessories Not Included with Relay Controller. USB Specification Prohibits Relay Controllers from Being USB Bus Powered due to Surge Currents. NCD will NOT Design/Manufacture a Mechanical Relay Controller that is USB Bus Powered, Please Be Cautious of Any Manufacturer who Offers such a Device.
Resources
| Quick Start Guide | Quick Start Guide |
| Download USB Drivers | Download Latest USB Virtual COM Port Drivers |
| Download Manual | Download Product Manual |
| Download Software | Download Example Software and Source Code |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
Wiring Diagrams Wiring Diagrams: several simple ways to wire a relay for various applications. |
|

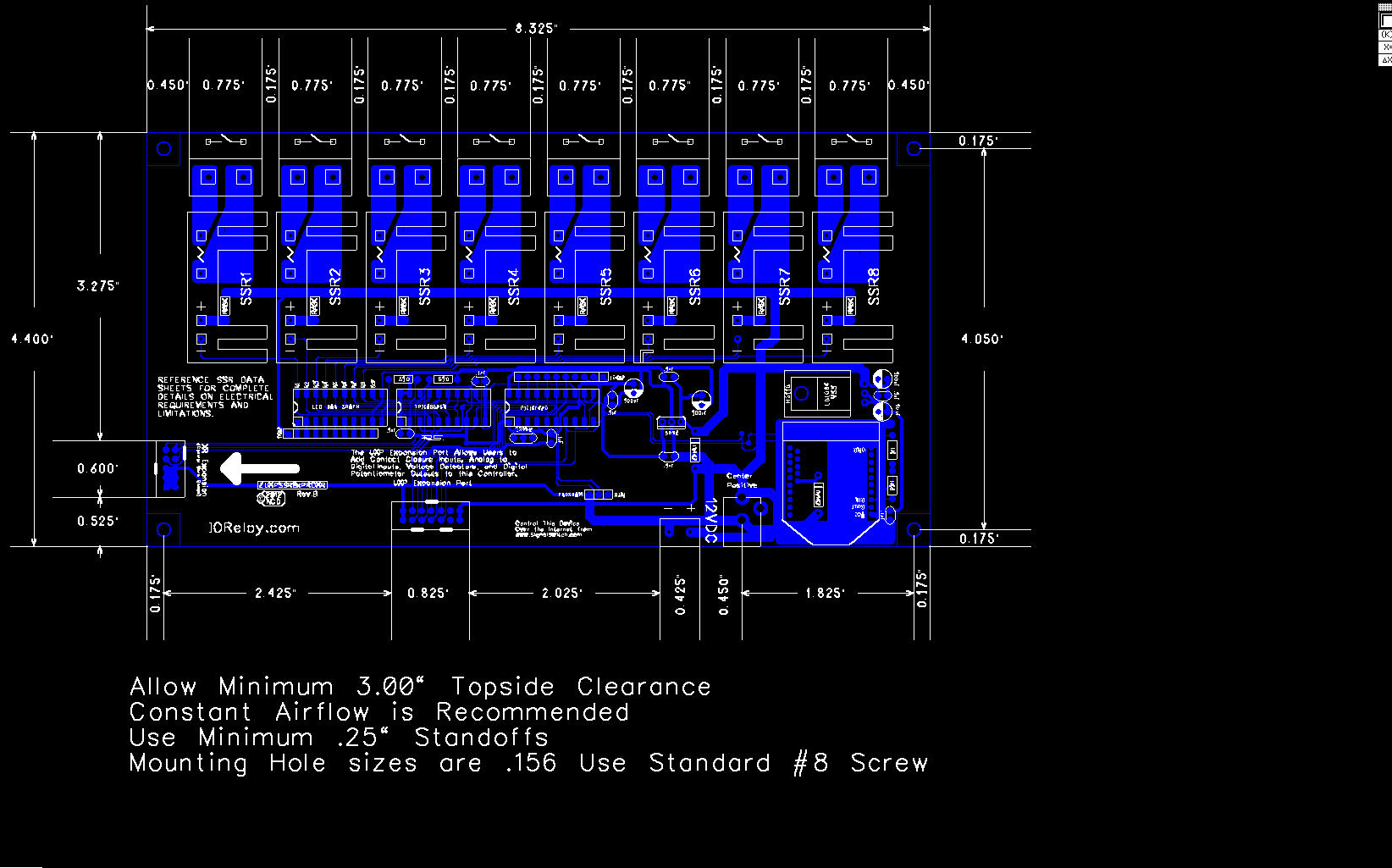

| Mechanical Drawing | Mechanical Drawing for this board |
