ZUSB Module

USB Interface Module - Top & Side Entry

Product Code: ZUSB-TS

USB Interface Mounts as a Virtual COM Port for Easy Programming Across All Major Operating Systems, Ensuring Compatibility with All Programming Languages that Support Serial Communications !

Control this Device Over the Internet

Signal Switch Compatible

USB Interface Module - Top & Side Entry

$40.00/ea

The ZUSB-TS Module is one of the three varieties of USB Modules that can replace each other or even replace an 802.15.4 or XSC module.

ZUSB Modules at a Glance

Adds USB Communications to NCD Devices
Powered from the USB Port
Compatible with all NCD Devices with modular communications profile
Available with Top, Side, or Top-Side Mini USB Port
Configure the USB access of your board for your installation requirements
Use a ZUSB Module for USB Configuration of Reactor, Key Fob or Taralist Relays

USB Setup

Watch as we show you how to Set Up the Hardware and Software necessary to use your USB Relay Controller

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Intro to Wired Communications

Learn the basics of wired communications and find the right wired controller for your application

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

Introduction to A/D

Learn about Analog to Digital Conversion and its uses

How to Find the Com Port

Learn how to find the Com Port that your Device is using

About Expansion Ports

Learn about the Expansion Options available to use with our controllers

NOTICE: This Device CANNOT be used in inductive control applications. Click Here for More Information

Resources:

Download USB Drivers Mechanical Drawing

This Product:

ZUSB-TS

	USB Interface Module - Top & Side Entry
Stock#: ZUSB-TS	$40.00

Related Products:

ZUSB

	USB Interface Module - Side Entry
Stock#: ZUSB	$30.00

ZUSB-TOP

	USB Interface Module - Top Entry
Stock#: ZUSB-TOP	$35.00

Questions?

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

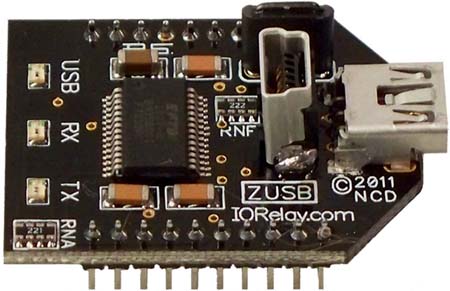

ZUSB-TS Module

Top & Side Configuration For USB Cable Access From Top or Side
Transmission Lights Let You Know Communications are Active
NCD Exclusive USB Connectivity for More Reliable Communication

Modular USB Communications

The ZUSB communications module adds USB communications to all NCD devices equipped to accept modular wireless communication modules. The ZUSB is powered from the USB port of your computer and includes a 6' USB Cable. The ZUSB is available in three varieties:

ZUSB
The ZUSB has a USB port that accepts a USB cable that enters from the side of the ZUSB module.

ZUSB-TOP
The ZUSB-TOP has a USB port that accepts a USB cable that enters from the top of the ZUSB module.

ZUSB-TS
The ZUSB-TS has two USB ports that accepts a USB cable from the Top or the Side of the ZUSB module. Only one port can be used at a time.

The ZUSB is ONLY compatible with NCD devices and should not be used with devices manufactured by other companies.

Benefits of USB Interface Module

Convert any ZigBee or XSC Board to USB
Use Only for NCD Devices
Top or Side Entry Versions
USB Cable Included
1 Channel USB Relay Now Available
SignalSwitch Compatible

Summary of USB Communications

USB Interface mounts as a Virtual COM Port on your PC for easy programming and 100% compatibility across ALL operating systems
Plug in, open the Virtual COM Port at 115.2K baud, and start sending commands
Expandable to control up to 256 Relays using the XR Expansion Port
Available in Reactor and Key Fob, ProXR Lite and Taralist Series
Control one relay at a time or all relays at once with manual and automatic refreshing command set
SignalSwitch Compatible

ZUSB Modules make it easier than ever to add computer controlled switching to your most demanding computer control applications. Simply connect to your computer to a controller with this module and it will mount as a Virtual COM Port on your PC, allowing easy programming from any language that supports serial communications.

The ZUSB Series Modules can also be use to to replace a wireless module on the Reactor or Key Fob or Taralist series controllers during configuration or troubleshooting. Replacing the wireless module allows local configuration and initial setup of the controllers without using the wireless module.

Download USB Drivers	Download USB Drivers
Mechanical Drawing	Mechanical Drawing for this board

USB Interface Module - Top & Side Entry

Quantity in Basket: None
Code: ZUSB-TS
Price: $40.00
Shipping Weight: 0.50 pounds

This Item is Lead-Free RoHS Compliant :

RoHS Compliant

Quantity:

USB Interface Module for ZigBee and XSC Devices - Top & Side Entry
