Product Discontinued
This product has been replaced by WEB-I MODULE
ZETH-NET Discontinued - This item has been replaced by a new Item, see product description for details
Discontinued - This item has been replaced by a new Item, see product description for details
Control this Device Over the Internet
Signal Switch Compatible
Discontinued - This item has been replaced by a new Item, see product description for details
$89.00/ea
Resources
Product Resources:
 |
GET STARTED WITH ZETH-NET ETHERNET CONTROLLERS AND WEB CONTROLLED RELAYS Click the above link for an exclusive article on Web Browser Controlled Relays |
| Configuration Utility |
 Download the NCD Configuration Utility |
Features
- Secure Remote Internet and LAN Access via most Web Browsers
- User Configurable and Customizable Relay Control from within the Browser
- Open-Source module firmware allows for customization like never before
- Direct TCP/IP communication ready
- Can communicate to multiple computers at once
- Powerful and Proven ProXR Command Set
- DHCP IP Addresses Supported
- Password Protected
This Product:
ZETH-NET
|
|
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#:ZETH-NET |
|
| 1-9 | $89.00 |
www.controlanything.com
Since October, 1995
Watch This Video and Check Out the Sample Interface
Web Browser Based Communications using ZETH-NET
Browser based Communications are easy and effective and can be used to control or test your board from anywhere in the world without the need for custom programming. Our ZETH-NET modules give you the power to control electronics from anywhere in the world using built-in Internet Browser Based Interaces and the flexibility to create customize the open-source software for yourself.
You can Demo This Interface Now at http://www.signalswitch.com:8080/ and control a Live Board here in our office.

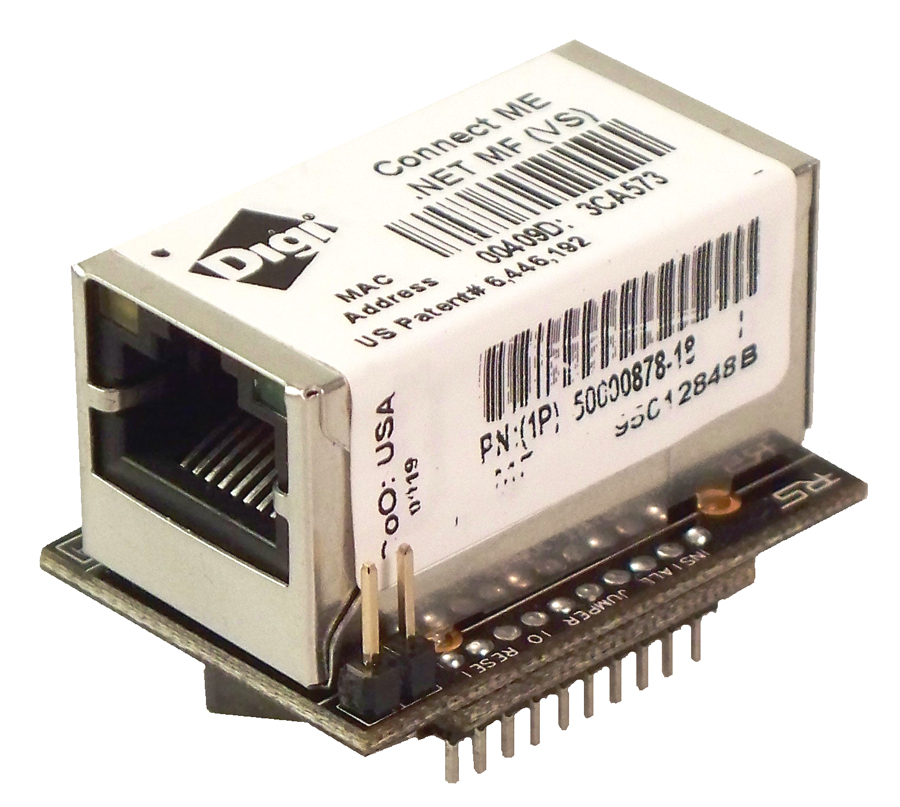

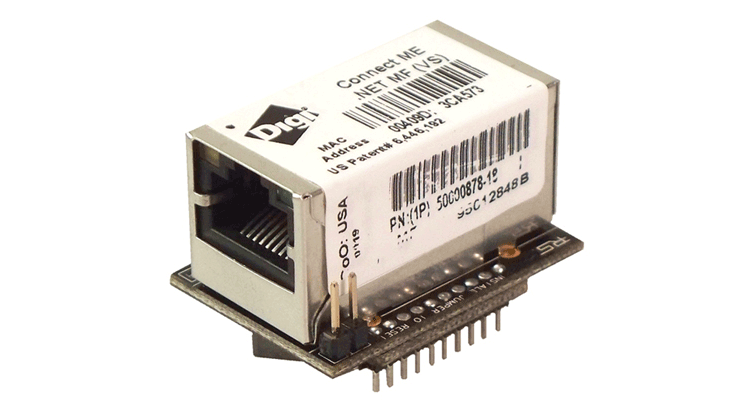

ZETH-NET is an Open-Source project that offers a powerful web-browser interface for direct control of relays from a web-page served directly to users from the ZETH-NET module, without the need for a server. In addition to a web browser relay control interface, ZETH-NET devices also allow you to control the device from your own software through direct TCP/IP communications while still hosting a web browser interface. Write software that directly accesses the controller or access the control from your web browser.
As an Open-Source project, you can customize the interface as needed using .NET development tools. The Open-Source project for ZETH-NET opens December, 2010. We have an Expected ship date of June 15th for the new ZETH-NET module. You can preorder the ZETH-NET module for this controller when you place this controller in the shopping cart. Use the chart below to compare features of the ZETH-ME and ZETH-NET Ethernet Modules.
ZETH-NET Compatibility

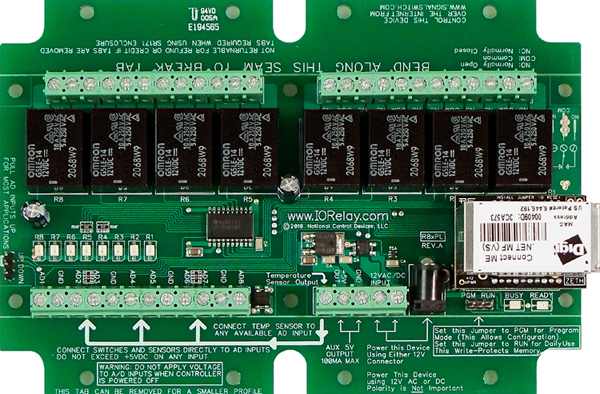

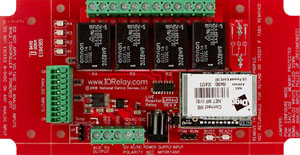

ZETH-NET Modules are compatible with any of our surface mount boards except for the MirX and MirC Series Boards. This includes the ProXR_LITE, Reactor, Key Fob, and Taralist Series.
All you need to do to replace your current module with a ZETH-NET Module is to take off the module that is currently on your board (it should just pop off) and put the ZETH-NET Module in its place.
You may need to go into the Administrative section of your ZETH-NET through your Browser to configure your Module for your board.
Additional ZETH-NET Features
| Feature: | ZETH-NET |
| Supports Direct TCP/IP Communications | YES |
| Supports Direct Connection to SignalSwitch.com | YES |
| Supports Multiple Communication Methods
(Above) Simultaneously |
YES |
| Supports Direct Internet Access Without a Server (requires static IP) |
YES |
| Open-Source User-Upgradeable (requires development software) | YES |
| Web-Browser Interface for ProXR Series Controllers | YES |
| Web-Browser Interface for Reactor Series Controllers | YES |
| Web-Browser Interface for Taralist Series Controllers | YES |
| Web-Browser Interface for Network Configuration | YES |
| Supports DHCP | YES |
| Supports Fixed IP Address | NO |
| Password Protection | YES |
Discontinued - This item has been replaced by a new Item, see product description for details | |
|
Quantity in Basket:
None
Code: ZETH-NET Price: $89.00 Shipping Weight: 0.10 pounds | |
| Discontinued - This item has been replaced by a new Item, see product description for details | |
