National Control Devices: Ethernet ZETH-ME Module with Digi Connect ME Ethernet Interface

ZETH-ME Ethernet ZETH-ME Module

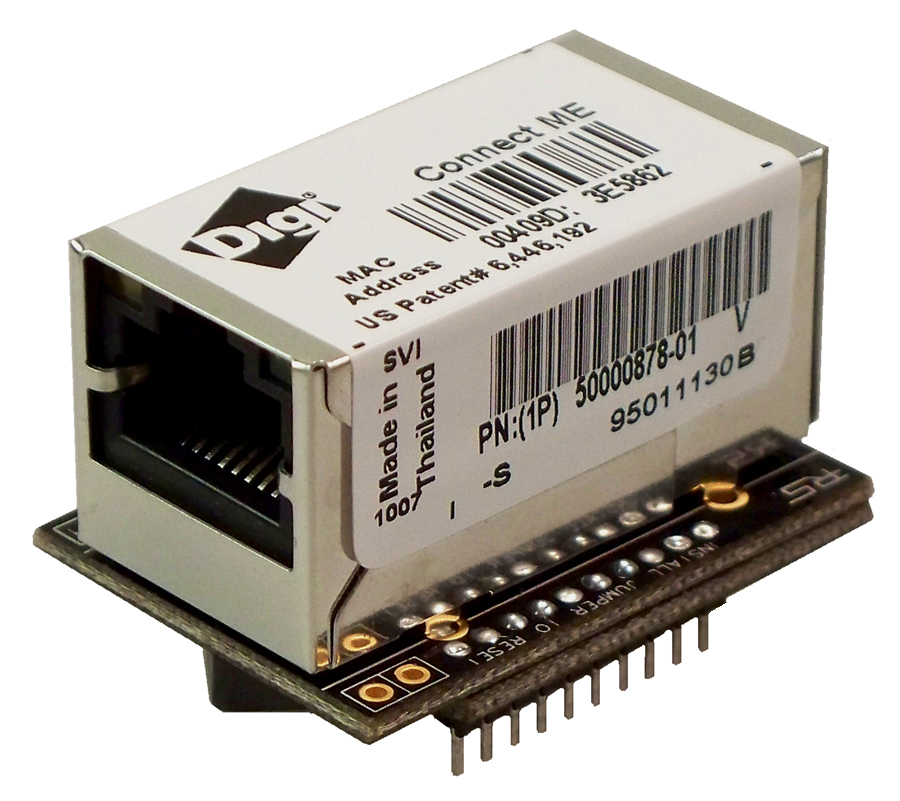

Ethernet ZETH-ME Module with Digi Connect ME Ethernet Interface

Ethernet Module with Web Browser Interface

Ethernet Network Data Collection and Relay Control Leaps Ahead into Today's Networks!

Control this Device Over the Internet

Signal Switch Compatible

Ethernet ZETH-ME Module with Digi Connect ME Ethernet Interface

$69.00/ea

Product Resources:

	NEW TO ETHERNET COMMUNICATIONS? GET STARTED HERE Click the above link for an exclusive article on Ethernet Communications
Configuration Utility	Download the NCD Configuration Utility

Features

Ethernet Interface Mounts as a COM Port on your PC Through your LAN
With no Programming you can talk to our Networking Boards via the Internet using SignalSwitch.com, without a dedicated computer for the board.
Supports Telnet and Data Encryption with Password Protection
Embedded Digi Connect ME Ethernet Interface & Web Server from www.digi.com

Ethernet Relay

This Product:

ZETH-ME

	Ethernet ZETH-ME Module with Digi Connect ME Ethernet Interface
Stock#: ZETH-ME
1-9	$69.00

Related Products:

ZETH-NET

	Discontinued - This item has been replaced by a new Item, see product description for details
Stock#: ZETH-NET
1-9	$89.00

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

National Control Devices, LLC
www.controlanything.com
Since October, 1995

Ethernet Network Module

Introducing ZETH; the Ethernet Network communications Module from National Control Devices. Designed to plug into NCD Surface Mount devices, two powerful Ethernet network communication options bring you device connectivity from anywhere in the world. Our first generation of Ethernet relay controllers was based on the Digi Connect ME Ethernet communications module. This is a great low-cost solution that has empowered our users since 2005, and is now repackaged into the ultra-small ZETH-ME communications module. The Digi Connect ME firmware allows you to login to the device and setup powerful network communication options. Though it does not offer a web browser interface for relay/device control, it does offer many powerful connectivity options for advanced networks at a very low cost. ZETH-ME supports Virtual COM Port Ethernet Communications, Direct TCP/IP communications, or direct communication to SignalSwitch.com. ZETH-ME is only capable of handling only one of these communication options at a time, but can easily be reconfigured if you prefer to change how you communicate.

Product Variation: ZETH-NET with Web-Browser Interface

NCD Currently offers 2 variations of the Ethernet Modules. The ZETH-NET with Web-Browser interface is also available.

ZETH-NET is our own breed of Ethernet communications. ZETH-NET is an Open-Source project that offers a powerful web-browser interface for direct control of relays from a web-page served directly to users from the ZETH-NET module, without the need for a server. ZETH-NET is accessible from anywhere on your local area network. If you have a static IP address, ZETH-NET is accessible from anywhere in the world. In addition to a web browser relay control interface, ZETH-NET devices also allow you to control the device from your own software through direct TCP/IP communications while still hosting a web browser interface. Write software that directly accesses the controller or access the control from your web browser. ZETH-NET also supports a simultaneous connection to SignalSwitch.com, allowing you to control the ZETH-NET from our server, your program, or your web browser...all at the same time. As an Open-Source project, you can customize the interface as needed using .NET development tools. The Open-Source project for ZETH-NET opens December, 2010. We have an Expected ship date of June 15th for the new ZETH-NET module. You can preorder the ZETH-NET module for this controller when you place this controller in the shopping cart. Use the chart below to compare features of the ZETH-ME and ZETH-NET Ethernet Modules.

Feature Comparison:	ZETH-ME	ZETH-NET
Supports Virtual COM Port over Ethernet	YES	-
Supports Direct TCP/IP Communications	YES	YES
Supports Direct Connection to SignalSwitch.com	YES	YES
Supports Multiple Communication Methods (Above) Simultaneously	-	YES
Supports Direct Internet Access Without a Server (requires static IP)	-	YES
Includes Extensive Network Configuration Options	YES	-
Web-Browser Interface for ProXR Series Controllers	-	YES
Web-Browser Interface for Reactor Series Controllers	-	YES
Web-Browser Interface for Taralist Series Controllers	-	YES
Web-Browser Interface for Network Configuration	YES	YES
Supports DHCP	YES	YES
Supports Fixed IP Address	YES	NO
Password Protection	YES	YES
Open-Source User-Upgradeable (requires development software)	-	YES
