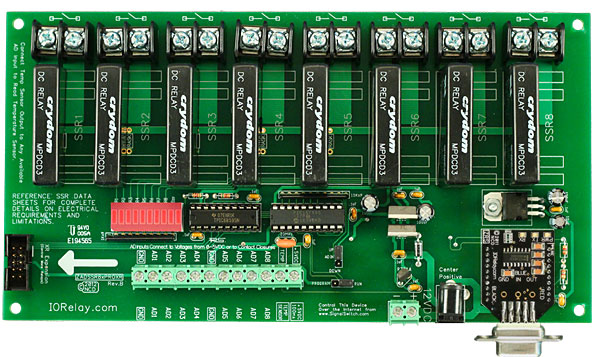

ProXR RS232 DPDT Relay Controller
Serial 8-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D
Product Code: ZADSSR8xPROXR_ZRS
The latest version of the ProXR Series have interchangeable communications modules that can be swapped at will. Simply disconnect all power from the board and pull off one module and replace it with another.
Summary of RS232 Communications
- Supports any available COM port
- Supports 2-way communications
- Three RS-232 connection options
- Optional USB to RS232 Adapter allows easy connection to your computer's USB port
- Expandable to control up to 256 Relays using the XR Expansion Port
- 8 Channels of 8-bit A/D Inputs
- Control one relay or all 256 at once with manual or automatic refreshing command set
- Full ProXR Command Set
Video Resources
(Select a thumbnail to view the video)Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Resources:
This Product:
ZADSSR8xPROXR_ZRS_MIX
 |
Serial 8-Channel Solid State Mixed SSR Relay Controller + 8-Channel 8/10-Bit A/D |
| Stock#: ZADSSR8xPROXR_ZRS_MIX | |
| 1-9 | $209.00 |
Power Supply Available
PWR12 Power Supply
 |
The PWR12 is regulated power supply providing clean power necessary for the performance of these boards |
| Stock#: PWR12 | $24/ea |
Desktop Control
N-Button Lite
Desktop Control & Monitoring
 |
N-Button creates up to 8 desktop widgets to control relays without any programming. Order Today with This Board for Only $29 |
| Stock#: N-Button Lite | $49.00 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
RS232 Relay with ProXR Command Set
and A/D Conversion
The Most Powerful Command Set Available Anywhere
Read Sensors & Contact Closures with Built-In A/D Conversion
ProXR - The Most Powerful Relay Control Available!

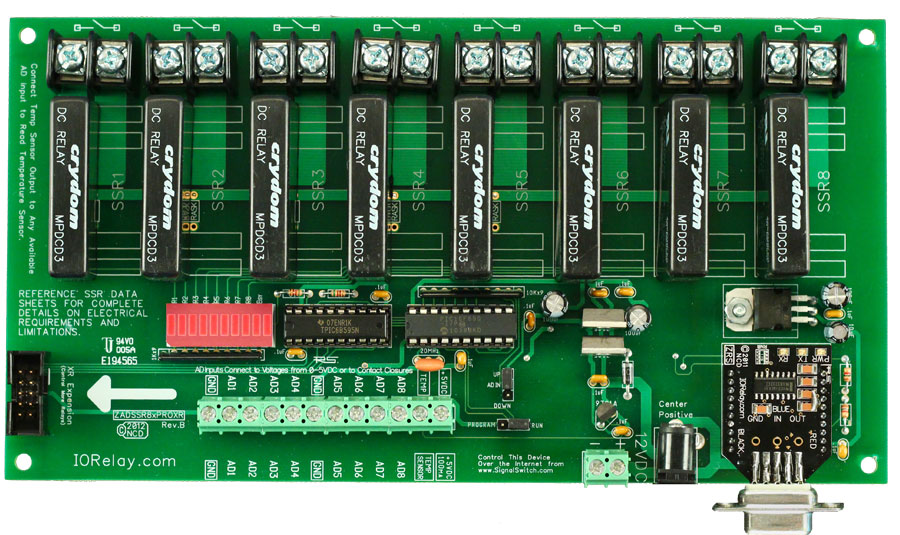

RS-232 ProXR Relay Controller
This ProXR controller is built with the most powerful command set available anywhere. Put simply, ProXR is a standardized set of commands for controlling relays. This controller is also equipped with Analog to Digital conversion which is simply converting a voltage in the range of 0 to 5VDC into a number that can be processed by custom software that you develop. The applications are limitless and the data that you receive such as light levels and temperature levels can easily activate relays when A/D levels are reached. See more on A/D Conversion below.
Once powered up, the relay controller waits for a command. A command consists of a few bytes of data. Usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command. You can send commands to activate relays, deactivate relays, control all the relays at one time, plus you can send commands that tell a relay to turn on for a few seconds, minutes, or hours. You can assign 16 timers to any of the 256 relays, and set the timers to go off after the duration has expired. Look at the ProXR Command Set to see the full list of commands available.
The features list of the ProXR series controllers is extensive. Our ProXR Software helps get you acquainted with the powerful command set. To download, look for the ProXR Software in the Resources section to the right and bottom of this page. The ProXR Manual and the mechanical drawing with dimensions and hole layouts can also be found in the Resources section.
Out of the box, the ProXR series controllers are ready to control 256 relays. You may not have 256 relays just yet, but if your application grows, then the controller is ready to grow with you. The ProXR series controllers are built from the ground up to be expanded. When you need more relays, the XR Expansion port will allow you to add another bank of relays (any kind you need), with programming changes taking minutes instead of hours. No complicated protocols, just simplicity, built into the controller from the very beginning.
Connect this board to the USB port of your computer using a USB to Serial adapter.
Three RS-232 Connection Options
There are three RS-232 connection options available for this controller.
 |
 |
 |
|
ZRS-A Wire It Up |
ZRS-B Plug It In |
ZRS-AB Both! |
|
Choose the connection that fits your needs. The ZRS-A connection is recommended for applications where hard wiring directly to the board is needed. ZRS-B has the fill 9-Pin RS-232 connector on the board. The ZRS-AB Has the fill 9-Pin connector but is is located off the board for applications where the board may be place inside an enclosure an the RS-232 connector needs to reach to the side of the enclosure. You can choose one of these connection options at checkout. |
||
Solid State: A Practical Alternative to Mechanical Relays!
Mechanical Relays have a good home in low-cost control applications. But for some users, only solid state switching will do. Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance. Many inductive control applications require a solid state relay. Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.
A/D Conversion
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.
Read More About Analog to Digital Conversion
N-Button
N-Button & N-Button Lite is software that allows you to configure buttons to control relays and read the status of those relays without programming. You can also create meters for reading variable input sensors connected to the board in real time! N-Button will allow you to create unlimited widgets and N-Button Lite will allow you to create up to 8 widgets.Custom Buttons
When you create custom buttons in N-Button & N-Button Lite you can use any of the commands that are in a ProXR Command Set that is available with this relay. You can find the full command set here. It's quite extensive and you can configure the buttons to activated these commands. These buttons will be on your desktop of your computer and when you click on a button it will send the command to the board provided the board is connected to the computer. You can also change the shape, color and text of each button so you will know exactly what each button controls.
 |
 |
 |
 |
Relay Button widgets turn on/off relays directly. It has never been easier to control relays, no programming skills required. Create a button that turns a relay on and another one to turn the relay off or create a button that toggles the relay on and off. It's up to you and easy to configure with the N-Button Lite software!
 |
 |
 |
 |
Relay Status Relay Status widgets shows the status of the relay automatically. Just a glance at your desktop will show the status of the relay!
|
 |
 |
 |
Desktop Meters
Desktop Meters can be created for real time level readings of any variable input sensor. "It's like having a meter right on your desk for constant monitoring". Meters can be created for temperature sensors, moisture sensors, light meters and others. Read the sensor and create relay buttons that will allow at-a-glance determination of the relay status. Best of all the increments on the meter can be fully customized to fit your needs and the meters will work with this board!
Save 40% on N-Button Today
Limited time offer! Order the N-Button Lite with a relay board and get it for the unbelievable price of just $29.00. That's a discount of 40% off the retail price! If you purchase the full N-Button it's just $99.00 with the purchase of a relay board and that's a 41% savings off retail price! Desktop control, sensor meters and backgrounds plus all the customization for just one low price, purchase your copy of N-Button Lite today.
Resources
 |
NEW TO RS232 COMMUNICATIONS? GET STARTED HERE Click the above link for an exclusive article on RS232 Communications |
| RS232 Relay Article | RS232 Relay Article |
| Download Manual | Download the ProXR Manual Manual |
| ProXR Software | Download Example Software and Source Code |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes four example applications compatible with the Pro Series. |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |

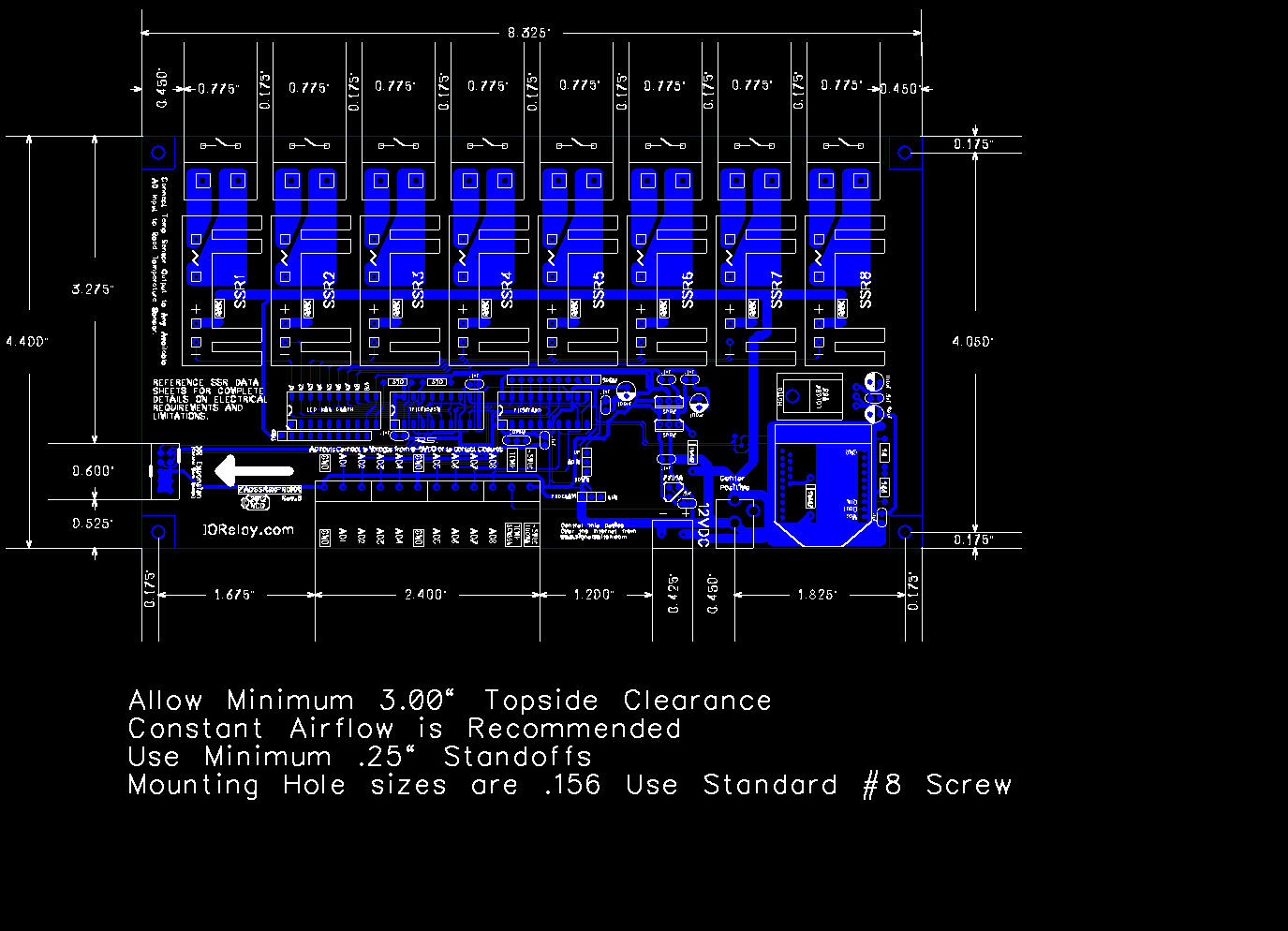

| Mechanical Drawing | Mechanical Drawing for this board |
Choose a Solid State Relay for This Controller: |
|||
|
Crydom |
 |
2A 240VAC Normally Open SPST Zero Crossing Turn On Built-In Snubber Circuit For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature D2W Series Data Sheet |
$12.00/each |
|
Crydom |
 |
5A 240VAC Normally Open SPST |
$15.00/each |
|
Crydom |
 |
5A 240VAC Normally Open SPST |
$16.00/each |
|
Crydom |
 |
25A 240VAC Normally Open SPST Random Turn On For Use with Inductive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet |
$28/each |
|
Crydom |
 |
25A 480VAC Normally Open SPST Zero Crossing Turn On For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet |
$30/each |
|
Crydom |
|
3A 60VDC Normally Open SPST For Use with Resistive or Inductive Loads DC Switching ONLY .02A Minimum Load Required 1.5V Maximum On-State Voltage Drop -40 to 80°C Operating Temperature PF Series Data Sheet DC Solid State Connection Diagram |
$24/each |
| NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com. | |||
