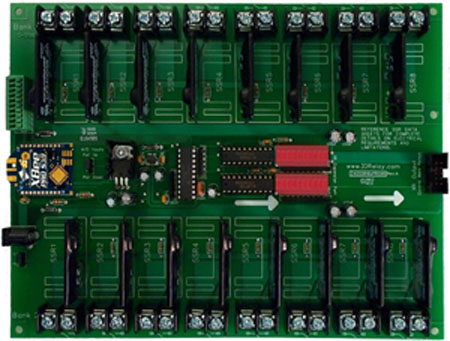

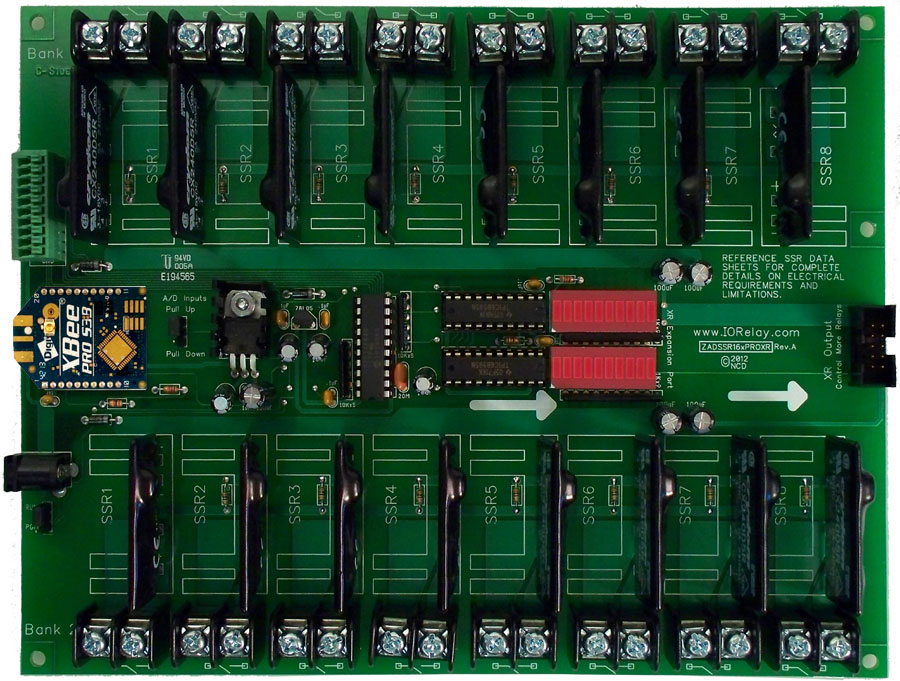

ZADSSR16xProXR_XSC XSC Long Range Relay
XSC Wireless 16-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D
The latest version of the ProXR Series have interchangeable communications modules that can be swapped at will. Simply disconnect all power from the board and pull off one module and replace it with another.
Long Range XSC ProXR Series at a Glance
- XSC allows for Long Range Communications with your choice of 1 mile or 15 miles range modules
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- Add Relays to this Controller is your Needs Ever Grow
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
- CPU Status LEDs Show Command Processing Activity
- 8 Channels of 8/10 bit A/D Inputs
Video Resources
(Select a thumbnail to view the video)Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wireless Communications
Learn the basics of wireless communications and find the right wireless controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Wireless Range Test
Test of the range of our Wireless Communication Options
XSC Range Test
Test of the range of our XSC Wireless Communication Options
Resources:
This Product:
Related Products:
ZADSSR16xProXR_XSC_MIX
 |
XSC Wireless 16-Channel Mixed Solid State Relay Controller + 8-Channel 8/10-Bit A/D |
| Stock#: ZADSSR16xProXR_XSC_MIX | $363.00 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
XSC Long Range Wireless Controller Enhanced with A/D
Take all the Power of the ProXR Series Relay Controllers
...add a XSC Long Range Wireless Interface:
Long Range Wireless Control is Effortless!
Long Range Antenna
An outside antenna will need to be installed in order to reach the 15 mile limit of these devices. When you choose this optional antenna we will include everything you will need to install this except for the pole. Included will be the Cushcraft PC9013 antenna, 20 feet of cable (longer cables are not recommended) and the connector to connect the board to the cable. Purchase a pole to mount the antenna from your local home improvement store and install the antenna. Connect the board to the antenna via the provided cable and start sending commands.About ProXR
All our XSC Long Range Wireless controllers are part of the ProXR series controllers. If you have developed software that works with one ProXR controller, than it will be possible to use this same software to control ANY ProXR controller without modification. There are no new protocols to learn, no new issues to resolve. Just simple compatibility, just like every other ProXR controller before it, just like every other ProXR controller after it.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allows you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
Read More About the ProXR Standard
A/D Conversion
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.
Resources
| Download Manual | Download Product Manual |
| Configuration Utility | Download Latest X-CTU XSC Configuration Utility (Digi X-CTU Software lets you set advanced features of the XSC Module, not required for most applications) |
| Download Software | Download Example Software and Source Code |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |

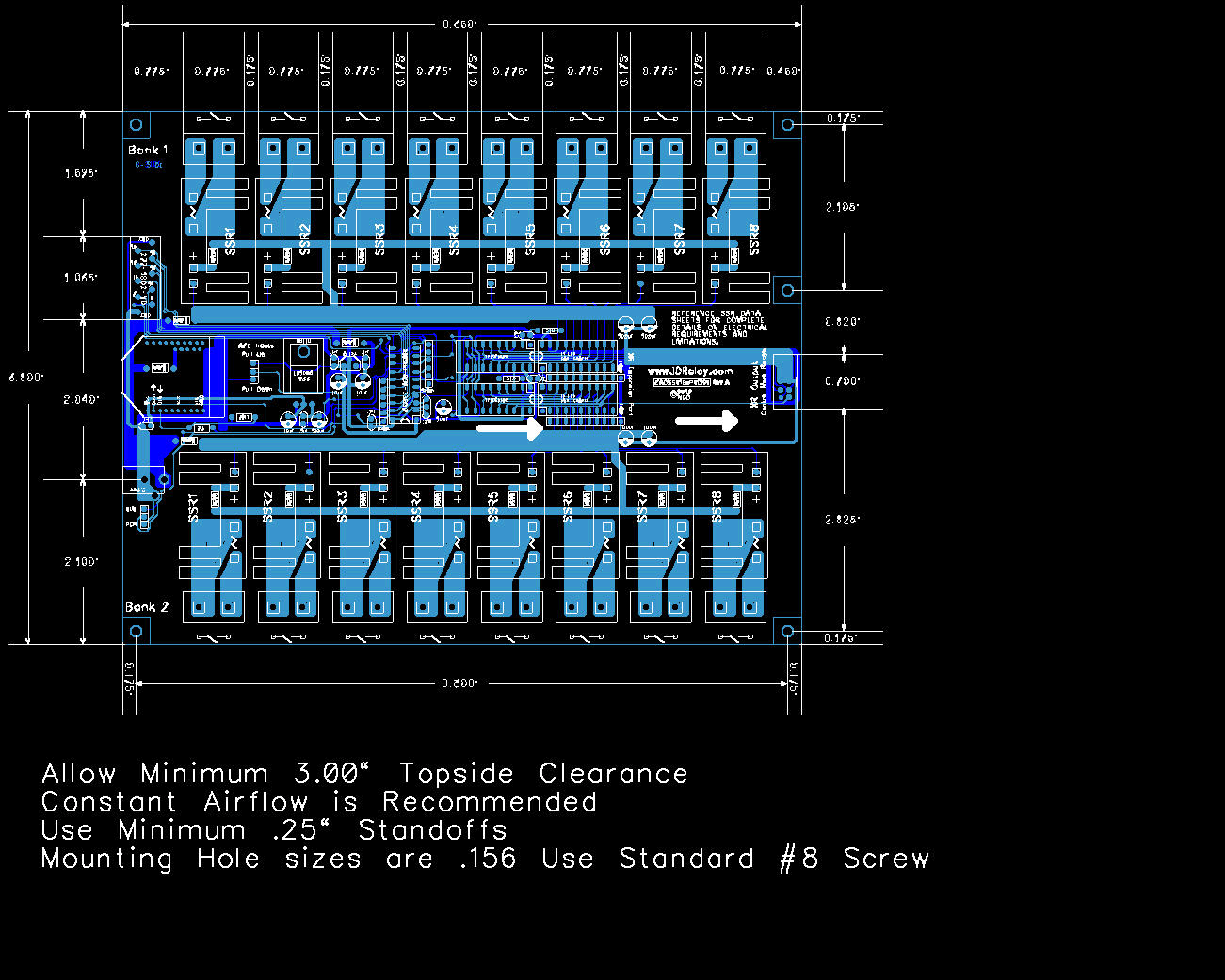

| Mechanical Drawing | Mechanical Drawing for this board |
