National Control Devices: ZigBee Wireless 16-Channel Mixed Solid State Relay Controller + 8-Channel 8/10-Bit A/D

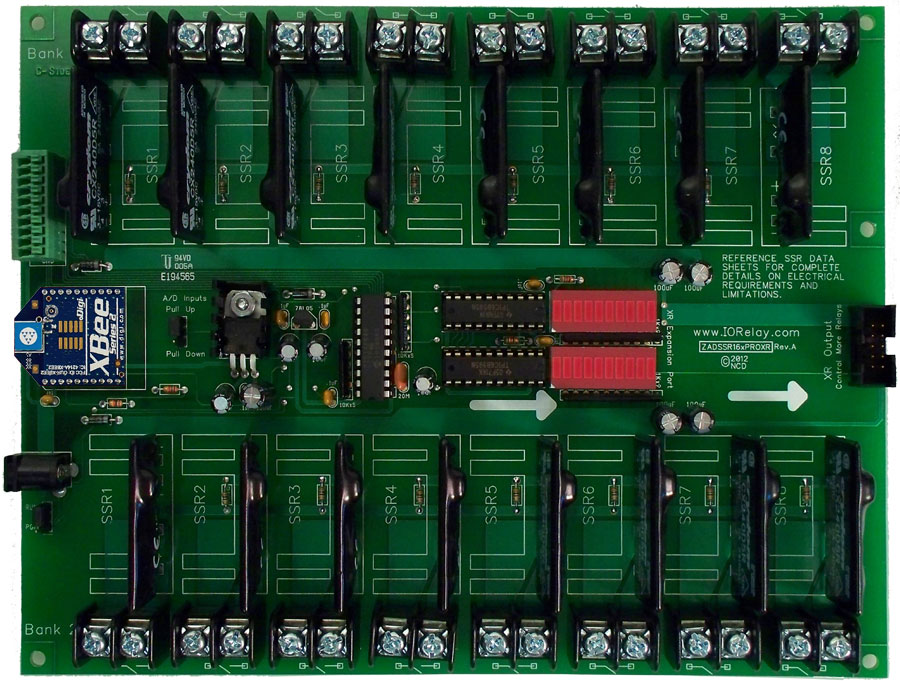

ZADSSR16xPROXR_ZBMESH_MIX ZB ZigBee Networking Relay

ZigBee Wireless 16-Channel Mixed Solid State Relay Controller + 8-Channel 8/10-Bit A/D

This Device Acts like its Directly Connected to the Serial Port of your PC!!! Wireless Data Collection and Control Could NOT be Easier!!! ZB ZigBee Powered Relay Controllers Offer Wireless Communications with No Special Software....

Control this Device Over the Internet

Signal Switch Compatible

ZigBee Wireless 16-Channel Mixed Solid State Relay Controller + 8-Channel 8/10-Bit A/D

$343.00/ea

The latest version of the ProXR Series have interchangeable communications modules that can be swapped at will. Simply disconnect all power from the board and pull off one module and replace it with another.

ZigBee Relays with ProXR Firmware at a Glance

Expandable to control up to 256 Relays using the XR Expansion Port
16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
2400 to 115.2K Baud Networking Wireless Serial Connection for High Speed Switching
The ZigBee Coordinator connected to your computer sends commands to remote devices and can bounce signals off of "router" modules if a device is out of range.
Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing ProXR Command Set
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts
8-Channels of 8-Bit or 10-Bit A/D

Introduction to ZB Mesh

Learn about ZB Mesh Networking and how our controllers utilize it

ZB Mesh Setup

Watch as we show you how to Set Up the Hardware and the Software necessary to use your board

ZB Mesh Troubleshooting

Learn how to troubleshoot your ZB Mesh Relay Controller using XCTU Software

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Intro to Wireless Communications

Learn the basics of wireless communications and find the right wireless controller for your application

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

Introduction to A/D

Learn about Analog to Digital Conversion and its uses

How to Find the Com Port

Learn how to find the Com Port that your Device is using

About Expansion Ports

Learn about the Expansion Options available to use with our controllers

Wireless Range Test

Test of the range of our Wireless Communication Options

802.15.4 Range Test

Test of the range of our IEEE 802.15.4 Wireless Communication Options

This video will introduce you to the world of ZB Mesh Networking and how we use it with our Relay Controllers.
Also read our Article on ZB Mesh Networking.

This video will show you how to setup the Hardware and Software portions of your ZB Mesh Relay Controller. After you've ensured that your Relay Controller is working properly with your computer you can begin writing custom software to control it or use the provided PROXR software.
Also read our Article on ZB Mesh Networking.

This video will show you how to troubleshoot your ZB Mesh Relay Controller using XCTU Software.
Also read our Article on ZB Mesh Networking.

This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.

Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.

This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.

Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.

This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.

This movie will explain the different expansion options that can be used with our controllers.

Test of the range of our Wireless Communication Options

Test of the range of our IEEE 802.15.4 Wireless Communication Options

Resources:

Download USB Drivers NCD Base Station Software Configuration Utility Download Manual Download ProXR Software NCD Component Library Wiring Diagrams Mechanical Drawing

This Product:

ZADSSR16xPROXR_ZBMESH_MIX

Ratings	AC	DC
Voltage	240	24
Amperage	Optional	Optional

	ZigBee Wireless 16-Channel Mixed Solid State Relay Controller + 8-Channel 8/10-Bit A/D
Stock#: ZADSSR16xPROXR_ZBMESH_MIX	$343.00

Related Products:

ZADSSR16xPROXR_ZBMESH

	ZigBee Wireless 16-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D
Stock#: ZADSSR16xPROXR_ZBMESH	$343.00

Questions?

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

Wireless ZB ZigBee Mesh Networking ProXR Relay Controller Enhanced with A/D

ZB ZigBee Relay Controller with an XR Expansion Port

Available as a ZB ZigBee Mesh Network Router or Endpoint

Take all the Power of the ProXR Series Relay Controllers...add a Digi ZB ZigBee Compliant Interface: Remote Data Collection and Control is Effortless!

The latest Buzz in Wireless Technology is ZB ZigBee. ZB ZigBee is a great way to communicate data throughout buildings (or even across town) because it uses all the devices in the area to make sure your data arrives at its intended destination. ZB ZigBee automatically hops your data all over the ZB ZigBee Mesh Network, transparently forwarding your data to its intended destination. The beauty of ZB ZigBee is that you don't have to do anything except tell it where you want your data to go. The ZB ZigBee Mesh Network handles everything else for you. We have created a page dedicated to helping ZB ZigBee Mesh Network users understand this technology. So if you are a first time user of ZB ZigBee and you are looking for a great place to get started, see our article!

By combining the power of ZB ZigBee Mesh Networking with our ProXR series relay controllers, you can take advantage of our powerful ProXR command set for data collection and control, in combination with many wireless ZB ZigBee Mesh Networking features. ZB ZigBee is a perfect integration of good speed and excellent reliability, and for the first time, you can now improve data reliability by adding routers between the computer and far away devices.

Here is a quick rundown of what you should expect from ZB ZigBee Mesh Network:

Plug a ZB ZigBee Coordinator into the USB Port of your computer. The Coordinator will be used to communicated to your wireless ZB ZigBee Mesh Network. The Coordinator will mount as a COM port on your PC. Open the COM port and start sending data to the Coordinator. The Coordinator will forward your data to any or all devices on the ZB ZigBee Mesh Network.

A ZB ZigBee Mesh Network consists of up to three components:

	A Coordinator is Required because it allows your computer to talk to the ZB ZigBee Mesh Network. Use only ONE coordinator in your ZB ZigBee Mesh Network.
	A Router allows data to hop to another part of the ZB ZigBee Mesh Network. It helps contribute to the network, and it can serve as an Endpoint device. In other words, if a relay controller has the Router firmware installed, you can talk to this device directly, or data can be forwarded from this device to another device that may be too far away for the Coordinator to reach directly. Routers are slower than endpoint devices, so use routers wisely.
	An Endpoint device can also be a relay controller or many other types of NCD devices. However, endpoint devices cannot forward data to other parts of the ZB ZigBee Mesh Network. Endpoint devices are faster than router devices, so it is always wise to use Endpoint devices when possible, and router devices when required.
Learn More: Introduction to ZB ZigBee Mesh Networking.....

About ProXR

If you are already using one of our ProXR series controllers, then integrating ZB ZigBee will be very easy. ZB ZigBee actually adds a command set to the ProXR command set. You send ZB ZigBee commands to talk to the network, and specify which device you want to talk to, you then send ProXR commands to the individual devices to activate relays and collect data. ZB ZigBee in its power-on state is like having a wireless serial port. Using ZB ZigBee commands give you the power to communicated to a complex network of wireless devices with incredible ease.

With all the control and backward/forward compatibility you have come to expect from the ProXR command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.

A/D Conversion

Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.

	NEW TO MESH NETWORKING? GET STARTED HERE LEARN ABOUT THE ProXR COMMAND SET HERE
Download USB Drivers	Download Latest USB Virtual COM Port Drivers (Used by the ZB ZigBee Coordinator)
Configuration Utility	Download Latest X-CTU ZB Mesh Configuration Utility (Digi X-CTU Software lets you set advanced features of the Coordinator, not required for most applications)
Download Manual	Download ProXR Manual to learn about Relay Control Command Set
Download Software	Download Example Software and Source Code (This program talks to the ZB ZigBee Coordinator; the Coordinator handles all communications to the device)
NCD Component Library	The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.
Wiring Diagrams	These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic

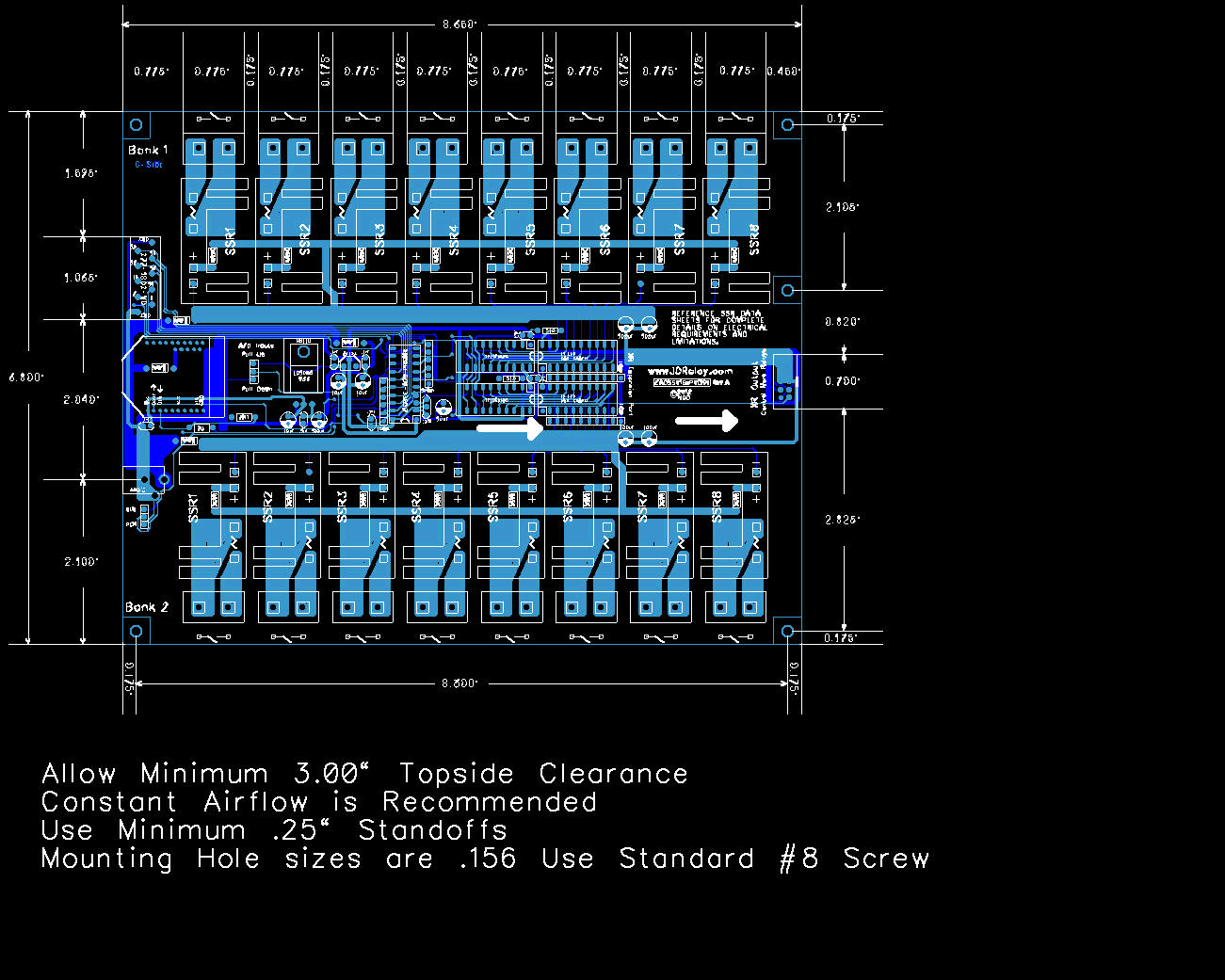

Mechanical Drawing	Mechanical Drawing for this board
