802.15.4 Relay
802.15.4 Wireless 16-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D
Product Code: ZADSSR16XProXR_802154
This Device Acts like its Directly Connected to the Serial Port of your PC!!! Wireless Data Collection and Control Could NOT be Easier!!! IEEE 802.15.4 Powered Relay Controllers Offer Wireless Communications with No Special Software....
802.15.4 Relays with ProXR Firmware at a Glance
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- 2400 to 115.2K Baud Wireless Serial Connection for High Speed Switching
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing ProXR Command Set
- Analog to Digital Conversion allows you to read voltage levels from 0-5 volts
- 8-Channels of 8-Bit or 10-Bit A/D
Video Resources
(Select a thumbnail to view the video)ZigBee Intro
Learn about the ZigBee Wireless Communications and how it stacks up to other Wireless Communication Protocols we use
ZigBee Setup
Watch as we show you how to Set Up the Hardware and the Software necessary to use your Controller
ZigBee Troubleshooting
Learn how to Troubleshoot your ZigBee Relay Controllers using the XCTU Software
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wireless Communications
Learn the basics of wireless communications and find the right wireless controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Wireless Range Test
Test of the range of our Wireless Communication Options
802.15.4 Range Test
Test of the range of our IEE 802.15.4 Wireless Communication Options
Resources:
This Product:
Related Products:
ZADSSR16XProXR_802154_MIX
 |
802.15.4 Wireless 16-Channel Mixed Solid State Relay Controller + 8-Channel 8/10-Bit A/D |
| Stock#: ZADSSR16XProXR_802154_MIX | $393.00 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

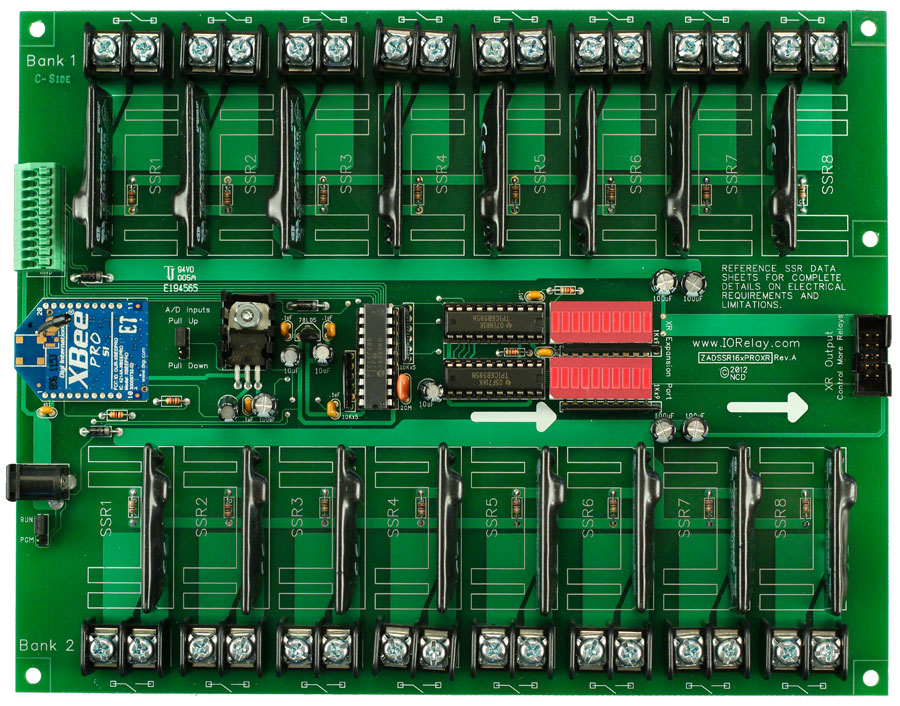

Wireless 802.15.4 ProXR Enhanced with A/D
Take all the Power of the ProXR Series Relay Controllers
...add a Digi Wireless 802.15.4 Compliant Interface:
Remote Data Collection and Control is Effortless!
It works like this. Plug our Wireless 802.15.4 modem into the USB Port of your computer. The modem will mount as a COM port on your PC. Open the COM port and start sending data to the modem. The modem will forward your data to all Wireless 802.15.4 compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).
Easy Software Development
Most of our customers write their own program for controlling these devices. Since you can use almost any programming language, you can use one that is most familiar to you so you don't have to learn a new language. These boards support the Serial Port Profile, meaning they will mount to the computer as a virtual com port. This makes it very easy to send commands to the device.Plug-In for Visual Studio
The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and fully customizable to your needs. Over 40 samples included with this free download! Component Library.Base Station Software
Base Station will assist you in learning how this device functions and is the ultimate reference tool for setting up, testing and controlling this device. Base Station software supports every feature of this device - no other controller manufacturer even comes close to offering this type of software. Base Station works by communicating with your controller to identify the model and provides the appropriate graphical user interface for setting up and testing the identified device. To help you get started and learn this controller Quick Start Guides are available for just about every feature. As you discover a feature in Base Station a link is provided where you can easily download the Quick Start Guide.
ProXR Relay
We've looked at the interface and the programming now let's take a look at the board design itself. The ProXR series controllers are manufactured by hand for a highly accurate and reliable design. Equipped with the XR Expansion Port additional relays can be easily added. Fully tested before they leave the production facility each ProXR Lite controller is ready to stand up to rigorous demands from heat, cold or vibration. The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions. Take it from us, these controllers will hold up!Add Relays as Your Needs Grow
The ProXR series controllers are expandable up to 256 total relays. The controller is fitted with an XR Expansion Port where you can add expansion boards to this relay. Expansion boards can be added until you reach 256 total relays. The Expansion Boards get their logic from the main board and will require 12 VDC power. Expansion boards do not need to be the same relay amperage as the main board or other expansion boards.16 User-Programmable Timers
The ProXR Series controllers have 16 user-programmable timers. Each independent timer can be assigned to any relay, and can be programmed to hold the relay in the On state, or to pulse the relay at the end of the timer. The ProXR timing features are ideally suited for Watchdog, Keep Alive, and Server Reboot applications, as well as sprinkler systems, gate openers, and lighting applications. Relay Timing Features support two modes of operation: Duration and Pulse. Duration timing is ideally suited where a device should be activated for a period of time. Pulse timing mode is designed specifically for server reboot applications, whereby, if the timer is not reset periodically by your software, the timer will run out and reboot your computer.Read Analog Sensors
This ProXR controller offers a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control. Read and control from 8 sensors per board from 0 to 5 volts!ProXR Enhanced Firmware Installed
This board has ProXR Firmware installed that responds to the full ProXR Command Set. The ProXR Firmware is the industry leading firmware for controlling relays with more commands and functionality than any other board on the market. The list of commands and perameters this board is capable of is extensive. ProXR Enhanced is the newly released enhanced version of the ProXR Firmware with more commands, more functionality and better control than ever before! For a detailed list of all the commands with descriptions see our ProXR Enhanced Command Summary.RoHS Option
Order your board led free and be RoHS Compliant. If your requirements are for RoHS compliant parts this board can be ordered to be manufactured with RoHS compliant led free parts and solder. Just look for the RoHS option at checkout.
5-Year Warranty/Money Back Guarantee
ProXR Lite series controllers are guaranteed against manufacturing and functionality defects for a full 5 years! Not to mention a 30-day money back guarantee! If for any reason you are not happy with a relay purchased from Relay Pros, simply return it within 30 days and we will give you your money back! Controllers that are damaged by our customers will not of course be warranted under any circumstances.Thousands of Relay Cycles
ProXR Lite series controllers are designed for long life, you should expect to get years of service from your controller and literally thousands of cycles from the relays onboard. With a 5-year warranty and a money back guarantee you have nothing to loose! Place your order now, while everything is in front of you.Shipping
The boards sold are brand new units shipped from our office conveniently located in Missouri. These boards are completely tested before they are released for shipping With so many boards on our site it is impossible to stock boards, please allow two to three days production time for your order to ship.ProXR Control Is Here!
A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a lists of great features:- User Friendly Board Design
- "Wall Wart" or direct power capability
- Relay status light bar
- XR Expansion Port
- Screw terminal or direct relay connections make connecting to the board easy
- ProXR Features
- Works with the full ProXR Command Set
- 8-Channel 8/10-Bit Analog to Digital Converter
- Highly reliable relay with industry leading command set
- 16 programmable timers available
Makes Wireless Control as Easy as Talking to a Serial Port on your Computer!
A/D Conversion on the
Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into select boards mostly 4 & 8 channel, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.A/D Sample Programs Available
Eight Different A/D Sample programs are available in the Component Library. These samples are available as a free download and are compatible with Visual Studio.Resources
| NCD Base Station Software |
Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device. |
| 802.15.4 Quick Start Guide | 802.15.4 Quick Start Guide Understanding the 802.15.4 Interface and configuration |
| ProXR Quick Start Guide | ProXR Quick Start Guide Understanding configuration options and sending commands |
| A/D Quick Start Guide | A/D Quick Start Guide Understanding Analog to Digital Conversion |
| Download USB Drivers | Download Latest USB Virtual COM Port Drivers (Used by the IEEE 802.15.4 Modem) |
| Configuration Utility | Download Latest X-CTU ZigBee Configuration Utility (Digi X-CTU Software lets you set advanced features of the IEEE 802.15.4 Module, not required for most applications) |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
| Wiring Diagrams | Wiring Diagrams will help you understand how to connect to your devices and use relays as a form of control logic |

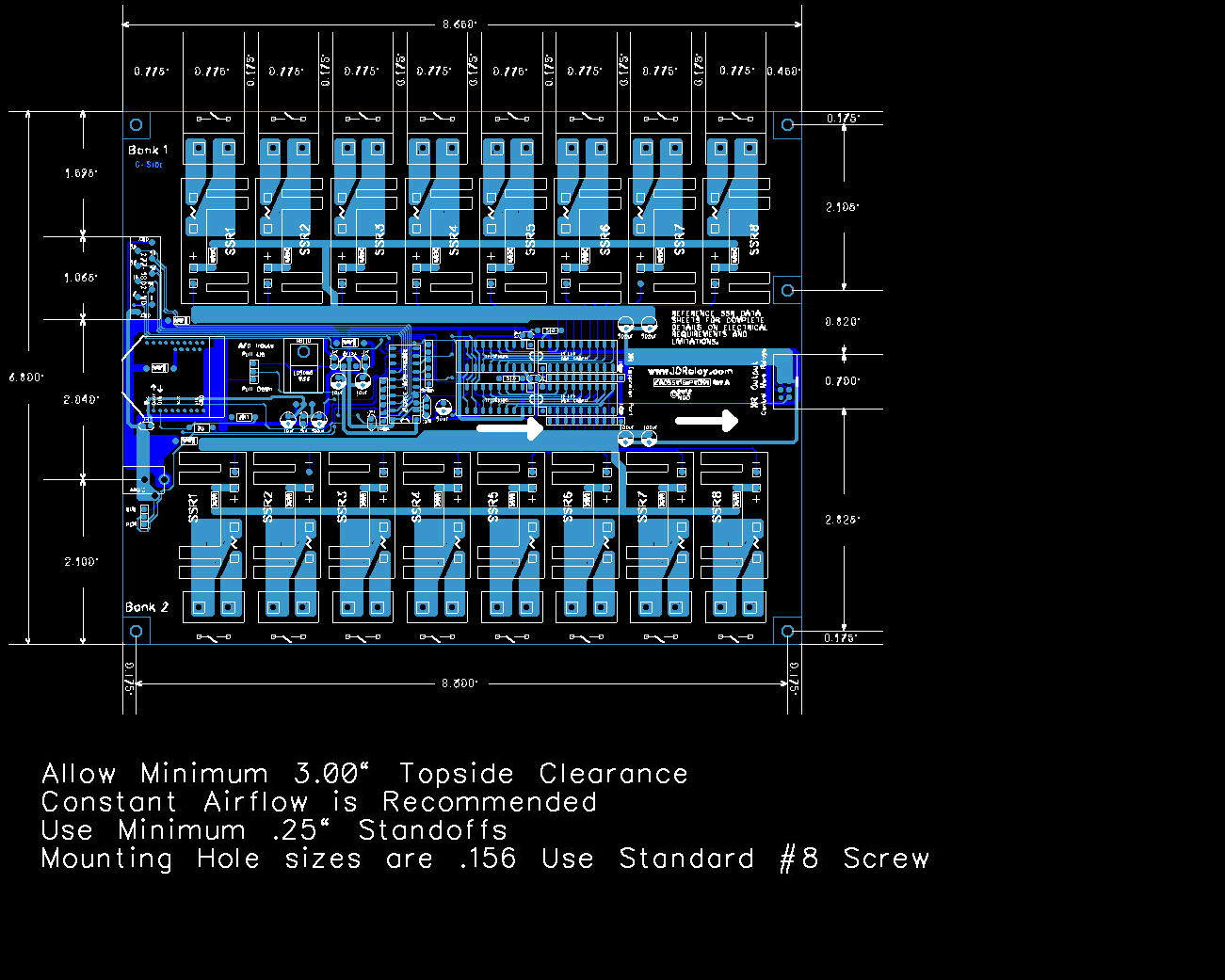

| Mechanical Drawing | Mechanical Drawing for this board |
Choose a Solid State Relay for This Controller: |
|||
|
Crydom |
 |
2A 240VAC Normally Open SPST Zero Crossing Turn On Built-In Snubber Circuit For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature D2W Series Data Sheet |
$12.00/each |
|
Crydom |
 |
5A 240VAC Normally Open SPST |
$15.00/each |
|
Crydom |
 |
5A 240VAC Normally Open SPST |
$16.00/each |
|
Crydom |
 |
25A 240VAC Normally Open SPST Random Turn On For Use with Inductive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet |
$28/each |
|
Crydom |
 |
25A 480VAC Normally Open SPST Zero Crossing Turn On For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet |
$30/each |
|
Crydom |
 |
3A 60VDC Normally Open SPST For Use with Resistive or Inductive Loads DC Switching ONLY .02A Minimum Load Required 1.5V Maximum On-State Voltage Drop -40 to 80°C Operating Temperature PF Series Data Sheet DC Solid State Connection Diagram |
$24/each |
TYPE G - 45 Day Lead TimeCrydom |
 |
20A 60VDC Normally Open SPST For Use with Resistive or Inductive Loads DC Switching ONLY No Minimum Load Required .1V Maximum On-State Voltage Drop -30 to 80°C Operating Temperature CX Series Data Sheet |
$65/each |
| NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com. | |||
802.15.4 Wireless 16-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D | |
|
Quantity in Basket:
None
Code: ZADSSR16XProXR_802154 Price: $343.00 Shipping Weight: 1.00 pounds | |
| 802.15.4 Wireless 16-Channel Solid State Relay Controller + 8-Channel 8/10-Bit A/D | |
Computer Control
Mobile Device Compatible
Stand-Alone
Light Dimmers
Additional Products
Product Support
