ZB ZigBee Relay Controller with an XR Expansion Port
Take all the Power of the ProXR Series Relay Controllers...add a Digi ZB ZigBee Compliant Interface: Remote Data Collection and Control is Effortless!
The latest Buzz in Wireless Technology is ZB ZigBee. ZB ZigBee is a great way to communicate data throughout buildings (or even across town) because it uses all the devices in the area to make sure your data arrives at its intended destination. ZB ZigBee automatically hops your data all over the ZB ZigBee Mesh Network, transparently forwarding your data to its intended destination. The beauty of ZB ZigBee is that you don't have to do anything except tell it where you want your data to go. The ZB ZigBee Mesh Network handles everything else for you. We have created a page dedicated to helping ZB ZigBee Mesh Network users understand this technology. So if you are a first time user of ZB ZigBee and you are looking for a great place to get started, see our article!
By combining the power of ZB ZigBee Mesh Networking with our ProXR series relay controllers, you can take advantage of our powerful ProXR command set for data collection and control, in combination with many wireless ZB ZigBee Mesh Networking features. ZB ZigBee is a perfect integration of good speed and excellent reliability, and for the first time, you can now improve data reliability by adding routers between the computer and far away devices.
Here is a quick rundown of what you should expect from ZB ZigBee Mesh Network:
Plug a ZB ZigBee Coordinator into the USB Port of your computer. The Coordinator will be used to communicated to your wireless ZB ZigBee Mesh Network. The Coordinator will mount as a COM port on your PC. Open the COM port and start sending data to the Coordinator. The Coordinator will forward your data to any or all devices on the ZB ZigBee Mesh Network.
|A ZB ZigBee Mesh Network consists of up to three components:|
If you are already using one of our ProXR series controllers, then integrating ZB ZigBee will be very easy. ZB ZigBee actually adds a command set to the ProXR command set. You send ZB ZigBee commands to talk to the network, and specify which device you want to talk to, you then send ProXR commands to the individual devices to activate relays and collect data. ZB ZigBee in its power-on state is like having a wireless serial port. Using ZB ZigBee commands give you the power to communicated to a complex network of wireless devices with incredible ease.
With all the control and backward/forward compatibility you have come to expect from the ProXR command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
NEW TO MESH NETWORKING? GET STARTED HERE
LEARN ABOUT THE ProXR COMMAND SET HERE
|NCD Base Station Software||Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device.|
|ZigBee Quick Start Guide||ZigBee Quick Start Guide Understanding ZigBee Mesh and configuration|
|ProXR Quick StartGuide||ProXR Quick Start Guide Understanding configuration options and sending commands|
|A/D Quick Start Guide||Download A/D Quick Start Guide Understanding Analog to Digital Conversion|
|Download USB Drivers||Download Latest USB Virtual COM Port Drivers (Used by the ZB ZigBee Coordinator)|
|Configuration Utility||Download Latest X-CTU ZB Mesh Configuration Utility (Digi X-CTU Software lets you set advanced features of the Coordinator, not required for most applications)|
|NCD Component Library||The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.|
|Wiring Diagrams||These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic|
|Mechanical Drawing||Mechanical Drawing for this board|

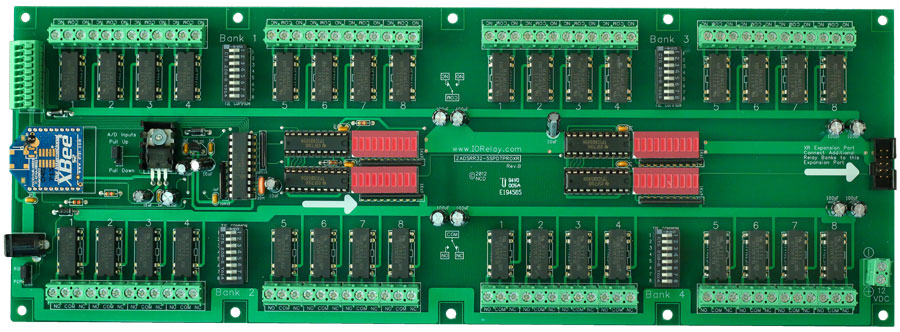

ZB ZigBee Reed Relay Controller 32-Channel .5A SPDT + 8-Channel 8/10-Bit A/D
Quantity in Basket:
Shipping Weight: 5.00 pounds
|ZB ZigBee Reed Relay Controller 32-Channel .5A SPDT + 8-Channel 8/10-Bit A/D|
