Read Voltage Levels From 0-5 Volts with Analog to Digital Conversion
Network Relay Control with All the Benefits of Wireless Communications!
NCD Wi-Fi relay controllers offer a powerful and easy to use wireless solution for relay control. As many of our customers already know, working with Wi-Fi devices can be challenging because they must be associated to a wireless network, and must be configured with security protocols. This embedded WiFi Device supports all of the most popular security protocols for wireless security.
This device supports TCP/IP Communications over a Local Area Network or, if your network is configured properly, Internet Based Communications. Simply attach the device to your wireless network and access it through a socket connection.
You must have a WiFi Configuration Kit to Configure the particulars of the Wireless Network the Module will connect to. We have provided Base Station Software that makes configuring the device simple.
On the software side you'll need to install the FTDI Drivers, the .NET Framework v4, and download the NCD Base Station Software.
Just put the WiFi Module into the Configuration Kit, attach the USB port of the Kit to your Computer and open the Base Station Software. From there simply select the COM Port, select Connect, and then select Enter Command Mode. After that simply fill in the information for your wireless network and application and then select the "Please Fill All Fields and Click This Button to Setup" button and they module will run through a series of commands and you're ready to control your board.
|NCD Base Station Software||Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device.|
|Wi-Fi Quick Start Guide||Wi-Fi Quick Start Guide|
|ProXR Quick Start Guide||ProXR Quick Start Guide Understanding configuration options and sending commands|
|A/D Quick Start Guide||A/D Quick Start Guide Understanding Analog to Digital Conversion|
|USB Drivers||USB Drivers required to communicate to the WiFi Configuration Kit|
|NCD Component Library||The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics.|
|Wiring Diagrams||These Wiring Diagrams will help you understand how to connect to your devices and use relays as a form of control logic|

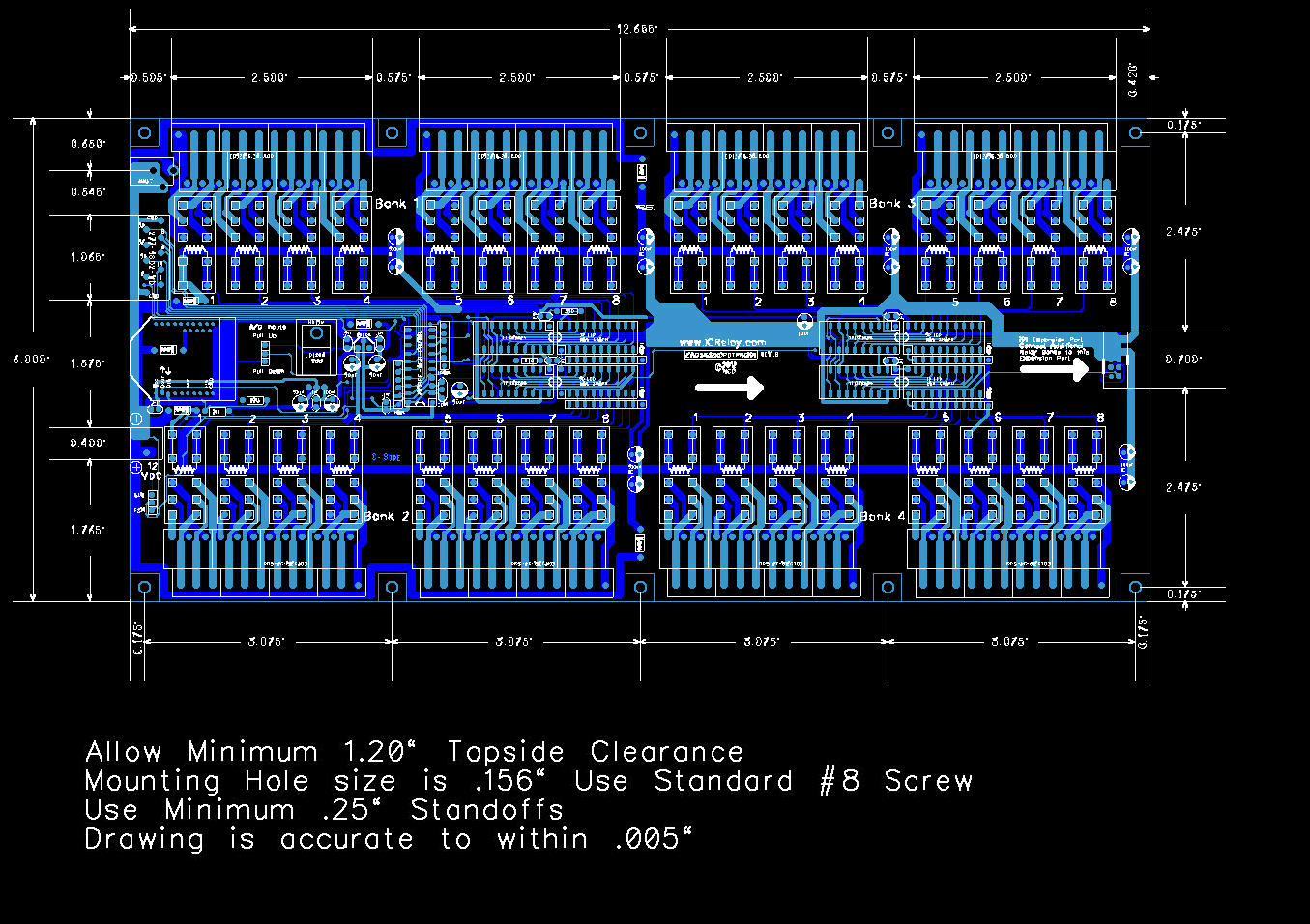

|Mechanical Drawing||Mechanical Drawing for this board|

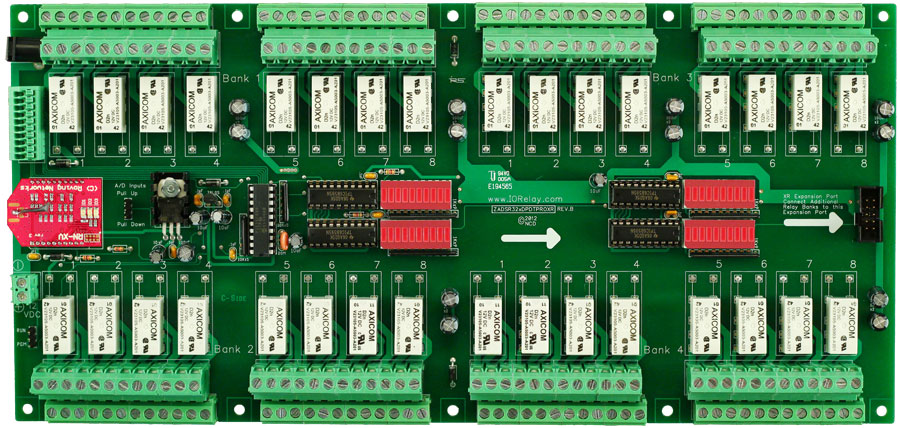

WiFi Relay Board 32-Channel 1 Amp DPDT + 8-Channel 8/10-Bit A/D
Quantity in Basket:
Shipping Weight: 5.00 pounds
|WiFi Relay Board 32-Channel 1 Amp DPDT + 8-Channel 8/10-Bit A/D|
