Embedded WiFi Relay Control and A/D Conversion

Read Voltage Levels From 0-5 Volts with Analog to Digital Conversion
Network Relay Control with All the Benefits of Wireless Communications!

Easy Security Configuration

NCD Wi-Fi relay controllers offer a powerful and easy to use wireless solution for relay control. As many of our customers already know, working with Wi-Fi devices can be challenging because they must be associated to a wireless network, and must be configured with security protocols. This embedded WiFi Device supports all of the most popular security protocols for wireless security.

Easy Software Development

This device supports TCP/IP Communications over a Local Area Network or, if your network is configured properly, Internet Based Communications. Simply attach the device to your wireless network and access it through a socket connection.

Configuring the WiFi Module

You must have a WiFi Configuration Kit to Configure the particulars of the Wireless Network the Module will connect to. We have provided Base Station Software that makes configuring the device simple.

On the software side you'll need to install the FTDI Drivers, the .NET Framework v4, and download the NCD Base Station Software.

Just put the WiFi Module into the Configuration Kit, attach the USB port of the Kit to your Computer and open the Base Station Software. From there simply select the COM Port, select Connect, and then select Enter Command Mode. After that simply fill in the information for your wireless network and application and then select the "Please Fill All Fields and Click This Button to Setup" button and they module will run through a series of commands and you're ready to control your board.

DPDT Relay Controller

This device has DPDT relays installed.  A single DPDT relay is made up of 2 SPDT switches.  Each relay acts as two switches that are activated at the same time.  This allows two independent signals to be switched at one time.  In effect, there are two independent switches on a single DPDT relay - they will always switch together.


There are two connectors with Normally Open, Normally Closed and Common for each relay allowing two separate connections.  The picture above shows the 4-channel connectors.  The diagram to the right shows the how the arms of the common connector swing from the Normally Closed to the Normally Open positions when energized.  Wiring to either the NO or NC can produce your desired results.  For more information on selecting the correct relay amperage for your application see Choosing a Proper Amperage.

Easy Software Development

Most of our customers write their own program for controlling these devices. Since you can use almost any programming language, you can use one that is most familiar to you so you don't have to learn a new language.  These boards support the Serial Port Profile, meaning they will mount to the computer as a virtual com port. This makes it very easy to send commands to the device.

Plug-In for Visual Studio

The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line.  The samples can be run in Visual Studio and fully customizable to your needs.  Over 40 samples included with this free download!  Component Library.

Base Station Software

Base Station will assist you in learning how this device functions and is the ultimate reference tool for setting up, testing and controlling this device.  Base Station software supports every feature of this device - no other controller manufacturer even comes close to offering this type of software.  Base Station works by communicating with your controller to identify the model and provides the appropriate graphical user interface for setting up and testing the identified device.  To help you get started and learn this controller Quick Start Guides are available for just about every feature.  As you discover a feature in Base Station a link is provided where you can easily download the Quick Start Guide.

ProXR Relay

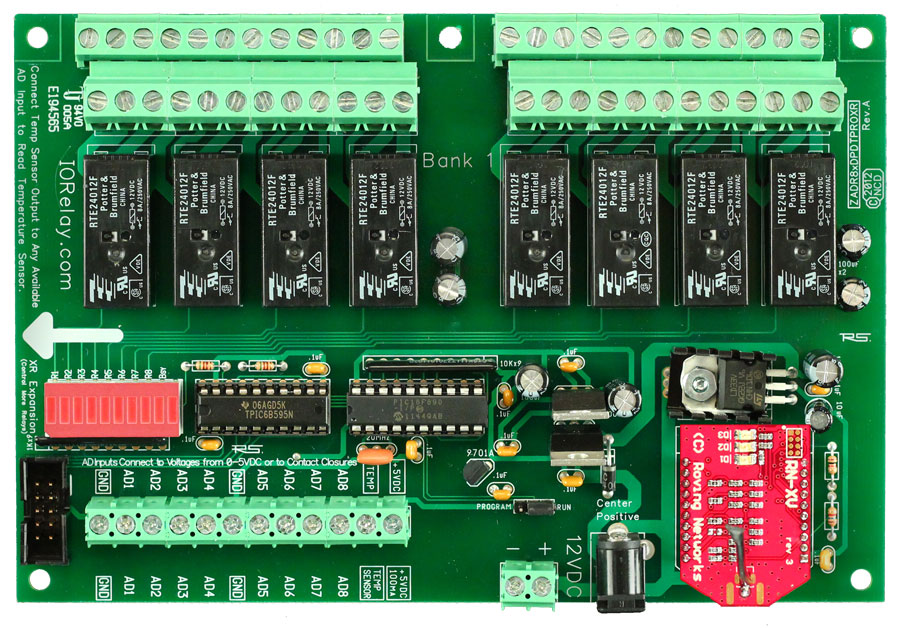

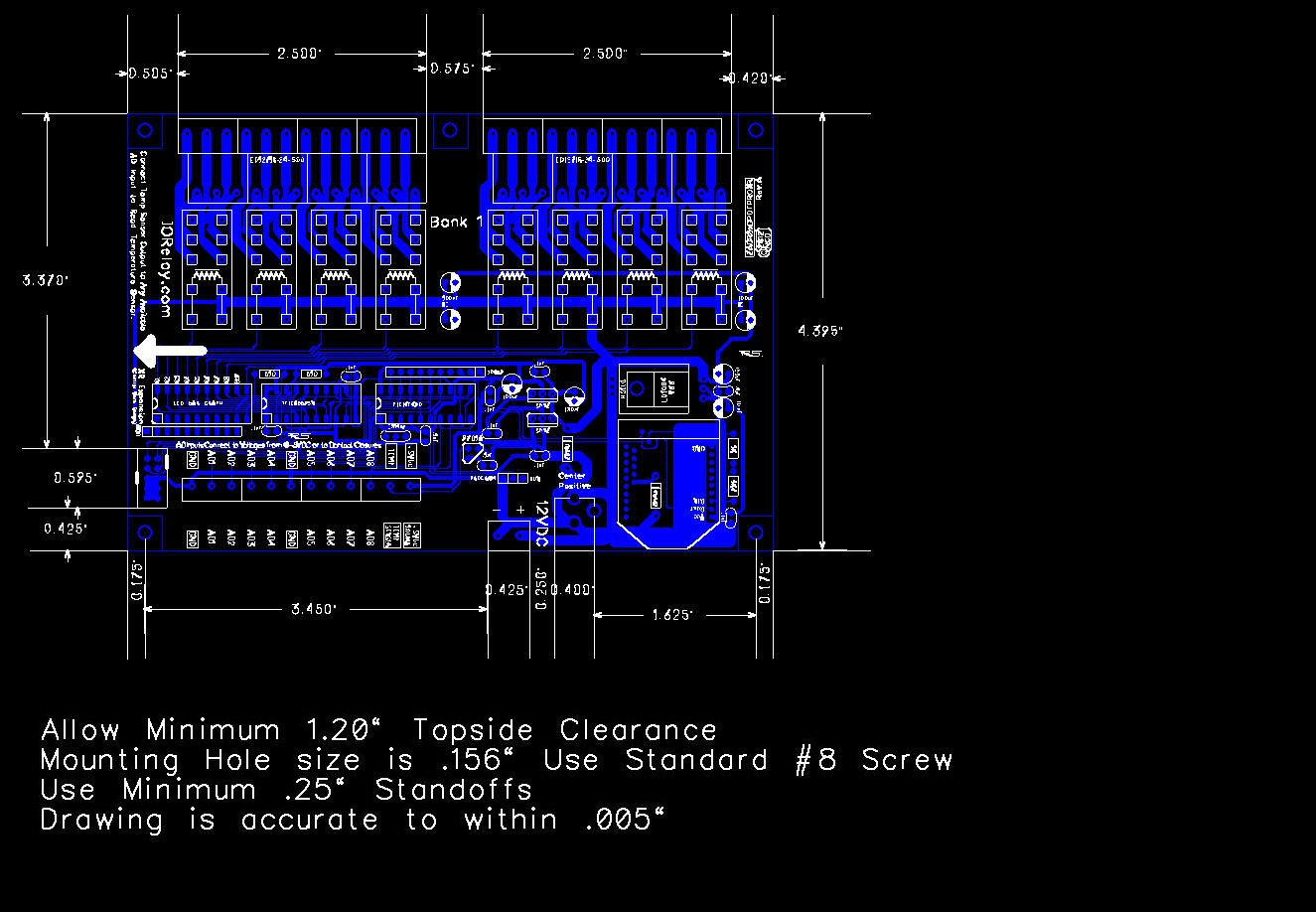

We've looked at the interface and the programming now let's take a look at the board design itself.  The ProXR series controllers are manufactured by hand for a highly accurate and reliable design.  Equipped with the XR Expansion Port additional relays can be easily added.  Fully tested before they leave the production facility each ProXR Lite controller is ready to stand up to rigorous demands from heat, cold or vibration.  The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions.  Take it from us, these controllers will hold up!

Add Relays as Your Needs Grow

The ProXR series controllers are expandable up to 256 total relays.  The controller is fitted with an XR Expansion Port where you can add expansion boards to this relay.  Expansion boards can be added until you reach 256 total relays.  The Expansion Boards get their logic from the main board and will require 12 VDC power. Expansion boards do not need to be the same relay amperage as the main board or other expansion boards.

16 User-Programmable Timers

The ProXR Series controllers have 16 user-programmable timers. Each independent timer can be assigned to any relay, and can be programmed to hold the relay in the On state, or to pulse the relay at the end of the timer.  The ProXR timing features are ideally suited for Watchdog, Keep Alive, and Server Reboot applications, as well as sprinkler systems, gate openers, and lighting applications.  Relay Timing Features support two modes of operation: Duration and Pulse. Duration timing is ideally suited where a device should be activated for a period of time. Pulse timing mode is designed specifically for server reboot applications, whereby, if the timer is not reset periodically by your software, the timer will run out and reboot your computer.

Read Analog Sensors

This ProXR controller offers a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control.  Read and control from 8 sensors per board from 0 to 5 volts!

ProXR Enhanced Firmware Installed

This board has ProXR Firmware installed that responds to the full ProXR Command Set.  The ProXR Firmware is the industry leading firmware for controlling relays with more commands and functionality than any other board on the market.  The list of commands and perameters this board is capable of is extensive.  ProXR Enhanced is the newly released enhanced version of the ProXR Firmware with more commands, more functionality and better control than ever before!  For a detailed list of all the commands with descriptions see our ProXR Enhanced Command Summary.

RoHS Option

Order your board led free and be RoHS Compliant.  If your requirements are for RoHS compliant parts this board can be ordered to be manufactured with RoHS compliant led free parts and solder.  Just look for the RoHS option at checkout.

5-Year Warranty/Money Back Guarantee

ProXR Lite series controllers are guaranteed against manufacturing and functionality defects for a full 5 years!  Not to mention a 30-day money back guarantee!  If for any reason you are not happy with a relay purchased from Relay Pros, simply return it within 30 days and we will give you your money back!  Controllers that are damaged by our customers will not of course be warranted under any circumstances.

Thousands of Relay Cycles

ProXR Lite series controllers are designed for long life, you should expect to get years of service from your controller and literally thousands of cycles from the relays onboard.  With a 5-year warranty and a money back guarantee you have nothing to loose!  Place your order now, while everything is in front of you.

Shipping

The boards sold are brand new units shipped from our office conveniently located in Missouri.  These boards are completely tested before they are released for shipping  With so many boards on our site it is impossible to stock boards, please allow two to three days production time for your order to ship.

ProXR Control Is Here!

A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market.  Here's a lists of great features:

User Friendly Board Design
• "Wall Wart" or direct power capability
• Relay status light bar
• XR Expansion Port
• Screw terminal or direct relay connections make connecting to the board easy

ProXR Features
• Works with the full ProXR Command Set
• 8-Channel 8/10-Bit Analog to Digital Converter
• Highly reliable relay with industry leading command set
• 16 programmable timers available

A/D Conversion on the

Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution.  This is particularly useful for reading temperature sensors (one temperature sensor is built into select boards mostly 4 & 8 channel, shared with analog input number 8).  A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.

A/D Sample Programs Available

Eight Different A/D Sample programs are available in the Component Library.  These samples are available as a free download and are compatible with Visual Studio.
