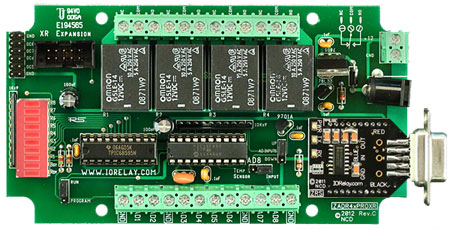

ZADR410PROXR_ZRS RS232 Relay
Serial Relay Controller 4-Channel 10 Amp SPDT + 8-Channel 8/10-Bit A/D
The latest version of the ProXR Series have interchangeable communications modules that can be swapped at will. Simply disconnect all power from the board and pull off one module and replace it with another.
Summary of RS232 Communications
- Supports any available COM port
- Supports 2-way communications
- Three RS-232 connection options
- Optional USB to RS232 Adapter allows easy connection to your computer's USB port
- Expandable to control up to 256 Relays using the XR Expansion Port
- 8 Channels of 8-bit A/D Inputs
- Control one relay or all 256 at once with manual or automatic refreshing command set
- Full ProXR Command Set
Video Resources
(Select a thumbnail to view the video)Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Resources:
This Product:
Related Products:
ZADR45PROXR_ZRS
 |
Serial Relay Controller 4-Channel 5 Amp SPDT + 8-Channel 8/10-Bit A/D |
| Stock#: ZADR45PROXR_ZRS | |
| 1-9 | $169.00 |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
RS-232 Serial Relay Controller
Our RS-232 Relay Boards are fully E3C complaint, allowing up to 256 NCD devices to share a single RS-232 serial port. Mix and match up to 256 devices in any combination. Speak to each device individually or all devices at once.
To control the this Relay Controller, simply connect a data and ground wire between the Relay Controller and computer or microcontroller. Provide +12 Volts DC to the board, and send ASCII character codes to control the relays.
Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on our Serial Relay Controllers. Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.
Features include no-click startup, LED status lights, and E3C compliance. Relays can be controlled at 9600 baud and the board is compatible with ANY computer or microcontroller capable of delivering RS-232 data.
RS232 Relay with ProXR Command Set
and A/D Conversion
The Most Powerful Command Set Available Anywhere
Read Sensors & Contact Closures with Built-In A/D Conversion
ProXR - The Most Powerful Relays Available!
RS-232 ProXR Relay Controller
This ProXR controller is built with the most powerful command set available anywhere. Put simply, ProXR is a standardized set of commands for controlling relays. This controller is also equipped with Analog to Digital conversion which is simply converting a voltage in the range of 0 to 5VDC into a number that can be processed by custom software that you develop. The applications are limitless and the data that you receive such as light levels and temperature levels can easily activate relays when A/D levels are reached. See more on A/D Conversion below.
Once powered up, the relay controller waits for a command. A command consists of a few bytes of data. Usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command. You can send commands to activate relays, deactivate relays, control all the relays at one time, plus you can send commands that tell a relay to turn on for a few seconds, minutes, or hours. You can assign 16 timers to any of the 256 relays, and set the timers to go off after the duration has expired. Look at the ProXR Command Set to see the full list of commands available.
The features list of the ProXR series controllers is extensive. Our ProXR Software helps get you acquainted with the powerful command set. To download, look for the ProXR Software in the Resources section to the right and bottom of this page. The ProXR Manual and the mechanical drawing with dimensions and hole layouts can also be found in the Resources section.
Out of the box, the ProXR series controllers are ready to control 256 relays. You may not have 256 relays just yet, but if your application grows, then the controller is ready to grow with you. The ProXR series controllers are built from the ground up to be expanded. When you need more relays, the XR Expansion port will allow you to add another bank of relays (any kind you need), with programming changes taking minutes instead of hours. No complicated protocols, just simplicity, built into the controller from the very beginning.
Connect this board to the USB port of your computer using a USB to Serial adapter. The USB to Serial Adapter is to be used with the Quick Start Kit and is available at checkout.
Resources
 |
NEW TO RS232 COMMUNICATIONS? GET STARTED HERE Click the above link for an exclusive article on RS232 Communications |
| RS232 Relay Article | RS232 Relay Article |
| Download Manual | Download the ProXR Manual Manual |
| ProXR Software | Download Example Software and Source Code |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes four example applications compatible with the Pro Series. |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |
| Mechanical Drawing | Mechanical Drawing for this board |
