XSC Long Range Wireless Controller with A/D

Take all the Power of the ProXR Series Relay Controllers
...add a Digi XSC Long Range Wireless Interface
Long Range Wireless Control is Effortless!

2-Mile Wireless Relay

XSC is not one of the most widely known wireless technologies but it is easy to setup and capable of transmitting up to 2-miles very reliably.  An XSC modem plugs into your USB port of your computer (available at checkout) and will transmit to the XSC relay with a standard range of 2-mile and up to 15 miles.  We have tested the 2-mile range and it's very reliable, anything over this will require a rooftop antenna to extend the range to 15 miles (untested).  You can choose module installed in the modem and board at checkout.

XSC Wireless Modules

This board is equipped with an XSC Module.  The XSC communications module adds long range wireless communications to the board.  The module is powered from the board.  The board itself will require 12 volts of power and can be hard wired or you can purchase a "wall wart" type transformer at checkout.

Line-Of-Site Operation

As with any wireless technologies, for optimal performance it needs to be line-of-sight.  In other words the antennas of the board and modem must "see" each other to get the optimal range or even be able to communicate at all.  Mounting slots on the modem make it easy to attach to a wall to allow for line-of-site operation.

Standard Range Antenna

The XSC900SR Standard Range Antenna (distance of 2 miles) is included with the price of the controller.  The antenna has a short pig tail that connects to a button on the XSC module.

Long Range Antenna

An outside antenna will need to be installed in order to reach the 15 mile limit of these devices.  When you choose this optional antenna we will include everything you will need to install this except for the pole.  Included will be the Cushcraft PC9013 antenna, 20 feet of cable (longer cables are not recommended) and the connector to connect the board to the cable.  Purchase a pole to mount the antenna from your local home improvement store and install the antenna.  Connect the board to the antenna via the provided cable and start sending commands.

XSC Wireless Modem

Plug the UXSCMSR_ZIGMO standard range modem (2-miles) or UXSCMLR_ZIGMO long range modem into the USB Port of your computer.  The modem will mount as a COM port on your PC.  Open the COM port and start sending data to the modem.  The modem will forward your data to all Wireless XSC compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).  Look for the modem option at checkout.

Sending Commands

Base Station Software is available at no charge to get you up and running fast (more on Base Station below).  Once powered up, the controller waits for a ProXR command.  A command consists of a few bytes of data in numerical format (see full command set) usually between 2 and 6 bytes.  Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.  If a command was sent to read the status of the relay the status is sent back.

Induction Suppression

Add years to the lifespan of the relay by adding an Induction Capacitor to the line.  Perhaps the most overlooked aspect of relay control is proper handling of inductive loads. Inductive loads can best be defined as anything with a magnetic coil, such as a motor, solenoid, or a transformer.  Controlling a inductive load using this relay controller requires the use of induction suppression capacitors.  The purpose of this capacitor is to absorb the high voltages generated by inductive loads, blocking them from the contacts of the relay.  Without this capacitor, the lifespan of the relay will be greatly reduced.  Induction can be so severe that it electrically interferes with the microprocessor logic of our controllers, causing relay banks to shut themselves down unexpectedly.  In the case of Ethernet devices, customers may experience loss of communications until the device is reconnected.  Capacitors that we offer are available at checkout, for more information view our Induction Suppression Video.

SPDT Relay Controller

This device has SPDT relays installed.  SPDT Single Pole Double Throw Relays have three connections - Common, Normally Open, and Normally Closed.  When the relay is off, the common is connected to the normally closed connection of the relay.  When the relay coil is energized, the Common swings over to the Normally Open Connection of the Relay.  You can wire the device you are switching to either the Normally Open or the Normally Closed position.  For more information on selecting the correct relay for your application see Choosing a Proper Amperage.

Easy Software Development

Most of our customers write their own program for controlling these devices. Since you can use almost any programming language, you can use one that is most familiar to you so you don't have to learn a new language.  These boards support the Serial Port Profile, meaning they will mount to the computer as a virtual com port. This makes it very easy to send commands to the device.

Plug-In for Visual Studio

The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line.  The samples can be run in Visual Studio and fully customizable to your needs.  Over 40 samples included with this free download!  Component Library.

Base Station Software

Base Station will assist you in learning how this device functions and is the ultimate reference tool for setting up, testing and controlling this device.  Base Station software supports every feature of this device - no other controller manufacturer even comes close to offering this type of software.  Base Station works by communicating with your controller to identify the model and provides the appropriate graphical user interface for setting up and testing the identified device.  To help you get started and learn this controller Quick Start Guides are available for just about every feature.  As you discover a feature in Base Station a link is provided where you can easily download the Quick Start Guide.

ProXR Relay

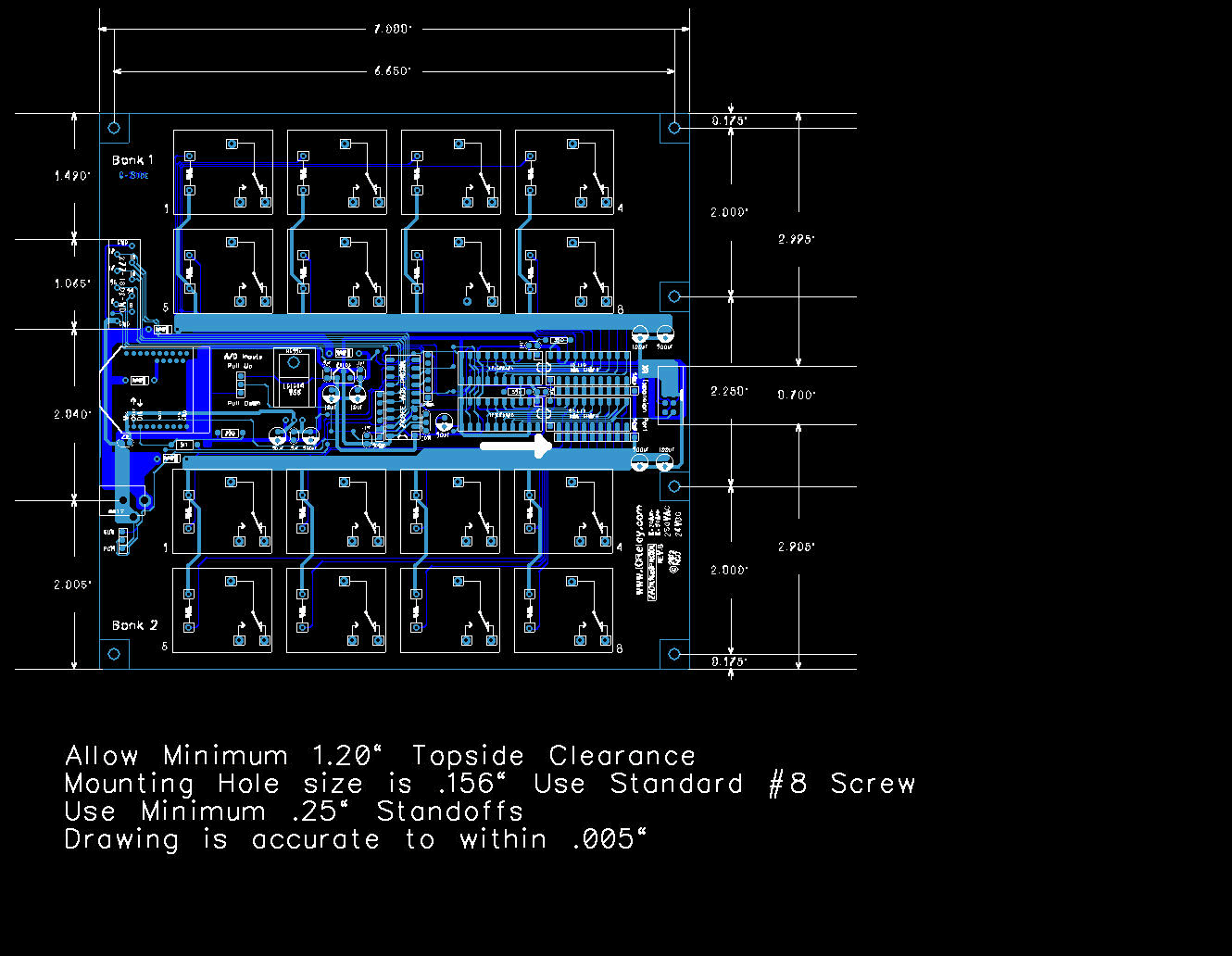

We've looked at the interface and the programming now let's take a look at the board design itself.  The ProXR series controllers are manufactured by hand for a highly accurate and reliable design.  Equipped with the XR Expansion Port additional relays can be easily added.  Fully tested before they leave the production facility each ProXR Lite controller is ready to stand up to rigorous demands from heat, cold or vibration.  The best test of all is the numerous boards in the field from customers all over the world in all sorts of conditions.  Take it from us, these controllers will hold up!

Add Relays as Your Needs Grow

The ProXR series controllers are expandable up to 256 total relays.  The controller is fitted with an XR Expansion Port where you can add expansion boards to this relay.  Expansion boards can be added until you reach 256 total relays.  The Expansion Boards get their logic from the main board and will require 12 VDC power. Expansion boards do not need to be the same relay amperage as the main board or other expansion boards.

16 User-Programmable Timers

The ProXR Series controllers have 16 user-programmable timers. Each independent timer can be assigned to any relay, and can be programmed to hold the relay in the On state, or to pulse the relay at the end of the timer.  The ProXR timing features are ideally suited for Watchdog, Keep Alive, and Server Reboot applications, as well as sprinkler systems, gate openers, and lighting applications.  Relay Timing Features support two modes of operation: Duration and Pulse. Duration timing is ideally suited where a device should be activated for a period of time. Pulse timing mode is designed specifically for server reboot applications, whereby, if the timer is not reset periodically by your software, the timer will run out and reboot your computer.

Read Analog Sensors

This ProXR controller offers a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control.  Read and control from 8 sensors per board from 0 to 5 volts!

ProXR Enhanced Firmware Installed

This board has ProXR Firmware installed that responds to the full ProXR Command Set.  The ProXR Firmware is the industry leading firmware for controlling relays with more commands and functionality than any other board on the market.  The list of commands and perameters this board is capable of is extensive.  ProXR Enhanced is the newly released enhanced version of the ProXR Firmware with more commands, more functionality and better control than ever before!  For a detailed list of all the commands with descriptions see our ProXR Enhanced Command Set.

RoHS Option

Order your board led free and be RoHS Compliant.  If your requirements are for RoHS compliant parts this board can be ordered to be manufactured with RoHS compliant led free parts and solder.  Just look for the RoHS option at checkout.

5-Year Warranty/Money Back Guarantee

ProXR Lite series controllers are guaranteed against manufacturing and functionality defects for a full 5 years!  Not to mention a 30-day money back guarantee!  If for any reason you are not happy with a relay purchased from Relay Pros, simply return it within 30 days and we will give you your money back!  Controllers that are damaged by our customers will not of course be warranted under any circumstances.

Thousands of Relay Cycles

ProXR Lite series controllers are designed for long life, you should expect to get years of service from your controller and literally thousands of cycles from the relays onboard.  With a 5-year warranty and a money back guarantee you have nothing to loose!  Place your order now, while everything is in front of you.

Shipping

The boards sold are brand new units shipped from our office conveniently located in Missouri.  These boards are completely tested before they are released for shipping  With so many boards on our site it is impossible to stock boards, please allow two to three days production time for your order to ship.

ProXR Control Is Here!

A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market.  Here's a lists of great features:

User Friendly Board Design
• "Wall Wart" or direct power capability
• Relay status light bar
• XR Expansion Port
• Screw terminal or direct relay connections make connecting to the board easy

ProXR Features
• Works with the full ProXR Enhanced Command Set
• 8-Channel 8/10-Bit Analog to Digital Converter
• Highly reliable relay with industry leading command set
• 16 programmable timers available

A/D Conversion on the

Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution.  This is particularly useful for reading temperature sensors (one temperature sensor is built into select boards mostly 4 & 8 channel, shared with analog input number 8).  A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.

A/D Sample Programs Available

Eight Different A/D Sample programs are available in the Component Library.  These samples are available as a free download and are compatible with Visual Studio.
