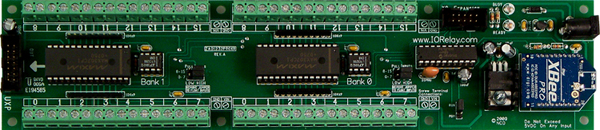

ZAD1232PROXR A/D Converter
802.15.4 Wireless 32-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port
Resources
Product Resources:
Software Development Tools:
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
Wiring Diagrams Wiring Diagrams: several simple ways to wire a relay for various applications. |
|
Video Resources
(Select a thumbnail to view the video)ZigBee Intro
Learn about the ZigBee Wireless Communications and how it stacks up to other Wireless Communication Protocols we use
ZigBee Setup
Watch as we show you how to Set Up the Hardware and the Software necessary to use your Controller
ZigBee Troubleshooting
Learn how to Troubleshoot your ZigBee Relay Controllers using the XCTU Software
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wireless Communications
Learn the basics of wireless communications and find the right wireless controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Wireless Range Test
Test of the range of our Wireless Communication Options
802.15.4 Range Test
Test of the range of our IEE 802.15.4 Wireless Communication Options
Please Make Sure Solid State Relays Can be Used in Your Application (CLICK HERE)
Features
- Expandable to 48 A/D Channels
- 12-Bit A/D Conversion
- Wireless USB Interface Mounts as a Virtual COM Port on your PC for Easy Programming and 100% Compatibility Across ALL Operating Systems
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- Add Relays to this Controller is your Needs Ever Grow
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
- CPU Status LEDs Show Command Processing Activity
This Product:
Related Products:
ZAD1216PROXR
 |
802.15.4 Wireless 16-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port |
| Stock#: ZAD1216PROXR | |
| 1-9 | $159.00 |
ZAD1248PROXR
 |
802.15.4 Wireless 48-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port |
| Stock#: ZAD1248PROXR | |
| 1-9 | $377.00 |
www.controlanything.com
Since October, 1995
ProXR Enhanced with 8/12-Bit Analog to Digital Conversion
Analog to Digital Conversion allows
you to Read Voltage Levels from 0-5VDC.
XR expansion port Allows you to Control
up to 256 External Relays:
Read and Control with the Same Board!
This Analog to Digital Converter allows you to read voltage levels from 0-5 volts using 8-bit or 12-bit resolution. This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8). A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet.
Wireless 802.15.4 Communications
Take all the Power of the ProXR Series Relay Controllers; add a MaxStream Wireless 802.15.4 Compliant Interface and Remote Data Collection and Control is Effortless!
It works like this. Plug our Wireless 802.15.4 modem into the USB Port of your computer. The modem will mount as a COM port on your PC. Open the COM port and start sending data to the modem. The modem will forward your data to all Wireless 802.15.4 compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).
What is ProXR?
ProXR refers to a set of standardized commands used for computer control and data collection. A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility. This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software. ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Bluetooth, Fiber Optic, Wireless ZigBee/Mesh, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer. Let ProXR controllers manage the rest. Detailed information about the ProXR command set can be found in the ProXR Manual.
Building a solid foundation for future hardware is what ProXR is all about. We have worked hard to modularize the ProXR firmware in such a way that it can support growth of features without sacrificing backward compatibility. Most controllers produced from 2007 onward will support our ProXR command set. These controllers will also include a XR Expansion Port, allowing you to add relays to any controller you choose. So if your needs for computer control increase, our controllers will be ready for your growth.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
802.15.4 Wireless 32-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port | |
|
Quantity in Basket:
None
Code: ZAD1232PROXR Price: $268.00 Shipping Weight: 1.00 pounds | |
