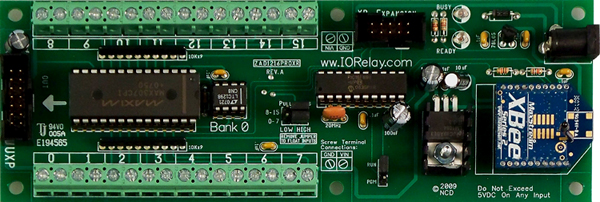

ZAD1216PROXR_ZBMESH A/D Converter

ZB ZigBee 16-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port


 Analog to Digital Converter
Data Collection and Control with Future Expandability in Mind.  This ProXR Series Controller is Feature Rich and Ready to Grow with your Needs!
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

ZB ZigBee 16-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port

$159.00/ea


Resources

Product Resources:

Download Manual Download Product Manual
Configuration Utility Download Latest X-CTU XSC Configuration Utility (Digi X-CTU Software lets you set advanced features of the XSC Module, not required for most applications)
Download Software Download Example Software and Source Code

Software Development Tools:

NCD Component Library The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code.  This free download includes many example applications covering a wide range of topics.

Wiring Diagrams:


Wiring Diagrams: several simple ways to wire a relay for various applications.




This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.



This movie will explain the different expansion options that can be used with our controllers.



Test of the range of our Wireless Communication Options



Test of the range of our XSC Wireless Communication Options

Solid State Relays Are Not Suitable for Some Applications.
Please Make Sure Solid State Relays Can be Used in Your Application (CLICK HERE)

Features

  • Expandable to 48 A/D Channels
  • 12-Bit A/D Conversion
  • Use a USB Coordinator to Talk to your ZB ZigBee Mesh Network.  USB Coordinator Mounts as a Virtual COM Port for Easy Software Development and 100% Compatibility Across ALL Operating Systems
  • Plug In, Open the COM Port and Start Sending Commands
  • Available as a Endpoint ZB Mesh Device Mesh Networking Endpoint Icon
    Available as a Router for Data Hopping Applications Mesh Networking Router Icon
    Coordinator Required Mesh Networking Coordinator Icon
  • Expandable to control up to 256 Relays using the XR Expansion Port
  • 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
  • Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
  • Add Relays to this Controller is your Needs Ever Grow
  • Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
  • CPU Status LEDs Show Command Processing Activity
Analog to Digital Converter
Analog to Digital Converter Mechanical Drawing

Mechanical Drawing

This Product:

ZAD1216PROXR_ZBMESH
Analog to Digital Converter
 ZB ZigBee 16-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port
Stock#: ZAD1216PROXR_ZBMESH
1-9 $159.00

Related Products:

ZAD1232PROXR_ZBMESH
Analog to Digital Converter
 ZB ZigBee 32-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port
Stock#: ZAD1232PROXR_ZBMESH
1-9 $268.00
ZAD1248PROXR_ZBMESH
Analog to Digital Converter
 ZB ZigBee 48-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port
Stock#: ZAD1248PROXR_ZBMESH
1-9 $377.00
QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
National Control Devices, LLC
www.controlanything.com
Since October, 1995

ProXR Enhanced with 8/12-Bit Analog to Digital Conversion

Analog to Digital Conversion allows
you to Read Voltage Levels from 0-5VDC.

XR expansion port Allows you to Control
up to 256 External Relays:

Read and Control with the Same Board!

This Analog to Digital Converter allows you to read voltage levels from 0-5 volts using 8-bit or 12-bit resolution.  This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8).  A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.  Built-In Pull-Up/Down Resistors keep the inputs quiet.

ZB ZigBee Communications

The latest Buzz in Wireless Technology is ZB ZigBee.  ZB ZigBee is a great way to communicate data throughout buildings (or even across town) because it uses all the devices in the area to make sure your data arrives at its intended destination.  ZB ZigBee automatically hops your data all over the ZB ZigBee Mesh Network,  transparently forwarding your data to its intended destination.  The beauty of ZB ZigBee is that you don't have to do anything except tell it where you want your data to go.  The ZB ZigBee Mesh Network handles everything else for you.  We have created a page dedicated to helping ZB ZigBee Mesh Network users understand this technology.  So if you are a first time user of ZB ZigBee and you are looking for a great place to get started, see our article!

By combining the power of ZB ZigBee Mesh Networking with our ProXR series relay controllers, you can take advantage of our powerful ProXR command set for data collection and control, in combination with many wireless ZB ZigBee Mesh Networking features.  ZB mesh is a perfect integration of good speed and excellent reliability, and for the first time, you can now improve data reliability by adding routers between the computer and far away devices.

Here is a quick rundown of what you should expect from ZB ZigBee Mesh Network:

Plug a ZB ZigBee Coordinator into the USB Port of your computer.  The Coordinator will be used to communicated to your wireless ZB ZigBee Mesh Network.  The Coordinator will mount as a COM port on your PC.  Open the COM port and start sending data to the Coordinator.  The Coordinator will forward your data to any or all devices on the ZB ZigBee Mesh Network.

A ZB ZigBee Mesh Network consists of up to three components:
Mesh Networking Coordinator Icon
Mesh Networking Communications Icon
Mesh Networking Router Icon
Mesh Networking Communications Icon
Mesh Networking Router Icon
Mesh Networking Communications Icon
Mesh Networking Endpoint Icon		 A Coordinator is Required because it allows your computer to talk to the ZB ZigBee Mesh Network.  Use only ONE coordinator in your ZB ZigBee Mesh Network.
A Router allows data to hop to another part of the ZB ZigBee Mesh Network.  It helps contribute to the network, and it can serve as an Endpoint device.  In other words, if a relay controller has the Router firmware installed, you can talk to this device directly, or data can be forwarded from this device to another device that may be too far away for the Coordinator to reach directly.  Routers are slower than endpoint devices, so use routers wisely.
An Endpoint device can also be a relay controller or many other types of NCD devices.  However, endpoint devices cannot forward data to other parts of the ZB ZigBee Mesh Network.  Endpoint devices are faster than router devices, so it is always wise to use Endpoint devices when possible, and router devices when required.
Learn More: Introduction to ZB ZigBee Mesh Networking.....

What is ProXR?

ProXR refers to a set of standardized commands used for computer control and data collection.  A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility.  This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software.  ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Bluetooth, Fiber Optic, Wireless ZigBee/Mesh, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer.  Let ProXR controllers manage the rest.  Detailed information about the ProXR command set can be found in the ProXR Manual.

Building a solid foundation for future hardware is what ProXR is all about.  We have worked hard to modularize the ProXR firmware in such a way that it can support growth of features without sacrificing backward compatibility.  Most controllers produced from 2007 onward will support our ProXR command set.  These controllers will also include a XR Expansion Port, allowing you to add relays to any controller you choose.  So if your needs for computer control increase, our controllers will be ready for your growth.

With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port.  All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.

ZB ZigBee 16-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port


  Quantity in Basket: None
Code: ZAD1216PROXR_ZBMESH
Price: $159.00
Shipping Weight: 1.00 pounds

RoHS (Lead Free) Options:
Non-RoHS Compliant
RoHS Compliant (+$10)
Do you need a Power Supply for this Device?:
No Thanks, I Alread Have a +12VDC Power Supply
120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+$24)
100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$36)
Please Choose a ZB ZigBee Mesh Wireless Option:
Please Choose ZB ZigBee Mesh Wireless Firmware Option:
Do you have a ZB ZigBee Mesh Coordinator (used to talk to a ZB Mesh network):
USB AT ZB ZigBee Mesh Coordinator (Recommended +$138)
USB API ZB ZigBee Mesh Coordinator (For Advanced Users +$138)
No, I Already Have the REQUIRED ZB ZigBee Mesh USB Coordinator
NOTICE: NCD ZB ZigBee Mesh Devices are NOT an ideal learning platform for ZB ZigBee Mesh Networking. If you are NOT familiar with how ZB ZigBee Mesh devices work, a development kit is REQUIRED as it is not possible for NCD technical support to teach and fully support the ZB ZigBee Mesh Communications Protocol. Please order part number: 602-1140-ND from www.DigiKey.com for Learning about ZB ZigBee Mesh. NCD Devices are FULLY Compatible with this development kit. Please check the box to the left to indicate you are aware that technical support will only be available to customers who are using the ZB ZigBee Mesh development kit.
NOTICE: This device uses the ZB ZigBee Mesh Networking wireless communications protocol, and should not be confused with IEEE 802.15.4 wireless devices which look very similar, but do not work together.
Which Version of Firmware would you like installed?:
V2.0 ProXR Standard 20MHz CPU 256 Relays 115.2K Baud Fixed Communications Interface
V3.0 ProXR Enhanced 64MHz CPU 512 Relays 2,000,000 Baud Changeable Communications Interface (+$50)
Do you need any Software for this Controller?:
No Software Needed
N-Button Software Allows you to Add Custom Buttons to your Desktop for Controlling Relays 40% Discount when Purchased with Controller Bundle Savings only $99 (Regularly $169)

Quantity:

ZB ZigBee 16-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port

Product Options:

When adding this device to your shopping cart, you will see several product options.  Choosing these options directs our staff to build the device so that it is ready for your application.  The following product options are available for this device.  Here is a detailed explanation of all product options currently available:

RoHS (Lead Free Options) Non-RoHS Compliant means this controller contains Lead and will be manufactured with some parts containing Lead, and is manufactured on the upper floor of our office, which is currently dedicated to producing most of our products, which contain Lead.
  RoHS Compliant means the controller was built using Lead Free Components, and is manufactured on the lower floor of our office, which is dedicated to Lead Free manufacturing.

Do you need a Power Supply for this Device?: Yes, Include a Computer Grade +12VDC Supply with 120-250VAC Input (US Spec)
Choosing YES to this option means we will include the PWR12 Power Supply.
  No Power Supply Included
Choose this option if you already have a 12V Computer Grade Regulated Power Supply.  Note that NCD Products are Suitable for use from an Automotive Power Supply as well.
Please Choose a ZB Mesh Wireless Option: This Option determines the type of ZB Mesh wireless module that will be installed in your controller.  Choosing the correct type of ZB Mesh wireless module is an important part of building a reliable ZB Mesh network.


XBee:
2 mW (+3 dBm) power output (up to 400 ft RF LOS range)
  • ISM 2.4 GHz operating frequency
  • U.FL connector, Chip antenna, or Wired Whip antenna
  • Industrial temperature rating (-40° C to 85° C)
  • Approved for use in the United States, Canada, Australia and Europe
  • Advanced mesh networking and low-power modes supported
    More Technical Details...(Off Site Link)


XBee-PRO:
50 mW (+17 dBm) power output
(up to 1 mile RF LOS range)

XB24-Z7CIT-004

XBee ZB low power ZigBee module w/ chip antenna

This module should be used if several ZB Mesh devices are located close to each other (within a few feet).


Low-Profile Chip Antenna Integrated into these Modules


XBP24-Z7CIT-004

XBee-PRO ZB long range ZigBee module w/ chip antenna

Up to 1 Mile Line of Site Range, the Chip Antenna Version is a Better Choice if ZB Mesh Devices are Located Close Together.  Realistically, it is not possible to obtain 1 mile range with this device, but the transmit power is much greater.

XB24-Z7WIT-004

XBee ZB low power ZigBee module w/ integrated wire antenna

In our tests, this ZB module could provide up to 50 Feet indoors in a busy wireless environment, and could go up to 400 Feet outside if the coordinator could see the device.


Small Internal Antenna Integrated into these Modules


XBP24-Z7WIT-004

XBee-PRO ZB long range ZigBee module w/ integrated wire antenna

Up to 1 Mile Line of Site Range, this is a Low Cost option for Providing a Better Coverage than Chip Antennas, but should NOT be used if Several Devices are within Close Proximity.

XB24-Z7UIT-004

XBee ZB low power ZigBee module w/ U.FL connector, Pigtail, and External Antenna

This module also has a 400 Foot range, but the antenna is external, and can help improve range because it can be positioned independently of the controller.  The Antenna Included with this Device can be Replaced by a Much Larger Outdoor Antenna.


External Pigtail and Antenna Included with these Modules Only


XBP24-Z7UIT-004

XBee-PRO ZB long range ZigBee module w/ U.FL connector, Pigtail, & External Antenna

This Module Yields the Best Range and Coverage in Practical Applications.  Up to 1 Mile Line of Site Range, the External Antenna can be Positioned Independently of the Controller.  The Antenna Included with this Device can be Replaced by a Much Larger Outdoor Antenna.
Please Choose ZB Mesh Wireless Firmware Option:
Router (Forwards Data to Other Devices & Acts as Device in the ZB Mesh Network)
Router Firmware has the ability to contribute to a ZB Mesh Network.  It can forward Data, and it can act like a Endpoint Device.  But it is generally slower than a Endpoint Device.  Use Endpoint Devices when Possible, Routers when Necessary for best performance.  If you are unsure which Firmware to choose, Choose Router firmware, the speed is not as good, but you can't beat the reliability of a Router device.
Please See our Introduction to ZB Mesh Networking Article for a Complete Explanation

Endpoint (Faster, but Does Not Forward Data to Other Devices in the Network)
Endpoint Firmware is Pretty Fast, but it does not have the ability to forward data to other devices in the network.  Use Endpoint Devices when Possible, Routers when Necessary for best performance.
Please See our Introduction to ZB Mesh Networking Article for a Complete Explanation
Do you have a Coordinator (used to talk to a ZB Mesh network):
USB AT Coordinator (Recommended +$138)
Choose this Option if you are a New User.
Please See our Introduction to ZB Mesh Networking Article for a Complete Explanation
USB API Coordinator (For Advanced Users +$138)
If you need Speed, the API Coordinator is a much better choice, but it requires a programmer Experienced in ZB Mesh and capable of understanding the API Protocol.
Please See our Introduction to ZB Mesh Networking Article for a Complete Explanation
No, I Already Have a USB Coordinator
Choose this option ONLY if you have already have a ZB Mesh Coordinator manufactured by NCD or DIGI.  Coordinators manufactured by other companies may not work.

Getting Started:

To Begin Using ZB Mesh Devices, Please follow the steps shown below:
Step 1 Review our Introduction to ZB Mesh Networking.  Most questions are answered on this page.
Step 2 Get to Know our ProXR Command Set  This is a Quick Summary of Supported Commands
Step 3 Download and Review our ProXR Manual
Step 4 Download and Install our ProXR Software
