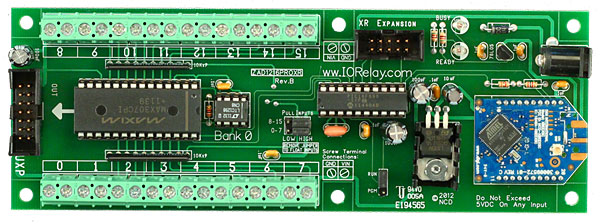

ZAD1216PROXR_XSC A/D Converter

XSC Long Range Wireless 16-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port


 Analog to Digital Converter
Data Collection and Control with Future Expandability in Mind.  This ProXR Series Controller is Feature Rich and Ready to Grow with your Needs!
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

XSC Long Range Wireless 16-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port

$204.00/ea


Resources

Product Resources:

Download Manual Download Product Manual
Configuration Utility Download Latest X-CTU XSC Configuration Utility (Digi X-CTU Software lets you set advanced features of the XSC Module, not required for most applications)
Download Software Download Example Software and Source Code

Software Development Tools:

NCD Component Library The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code.  This free download includes many example applications covering a wide range of topics.

Wiring Diagrams:


Wiring Diagrams: several simple ways to wire a relay for various applications.




This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.



This movie will explain the different expansion options that can be used with our controllers.



Test of the range of our Wireless Communication Options



Test of the range of our XSC Wireless Communication Options

Solid State Relays Are Not Suitable for Some Applications.
Please Make Sure Solid State Relays Can be Used in Your Application (CLICK HERE)

Features

  • Expandable to 48 A/D Channels
  • 12-Bit A/D Conversion
  • Wireless USB Interface Mounts as a Virtual COM Port on your PC for Easy Programming and 100% Compatibility Across ALL Operating Systems
  • Plug In, Open the COM Port and Start Sending Commands
  • Expandable to control up to 256 Relays using the XR Expansion Port
  • 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
  • Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
  • Add Relays to this Controller is your Needs Ever Grow
  • Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
  • CPU Status LEDs Show Command Processing Activity
Analog to Digital Converter
Analog to Digital Converter Mechanical Drawing

Mechanical Drawing

This Product:

ZAD1216PROXR_XSC
Analog to Digital Converter
 XSC Long Range Wireless 16-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port
Stock#: ZAD1216PROXR_XSC
1-9 $204.00

Related Products:

ZAD1232PROXR_XSC
Analog to Digital Converter
 XSC Long Range Wireless 32-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port
Stock#: ZAD1232PROXR_XSC
1-9 $313.00
ZAD1248PROXR_XSC
Analog to Digital Converter
 XSC Long Range Wireless 48-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port
Stock#: ZAD1248PROXR_XSC
1-9 $422.00
QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
National Control Devices, LLC
www.controlanything.com
Since October, 1995

ProXR Enhanced with 8/12-Bit Analog to Digital Conversion

Analog to Digital Conversion allows
you to Read Voltage Levels from 0-5VDC.

XR expansion port Allows you to Control
up to 256 External Relays:

Read and Control with the Same Board!

This Analog to Digital Converter allows you to read voltage levels from 0-5 volts using 8-bit or 12-bit resolution.  This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8).  A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.  Built-In Pull-Up/Down Resistors keep the inputs quiet.

XSC Communications

It works like this. Plug our XSC modem of your choice into the USB Port of your computer. The modem will mount as a COM port on your PC. Open the COM port and start sending data to the modem. The modem will forward your data to all XSC compliant devices within range (it is also possible to speak to a specific device when other controllers are in range).

XSC Long Range AntennaLong Range Antenna

An outside antenna will need to be installed in order to reach the 15 mile limit of these devices.  When you choose this optional antenna we will include everything you will need to install this except for the pole. Included will be the Cushcraft PC9013 antenna, 20 feet of cable (longer cables are not recommended) and the connector to connect the board to the cable.  Purchase a pole to mount the antenna from your local home improvement store and install the antenna.  Connect the board to the antenna via the provided cable and start sending commands.

What is ProXR?

ProXR refers to a set of standardized commands used for computer control and data collection.  A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility.  This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software.  ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Bluetooth, Fiber Optic, Wireless ZigBee/Mesh, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer.  Let ProXR controllers manage the rest.  Detailed information about the ProXR command set can be found in the ProXR Manual.

Building a solid foundation for future hardware is what ProXR is all about.  We have worked hard to modularize the ProXR firmware in such a way that it can support growth of features without sacrificing backward compatibility.  Most controllers produced from 2007 onward will support our ProXR command set.  These controllers will also include a XR Expansion Port, allowing you to add relays to any controller you choose.  So if your needs for computer control increase, our controllers will be ready for your growth.

With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port.  All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.

Antenna Options
The XSC900SR Short Range Antenna (distance of 1/2 mile) is included with the price of the controller. If you ate looking for longer distances choose the XSC900LR  Long Range Antenna (up to 15 miles) option at checkout.
XSC900SR    $49
Short Range
Included with Controller		 XSC900LR    $375
Long Range
Includes Pigtail,
Cable, & Antenna

Modem Options
The XSC Series modems connects to the USB Port of your PC and mounts as a virtual COM port.  Simply write your software to talk to the port and you will be talking to XSC wireless devices in no time. You will be able to purchase a modem with your controller during checkout.
UXSCMSR    $155
Short Range
Includes Modem,
Pigtail & Antenna		 UXSCMLR    $484
Long Range
Includes Modem, Pigtail, Cable, & ExternalAntenna

XSC Long Range Wireless 16-Channel 8-Bit/12-Bit Analog to Digital Converter + XR Expansion Port


  Quantity in Basket: None
Code: ZAD1216PROXR_XSC
Price: $204.00
Shipping Weight: 1.00 pounds

RoHS (Lead Free) Options:
Non-RoHS Compliant
RoHS Compliant (+$10)
Do you need a +12VDC Power Supply?:
No Thanks, I already Have a +12VDC Power Supply
120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+$24)
100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$36)
Please Choose an Antenna:
Short Range Antenna (included in price)
Long Range Outdoor Pole Mounted Antenna (+$280)
Please Choose an XSC Modem:
I Already Have an XSC Modem
Short Range Modem (+$120)
Long Range Modem (with Outdoor Pole-Mounted Antenna) - up to 15 Miles (+$449)
Add Pluggable Connectors:
No Thanks
Yes! Add Pluggable Connectors (+$48)
Which Version of Firmware would you like installed?:
V2.0 ProXR Standard 20MHz CPU 256 Relays 115.2K Baud Fixed Communications Interface
V3.0 ProXR Enhanced 64MHz CPU 512 Relays 2,000,000 Baud Changeable Communications Interface (+$50)
Do you need any Software for this Controller?:
No Software Needed
N-Button Software Allows you to Add Custom Buttons to your Desktop for Controlling Relays 40% Discount when Purchased with Controller Bundle Savings only $99 (Regularly $169)
