National Control Devices: 16-Channel 3A DPDT Expansion Relay Controller

XR163DPDT XR Expansion Board

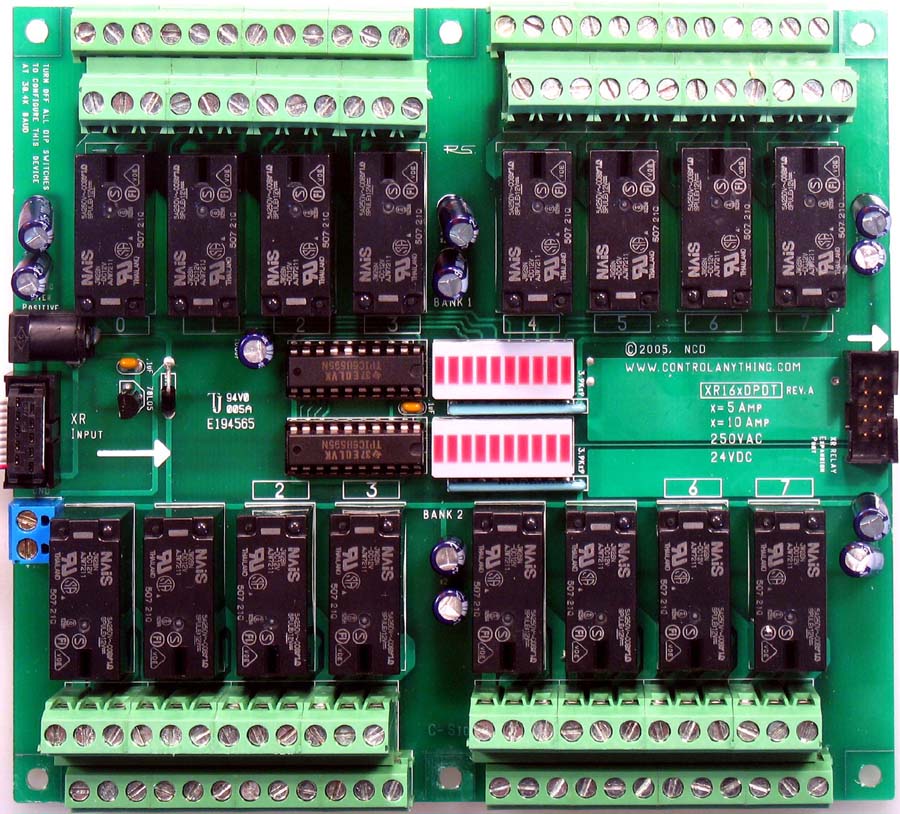

16-Channel 3A DPDT Expansion Relay Controller

XR Series Expansion Relay Boards add Relays to ANY NCD Device with an XR Expansion Port!

Control this Device Over the Internet

Signal Switch Compatible

16-Channel 3A DPDT Expansion Relay Controller

$252.00/ea

Download Manual

Download Product Manual

About Expansion Ports

Learn about the Expansion Options available to use with our controllers

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

This movie will explain the different expansion options that can be used with our controllers.

This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.

This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.

Features

Onboard Relay Status LEDs
Screw Terminal Connectors
Available with SPST, SPDT, DPDT, High-Current and Signal Switching Relays
Power LEDs
2.1mm Power Connector
Optional Power Supply
Includes 6" XR Expansion Cable

XR Expansion Board

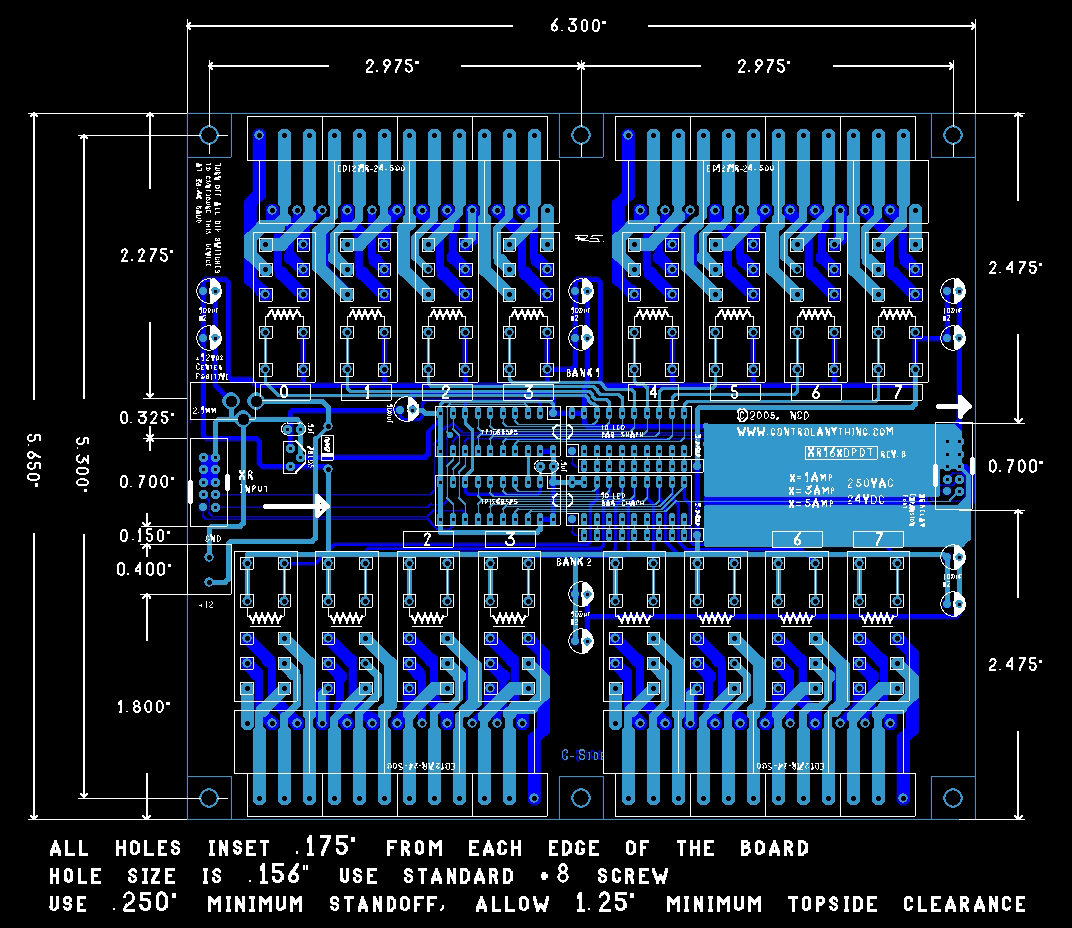

Mechanical Drawing

This Product:

XR163DPDT

Ratings	AC	DC
Voltage	240	24
Amperage	3	3

	16-Channel 3A DPDT Expansion Relay Controller
Stock#: XR163DPDT
1-9	$252.00

Related Products:

XR161DPDT

	16-Channel 1A DPDT Expansion Relay Controller
Stock#: XR161DPDT
1-9	$212.00

XR165DPDT

	16-Channel 5A DPDT Expansion Relay Controller
Stock#: XR165DPDT
1-9	$292.00

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

National Control Devices, LLC
www.controlanything.com
Since October, 1995

XR Expansion Relay Banks

XR Relay Expansion Controllers add a large variety of relay switching capabilities to an existing NCD device!

XR Expansion Ports are used to add banks of external relays to an NCD device. As we continue to develop new devices, a modular architecture will be implemented, offering the greatest amount of user flexibility. Separating the brawn from the brains allows us to continue to develop more intelligent controllers without making existing hardware obsolete.

Our Line of XR Expansion Relay Controllers add unlimited computer controlled switching potential, using a simple, modular upgrade path. From low power signal switching to high current, high voltage control, we offer an XR Expansion controller that will meet your switching requirements. Available with Single Pole Double Throw (SPDT) and Double Pole Double Throw (DPDT) relays, Open Collector Outputs (OC), and 8, 16, 24, or 32 outputs per expansion board.

Above: A ProXR Series Controller Shown with Two XR Expansion Boards Attached. Simply Chain the XR Expansion Modules, one after another, to meet your computer controlled switching requirements. (click picture to enlarge)

Controlling XR Expansion Banks

XR Expansion Boards have no on-board brains. They are entirely reliant on the brains of a "master" device. A master device is an NCD controller with an XR expansion port and a microprocessor of some kind. Some master devices are wireless, and some master devices have digital I/O and analog to digital conversion capabilities. Some master devices also have on-board relays. When you run out of relays, just plug in an XR expansion controller that is equipped with the kind of relays you need.

The product manual for various NCD master devices will refer to a group of 8 relays as a relay bank. XR Expansion Modules count as 1, 2, 3, or 4 banks, depending on how many relays are on board (8, 16, 24, or 32).

As you continue to chain XR relay expansion controllers onto an XR expansion port, the total number of available relay banks will increase. Each master device is only capable of controlling a fixed number of relay banks. You should review the product manual of the master device you are using to determine the maximum number of supported relays banks. This modular expansion approach will allow you to chain relays of all kinds to a single NCD device.

Linking XR Expansion Boards Together

XR Expansion Boards include a 6" ribbon cable with a keyed connector, used to link the expansion controller to an NCD device. At the other end of the relay expansion board is an XR Pass-Through connector, allowing you to chain additional relay banks.

16-Channel 3A DPDT Expansion Relay Controller

Quantity in Basket: None
Code: XR163DPDT
Price: $252.00
Shipping Weight: 3.00 pounds

RoHS (Lead Free) Options:

	Non-RoHS Compliant
	RoHS Compliant (+$10)

Do you need a Power Supply?:

	No Power Supply will be Included
	120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+$24)
	100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$36)

Quantity:

16-Channel 3A DPDT Expansion Relay Controller
