National Control Devices: High Speed Wireless Remote Relay Controller Board 2-Way with 16 Channel I/O 8/10-Bit A/D + 16 10 Amp

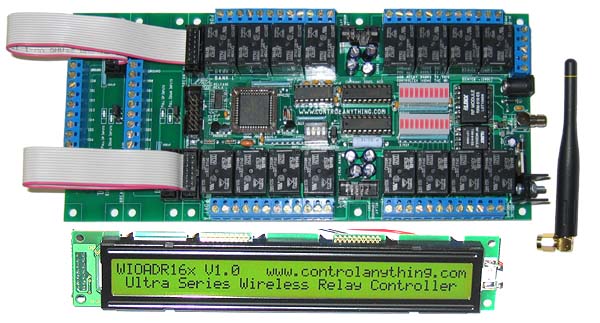

WIOADR1610ES High Speed Wireless Remote Relay Controller Board 2-Way with 16 Channel I/O 8/10-Bit A/D + 16 10 Amp

Imagine the possibilities...unlimited wireless control, wireless data collection, intelligent wireless networking, wireless communication, the perfect integrated computer control solution offers more power, flexibility, expandability and did we mention RAW SPEED!

RESOURCES:
	Download Ultra Configuration and Example Programs
	Download Product Manual

Now Shipping Firmware Version 2.0, Release Date August 22, 2005.

16 Onboard Remote Controlled Relays

72-Bit Noise Rejection

Remote Control Millions of Devices

High Speed Wireless Computer Control

Up to 1,000 Foot Range

7 User Programmable Bit Rates

Up to 40KBPS Communication Speed

3 User Programmable Device Keys

XR Relay Expansion Port Allows you to ADD 62 Relays Banks to this Controller

Dual Power Connection System

20 Status LEDs

Optional 40x2 Character LCD Display with 256 Levels of Software Controlled Backlight Brightness and Contrast

User Programmable Dual 8-Bit TTL/CMOS Input/Output Data Buss

8-Bit/10-Bit/8-Channel A/D Converters

8-Channel 8-Bit A/D Conversion over 350 Wireless Samples per Second

RS-232 Communications up to 115.2K Baud with Full E3C Compliance

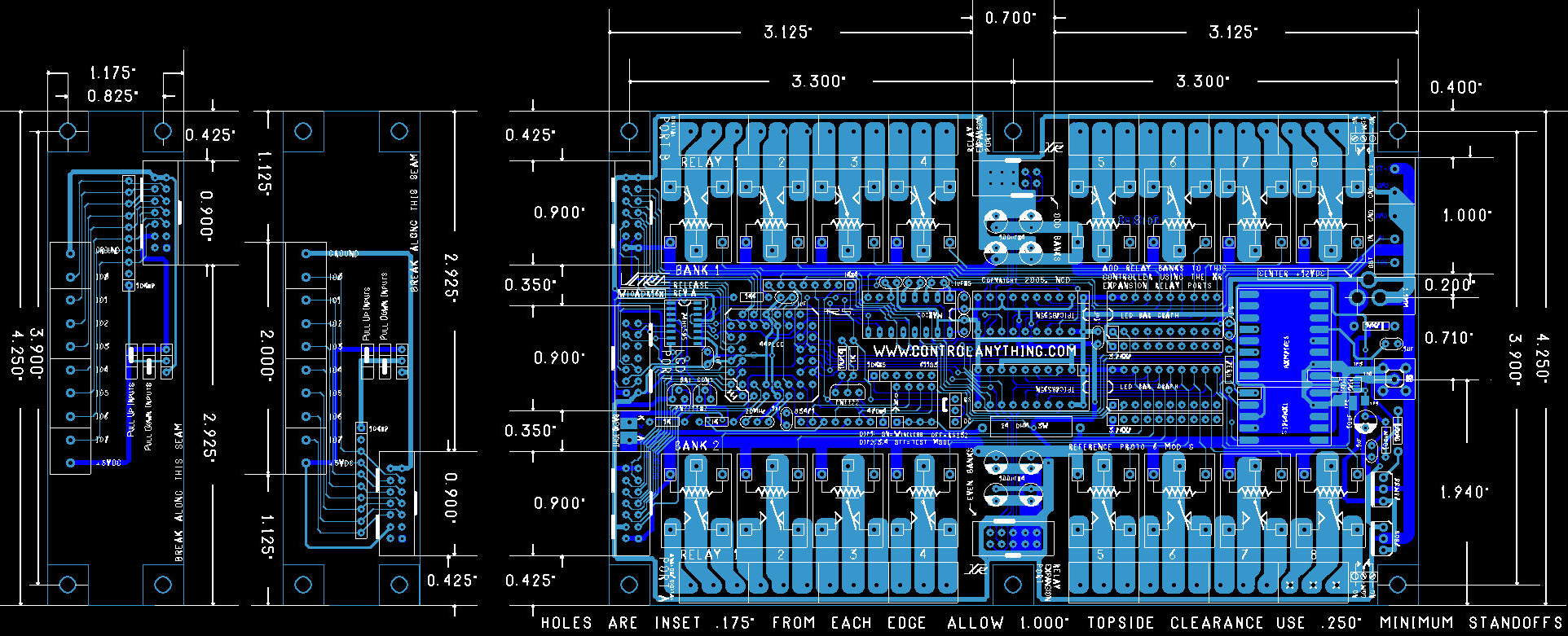

MECHANICAL DRAWING

NAIS RELAYS

5-Amp 16-Relay Controller

Ratings	AC	DC
Voltage	240	24
Amperage	5	5

ALL RELAYS ARE HERMETICALLY SEALED

	Sixteen 5-Amp SPDT Relays
*Stock #: WIOADR165ES*
1-9	$399/ea
10-24	$376/ea
25-99	$339/ea
100+	$290/ea
(click above picture to enlarge)

OMRON RELAYS

10-Amp 16-Relay Controller

Ratings	AC	DC
Voltage	240	24
Amperage	10	10

ALL RELAYS ARE HERMETICALLY SEALED

	Sixteen 10-Amp SPDT Relays
*Stock #: WIOADR1610ES*
1-9	$439/ea
10-24	$416/ea
25-99	$379/ea
100+	$330/ea
(click above picture to enlarge)

National Control Devices, LLC

www.controlanything.com

Since October, 1995

Ultra Series Wireless Relay Controllers offer more power, flexibility, networkability, expandability, and raw speed than any other multifunction controller we have ever designed. Wireless Data Collection and Control is now just a simple matter of imagining what you want to do. Our development tools and software make it easy to integrate wireless computer control into the toughest machine control applications in minutes rather than months.

The Ultra Series wireless multifunction controllers allow you to control 16 on board relays PLUS up to 496 EXTRA relays using dual XR Relay Expansion ports, providing THE ultimate computer control solution.

All on-board relays are latched. Simply send a command to turn on a relay, or a different command to turn off a relay. You can control individual relays or all 512 relays at one time.

But we didn't stop there. The Ultra Series relay controllers are also capable of 8-Channel 8-Bit or 10-Bit Analog to Digital Conversion exceeding 350 samples per second over a wireless connection. Two detachable I/O data ports (shown on the left side of the photo above) allow you to monitor standard logic level inputs or set TTL outputs, all under wireless control.

An optional 40x2 Character LCD display integrates a fully programmable wireless messaging solution, including software controlled backlight brightness (256 levels) and software controlled LCD contrast adjustment (256 levels).

Our Ultra Series Controllers offer wireless control at up to 40KBPS or a direct RS-232 connection at up to 115.2K Baud, making our Ultra Series the fastest computer control solutions we have ever provided.

Wireless communication to an UNLIMITED number of remote devices is easy. Just assign each controller a device number and start speaking to each device by its number. It is that simple.

Ultra series controllers are what we call "Confirming" controllers, meaning that every command you send to the controller, you always receive confirmation that the command has been processed, ensuring reliable communication in those mission critical applications.

NOTE: IT IS NOT POSSIBLE TO CONTROL THE ULTRA SERIES CONTROLLERS FROM AN RS-232 CONNECTION AND A WIRELESS CONNECTION AT THE SAME TIME. INSTEAD, CONSIDER USING MULTIPLE WIRELESS TRANSEND DEVICE COMMUNICATORS.

Should you have any questions, please contact us.

High Speed Wireless Remote Relay Controller Board 2-Way with 16 Channel I/O 8/10-Bit A/D + 16 10 Amp

Quantity in Basket: None
Code: WIOADR1610ES
Price: $439.00
Shipping Weight: 1.50 pounds

Do you need a Power Supply?:

Do you need a serial connection kit?:

Do you need a 40x2 LCD Display and Cables?:

Please select a Communications Option:

Please Select a USB Option:

RoHS (Lead Free) Options:

	Non-RoHS Compliant
	RoHS Compliant 60-Day Production Time

Quantity:
