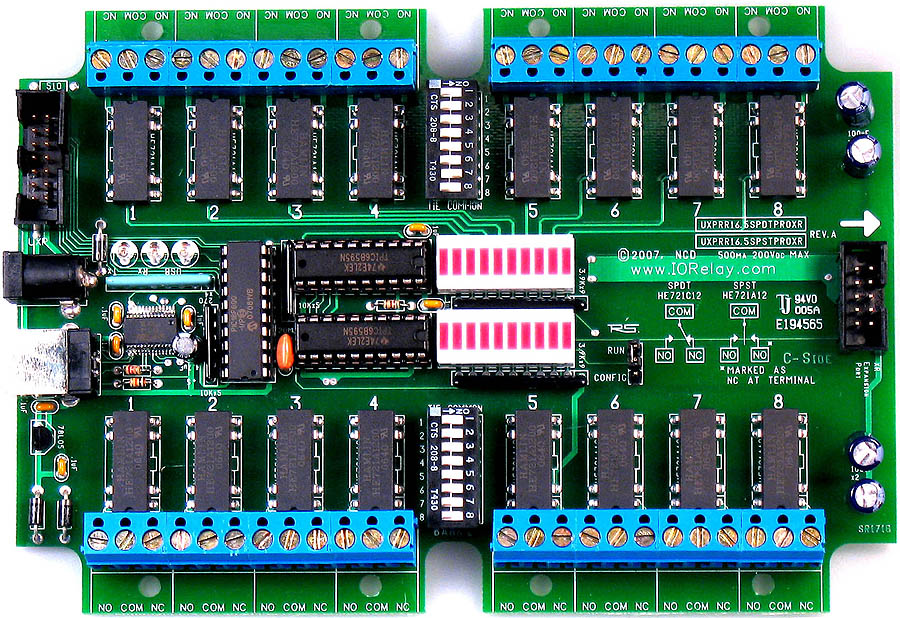

UXPRR16-5SPSTPROXR USB Relay
Discontinued - This item has been replaced by a new Item, see product description for details
Resources
Product Resources:
| Quick Start Guide | Quick Start Guide |
| NCD Base Station Software |
Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device. |
| Download USB Drivers | Download Latest USB Virtual COM Port Drivers |
| Download Manual | Download ProXR Manual |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
Wiring Diagrams Wiring Diagrams: several simple ways to wire a relay for various applications. |
|
Video Resources
(Select a thumbnail to view the video)USB Setup
Watch as we show you how to Set Up the Hardware and Software necessary to use your USB Relay Controller
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Features
- USB Interface Mounts as a Virtual COM Port on your PC for Easy Programming and 100% Compatibility Across ALL Operating SystemsPlug In, Open the Virtual COM Port at 115.2K Baud and Start Sending Commands
- UXP Expansion Port Adds I/O Capabilities as your Needs Grow
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- Add Relays to this Controller is your Needs Ever Grow
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
- CPU Status LEDs Show Command Processing Activity
This Product:
Related Products:
UXPRR16-5SPDTPROXR
 |
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: UXPRR16-5SPDTPROXR | |
| 1-9 | $389.00 |
www.controlanything.com
Since October, 1995
USB ProXR Enhanced with UXP:
USB Virtual COM Relay Controller with
UXP Expansion Port and
XR Expansion Port
About USB:
Our New USB ProXR Series Relay Controllers make it easier than ever to add computer controlled switching to your most demanding computer control applications. Simply connect to your computer and this controller mounts as a Virtual COM Port on your PC, allowing easy programming from any language that supports serial communications.
This ProXR series controller connects to the USB port of your computer and requires a 12VDC Power Supply. Once powered up, the relay controller waits for a command. A command consists of a few bytes of data. Usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.
Read More About USB Communications
Our UXP Expansion Modules allow you to add A/D Converters, Contact Closure Inputs, or Potentiometer Outputs to this device. Along with this these boards also have the built in XR Expansion Ports Capable of controlling up to 256 relays from just one board. Whether you need power switching or DPDT signal switching, the ProXR Series with UXP Ports are built from the ground up with Expansion in mind
View our UXP Expansions or our XR Expansions to see all available options.
About ProXR:
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR Expansion Port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
You can send commands to activate relays, deactivate relays, control all the relays at one time, plus you can send commands that tell a relay to turn on for a few seconds, minutes, or hours. You can assign 16 timers to any of the 256 relays, and set the timers to go off after the duration has expired. That's just the beginning, find out more about our ProXR Command Set.
Read More About the ProXR Standard
About Universal Expansion Ports
If you need to add capabilities beyond basic relay control to your application, then you may want to consider using one of our controllers equipped with a UXP Expansion Port. UXP is a standardized data port, specifically for the purpose of speaking to various expansion modules. This Relay Controller is equipped with a UXP port, allowing you to take advantage of extended commands to speak to our growing line of I/O expansion modules.
ALL RELAYS ARE HERMETICALLY SEALED, Relay Controller Requires +12VDC Power Supply, Photos May Show Options or Accessories Not Included with Relay Controller. USB Specification Prohibits Relay Controllers from Being USB Bus Powered due to Surge Currents. NCD will NOT Design/Manufacture a Mechanical Relay Controller that is USB Bus Powered, Please Be Cautious of Any Manufacturer who Offers such a Device.
