Ultra Series Contact Closure Expansion Module

Ultra Series ScanSwitch 48-Channel Contact Closure Detector Expansion Module

Product Code: USCS48

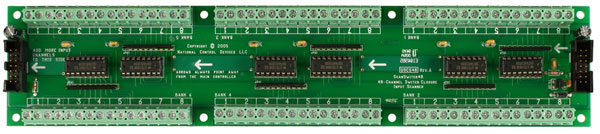

USCS48 Ultra Series Contact Closure Expansion Module

USCS48 is ideal for reading motion detectors, glass breakage detectors, window/door open detectors, light switches, and other kinds of devices with a contact closure output.
Please note: This is an Expansion Module and will not work on it's own.

Control this Device Over the Internet

Signal Switch Compatible

Ultra Series ScanSwitch 48-Channel Contact Closure Detector Expansion Module

$138.00/ea

Ultra Series Expansion Module at a Glance

Compatible with any SCAN Series Contact Closure Input Boards
Compatible with any NCD ProXR model with UXP expansion port
16, 32, 48 Channel Versions Available
Connect Additional Expansion Modules End to End with Supplied Cables
NOTICE: This device is an expansion module only and cannot be used alone

Resources:

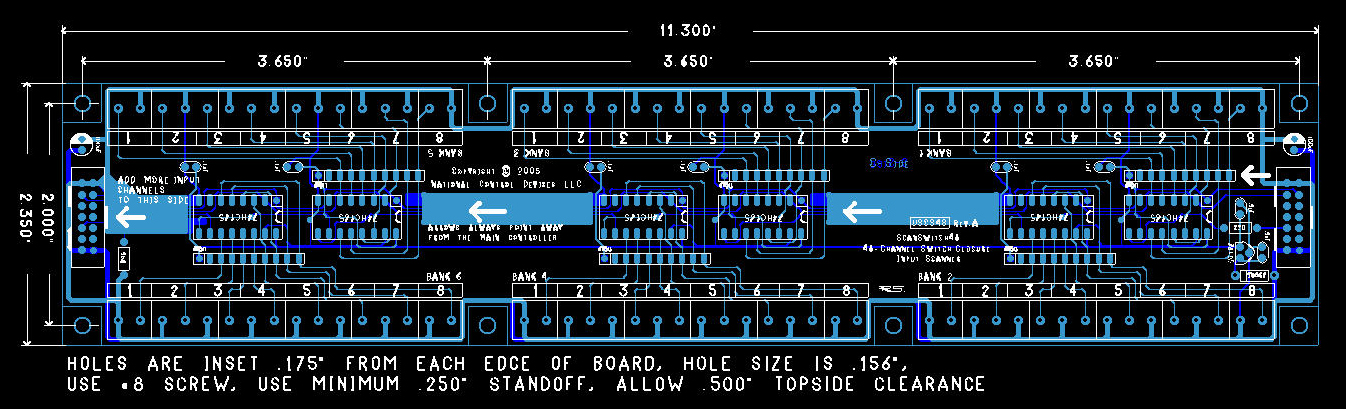

Ultra Series Manual Mechanical Drawing

This Product:

USCS48

	Ultra Series ScanSwitch 48-Channel Contact Closure Detector Expansion Module
Stock#: USCS48	$138.00

Related Products:

USCS16

	Ultra Series ScanSwitch 16-Channel Contact Closure Detector Expansion Module
Stock#: USCS16	$55.00

USCS32

	Ultra Series ScanSwitch 32-Channel Contact Closure Detector Expansion Module
Stock#: USCS32	$95.00

Questions?

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

Contact Closure Expansion Board

Multiple Expansion can Read up to 256 Inputs
Send Simple Commands to Activate Relays or Monitor Status
Add contact closure to any UXP or Existing SCAN Series Board

Add Contact Closure to any UXP Port

Switch Closure Input is a vital part of just about any control system. Our ScanSwitch expansion modules allow you to read 16, 32, or 48 switches per expansion module. Multiple expansion modules are easily chained together to read more inputs and will work with any SCAN Series Contact Closure Input Detectors. For instance, if you need your computer to monitor 64 switches, you can use your choice of 32 Channel Contact Closure Input Board and one USCS32 ScanSwitch expansion modules (connected end to end) to read your switches. You can also connect the ScanSwitch Expansion Boards to any UXP Relay Board and make it a Contact Closure Detector. Please note: this is an expansion module and must be connected to a compatible board to work. This board will NOT work on it's own.

Here's How It Works

ScanSwitch is an expansion module that connects to a UXP or Ultra Series controller with version 2.0 or later firmware. To use this device, simply connect the ScanSwitch to any available UXP or Ultra Port. Next, you will send a couple of bytes of data to the Ultra series controller, requesting input detection. The Ultra Controller will report back a value from 0-255, indicating the current status of the inputs on a selected bank in binary form.
