Product Discontinued
This product has been replaced by ZSCAN48PROXR_ZRS

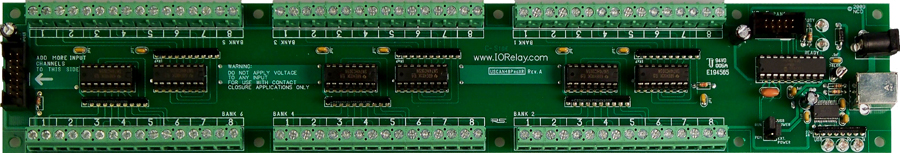

USCAN48PROXR Contact Closure Input Detector
Discontinued - This item has been replaced by a new Item, see product description for details
Resources
Product Resources:
Software Development Tools:
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
Wiring Diagrams Wiring Diagrams: several simple ways to wire a relay for various applications. |
|
Video Resources
(Select a thumbnail to view the video)USB Setup
Watch as we show you how to Set Up the Hardware and Software necessary to use your USB Relay Controller
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Features
- USB Interface Mounts as a Virtual COM Port on your PC for Easy Programming and 100% Compatibility Across ALL Operating SystemsPlug In, Open the Virtual COM Port at 115.2K Baud and Start Sending Commands
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- Add Relays to this Controller is your Needs Ever Grow
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
- CPU Status LEDs Show Command Processing Activity
This Product:
Related Products:
USCAN32PROXR
 |
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: USCAN32PROXR | |
| 1-9 | $142.00 |
www.controlanything.com
Since October, 1995
Contact Closure Inputs now with ProXR
Our Scan Series Controllers monitor Contact Closure Inputs, via an enabled Computer. With minimal programming, Data Collection and Control from a Single Controller allows any computer to talk to our devices as though they were directly connected to a serial port.
This Board is capable of controlling up to 256 Relays through the XR Expansion Port.
About USB Communications:
Our New USB Series Relay Controllers make it easier than ever to add computer controlled switching to your most demanding computer control applications. Simply connect to your computer and this controller mounts as a Virtual COM Port on your PC, allowing easy programming from any language that supports serial communications.
This controller connects to the USB port of your computer and requires a 12VDC Power Supply. Once powered up, the relay controller waits for a command. A command consists of a few bytes of data. Usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.
Read More About USB Communications
What is ProXR?
ProXR refers to a set of standardized commands used for computer control and data collection. A controller that supports the ProXR command set is a controller that is built to control up to 256 relays, using commands that can be sent to any controller that offers ProXR compatibility. This allows software developers to create programs for our products, then upgrade or change connectivity options without having to rewrite their software. ProXR commands can be sent to our controllers via the RS-232 serial port, the USB port, Bluetooth, Fiber Optic, Wireless ZigBee/Mesh, Ethernet, and Wi-Fi 802.11b...all without rewriting your software....simply develop your programs to work with the serial port of your computer. Let ProXR controllers manage the rest. Detailed information about the ProXR command set can be found in the ProXR Manual.
Building a solid foundation for future hardware is what ProXR is all about. We have worked hard to modularize the ProXR firmware in such a way that it can support growth of features without sacrificing backward compatibility. Most controllers produced from 2007 onward will support our ProXR command set. These controllers will also include a XR Expansion Port, allowing you to add relays to any controller you choose. So if your needs for computer control increase, our controllers will be ready for your growth.
With all the control and backward/forward compatibility you have come to expect from the ProXR series command set, this controller allow you to send simple commands to activate relays, read the status of relays, activate up to 16 relay timers, and control up to 256 total relays using the XR expansion port. All relays are electronically latched, simply send a command to turn the relay on, send a different command to turn the relay off.
Discontinued - This item has been replaced by a new Item, see product description for details | |
|
Quantity in Basket:
None
Code: USCAN48PROXR Price: $185.00 Shipping Weight: 1.00 pounds | |
| Discontinued - This item has been replaced by a new Item, see product description for details | |
