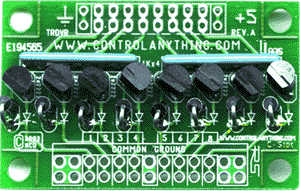

TRDVR O.C. Transistor Driver Expansion Module

8-Channel O.C. Transistor Driver Expansion Module

Compatibility:

IOServo:	IOAD168:
Port A: 1 Piece	Port A: 1 Piece
	Port B: 1 Piece
	Port C: 1 Piece

The TRDVR Can Be Used on the Same IO Bus as the Following Expansion Modules:

IOTEST-L: 8-Channel LED Monitor

The TRDVR Can Also be Connected to the Parallel Outputs of the PAR24.

See Examples of NCD Expansion Modules

RESOURCES:
	Download our Guide to Using NCD Expansion Modules

8-Channel Low-Current Transistor Driver Expansion Module

Stock #: TRDVR
Qty 1	$34/ea

The TRDVR is an 8-Channel Low-Current Output Expansion Module designed to be used with the IOAD168 controllers. The TRDVR Connects to the TTL Data Bus of these controllers and provides a low-current open collector driver stage capable of directly driving relays and other small signal loads up to 24VDC at 100ma per output.

Use the TRDVR in conjunction with the PAR24 for additional outputs. Use the 8FET for high-current driver applications.

8-Channel O.C. Transistor Driver Expansion Module

Quantity in Basket: None
Code: TRDVR
Price: $34.00
Shipping Weight: 0.10 pounds

Quantity:

8-Channel O.C. Transistor Driver Expansion Module
