Solid State ProXR Lite Relay Controller

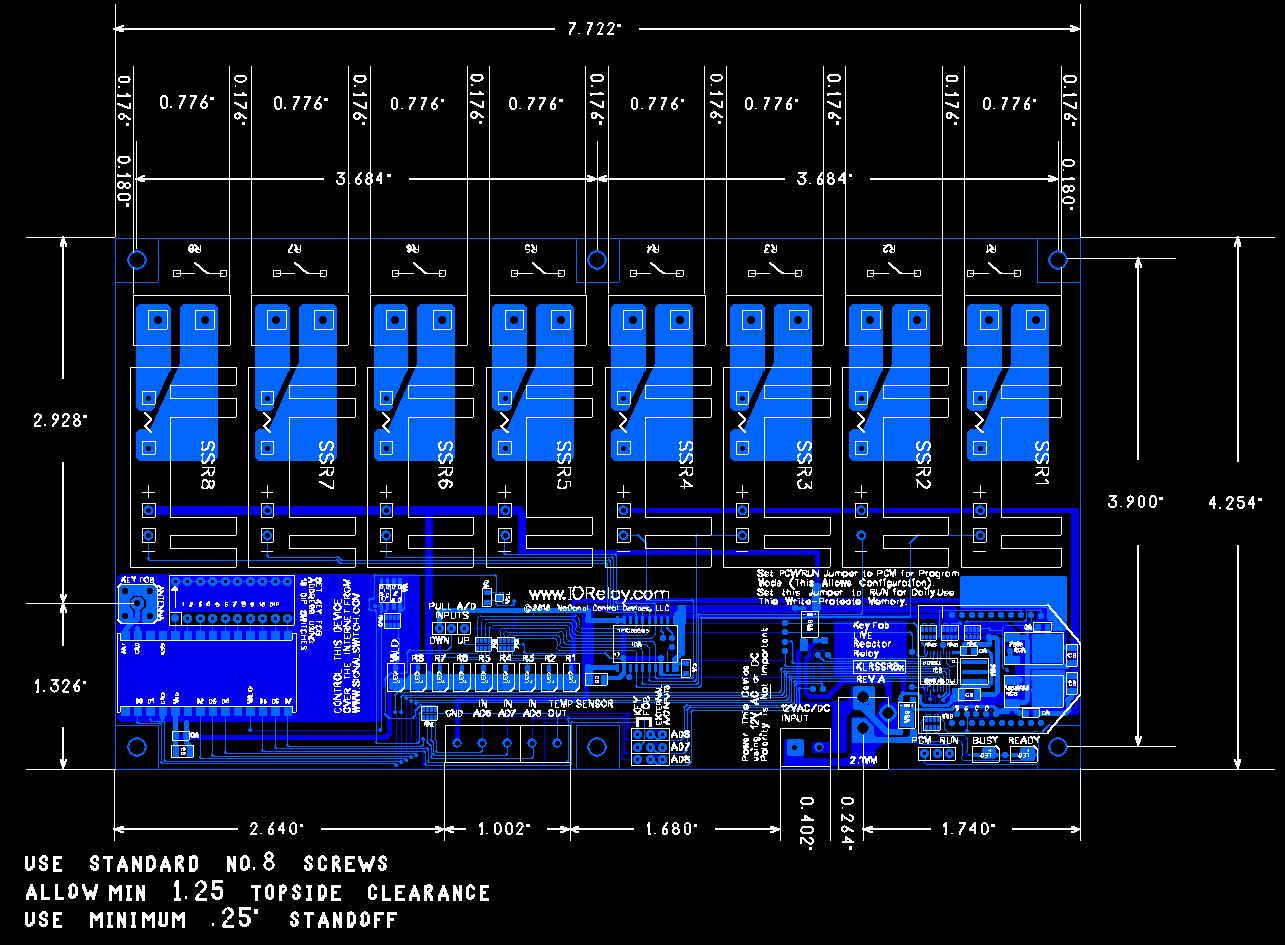

ProXR Lite Relay 8 Solid State State Relays with 802.15.4 Interface
Product Code: SSR8xPL_802154
The SSR8xPL_802154 features the same ProXR Command set as our more
expensive boards without the expandability of a full ProXR controller.
ProXR Lite Series at a Glance
- Low-Cost High-Volume Surface Mount Machine-Manufactured Design
- Based on 5-Year Warranty Designs with Limited Warranty to Lower cost
- Offers 100% Emulation of ProXR AD8 Firmware
- 8-Channel of 8/10-Bit Analog to Digital Conversion
- Supports 1, 2, 4, or 8 Relays on Bank 1
- Not Expandable to Save Cost
- Aggressive Quantity Discounts Available
- Available with USB, 802.15.4, XSC, or ZigBee Mesh Interface
Video Resources
(Select a thumbnail to view the video)ZigBee Intro
Learn about the ZigBee Wireless Communications and how it stacks up to other Wireless Communication Protocols we use
ZigBee Setup
Watch as we show you how to Set Up the Hardware and the Software necessary to use your Controller
ZigBee Troubleshooting
Learn how to Troubleshoot your ZigBee Relay Controllers using the XCTU Software
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wireless Communications
Learn the basics of wireless communications and find the right wireless controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Wireless Range Test
Test of the range of our Wireless Communication Options
802.15.4 Range Test
Test of the range of our IEE 802.15.4 Wireless Communication Options
Resources:
This Product:
Related Products:
SSR8xPL_802154_MIX
 |
ProXR Lite Relay 8 Mixed Solid State State Relays with 802.15.4 Interface |
| Stock#: SSR8xPL_802154_MIX | |
| 1-9 | $163.00 |
Power Supply Available
PWR12 Power Supply
 |
The PWR12 is regulated power supply providing clean power necessary for the performance of these boards |
| Stock#: PWR12 | $24/ea |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .
Wireless 802.15.4 ProXR Lite Enhanced with A/D
Take all the Power of the ProXR Series Relay Controllers
...add a Digi Wireless 802.15.4 Compliant Interface:
Remote Data Collection and Control is Effortless!
It works like this. Plug our Wireless 802.15.4 modem into the USB Port of your computer. The modem will mount as a COM port on your PC. Open the COM port and start sending data to the modem. The modem will forward your data to all Wireless 802.15.4 compliant devices within range (it is also possible to speak to a specific device when other controllers are in range). A ZigBee modem can be purchased with this board at checkout.
Solid State: A Practical Alternative to Mechanical Relays!
Mechanical Relays have a good home in low-cost control applications. But for some users, only solid state switching will do. Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance. Many inductive control applications require a solid state relay. Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.
ProXR Lite Is Here!
A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a list of great features:
User Friendly Board Design- Surface mount allows for a smaller board
- Break-A-Way Tabs lets you decide the board's size
- Interchangeable interfaces allows you to upgrade or change your interface at any time
- Works with the full ProXR Command Set
- 8-Channel 8/10-Bit Analog to Digital Converter
- Highly reliable relay with industry leading command set
- This controller cannot be expanded
ProXR Lite Relay Controller
The ProXR Lite Series is a great alternative for those looking for a low cost solution that requires the power and reliability of a ProXR Controller. With a wide selection in Relay type and Communication Interface there is a ProXR Lite board to match your application. Every ProXR Lite Board has Breakaway Tabs that give you the option to make the board smaller or fit it for an enclosure. Interchangeable Interface Modules allow you to switch communication interfaces by simply powering down the device and replacing the module.
The ProXR Lite series are based on the same designs that offer a 5 year warranty. However, in an effort to further save cost, we have limited the warranty of the ProXR Lite series controllers. ProXR Lite series controllers are guaranteed ONLY against manufacturing and functionality defects for a period of 30 days. Controllers that are damaged by our customers will not be warranted under any circumstances. ProXR Lite series controllers are designed for long life; however, should they be damaged, they should be discarded and replaced.
Unlike the ProXR series relay controllers, ProXR Lite series controllers are NOT expandable. The firmware still thinks 256 relays are available, however, the relay portion of the controller only responds to the first 1, 2, 4 or 8 relays in Bank 1. We did NOT skip the Analog Input portion of the ProXR Lite. All ProXR Lite controllers offer a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control. The ProXR Lite responds to the same firmware as the ProXR series controllers and is therefore 100% compatible with any applications designed to work with a ProXR series controller (click here to see the ProXR command set).
A/D Conversion on the SSR8xPL_802154
Analog to Digital conversion is available on the SSR8xPL_802154 controller. Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. A/D Inputs are useful for reading, temperature sensors light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with the SSR8xPL_802154 controller.Resources
Choose a Solid State Relay for This Controller: |
|||
|
Crydom |
 |
2A 240VAC Normally Open SPST Zero Crossing Turn On Built-In Snubber Circuit For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature D2W Series Data Sheet |
$12.00/each |
|
Crydom |
 |
5A 240VAC Normally Open SPST |
$15.00/each |
|
Crydom |
 |
5A 240VAC Normally Open SPST |
$16.00/each |
|
Crydom |
 |
25A 240VAC Normally Open SPST Random Turn On For Use with Inductive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet |
$28/each |
|
Crydom |
 |
25A 480VAC Normally Open SPST Zero Crossing Turn On For Use with Resistive Loads AC Switching ONLY .06A Minimum Load Required -30 to 80°C Operating Temperature PF Series Data Sheet |
$30/each |
|
Crydom |
|
3A 60VDC Normally Open SPST For Use with Resistive or Inductive Loads DC Switching ONLY .02A Minimum Load Required 1.5V Maximum On-State Voltage Drop -40 to 80°C Operating Temperature PF Series Data Sheet DC Solid State Connection Diagram |
$24/each |
| NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com. | |||
ProXR Lite Relay 8 Solid State State Relays with 802.15.4 Interface | |
|
Quantity in Basket:
None
Code: SSR8xPL_802154 Price: $163.00 Shipping Weight: 3.00 pounds | |
