SSR82AC RS-232 Solid State Relay Controller

RS-232 Solid State Relay Controller 8-Channel 2-Amp AC SPST

	Control this Device Over the Internet Signal Switch Compatible

	Solid State 2-Amp 8-Relay SPST Controller $129/ea

RESOURCES:
	Download Visual Basic Example Source Code
	Download the SSR82AC Product Manual (R8xPRO Manual)
	Control 256 NCD Devices from a Single RS-232 Serial Port

FEATURES:

Low-Cost 8-Relay Configuration

1200/2400/9600/19.2K Baud Operation

Power LED, 8 Relay Status LEDs

Control Status of All or Individual Relays

Read Status of All or Individual Relays

Two-Way Communication Capabilities

Integrated Timer Functions

E3C Compliance

Programmable Relay Memory

Quick Connect Terminal Blocks

High-Quality Sealed Relays

Optoisolated RS-232 Inputs

Intelligent Status LEDs

2 RS-232 Input Levels

+12 Volt Operation, 2/3-Wire RS-232

Solid State Reliability

Quiet Power-up

4.7" x 2.5" x 1"

OMRON RELAYS

2-Amp 8-Relay Controller

Ratings	AC	DC
Voltage	120	NOT FOR DC
Amperage	2	NOT FOR DC

12 Watt Minimum Load Required

	Solid State 2-Amp 8-Relay SPST Controller
*Stock #: SSR82AC*
1-9	$129/ea
10-24	$124/ea
25-99	$114/ea
100+	$104/ea

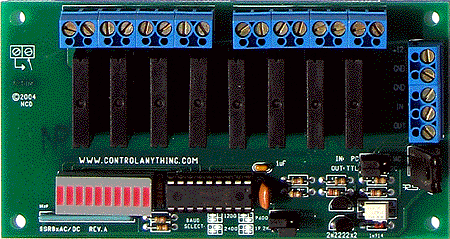

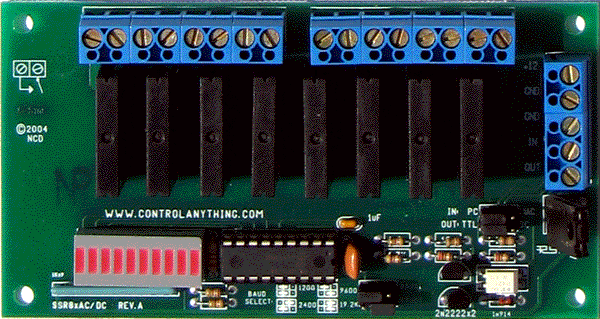

(click above picture to enlarge)

Quick Start Kit: QS12

Quick Start Kits provide everything you need to begin using your SSR82AC relay controller. Kit includes a high quality regulated switcher supply, serial cable, and RSIO adapter (shown below).

QS12

$49

National Control Devices

www.iorelay.com

Since October, 1995

The SSR82AC is our first AC solid state relay controllers, offering all the features of the R8xPRO series relay controllers. Solid State relays are silent, low-cost, and have a reputation for a very long service life.

The SSR82AC has 2 terminal connections for each SPST normally open relay. The SSR82AC can only be used with AC loads between 12 and 240 Watts at 120 VAC. The SSR82AC uses 8 OMRON optically isolated relays with an optically isolated RS-232 interface.

The SSR82AC offers the same command set as the R8xPRO series relay controllers, including the same on-board memory, E3C compliance (allowing 256 devices to share a single serial port), and a slightly smaller footprint.

The SSR82AC includes 8 on-board status LEDs and two additional LEDs driven entirely by the firmware, indicate when a valid command is in process and when the device is ready for commands.

Our new and improved command set allows you to set the status of all relays at once or one relay at a time. In addition, you can request the status of individual relays or all relays at once.

Memory features allow you to store the default on/off status of all relays when power is first applied to the board. In addition, the current relay activation pattern can be stored and recalled into 16 different memory banks, allowing you to define "macros" that prevent some relays from activating at the same time.

A timer function was added to activate one or more relays for controlled periods of time.

Emulation mode is not supported by the SSR82AC.

Should you have any questions, please contact us.

RS-232 8-Channel 2-Amp AC SPST Solid-State Relay Controller Board

Quantity in Basket: None
Code: SSR82AC
Price: $129.00
Shipping Weight: 0.35 pounds

OPTIONAL: Quick Start Kit, Includes Serial Cable, Regulated +12 Volt Switcher Power Supply, and RSIO Serial Adapter $49:

	No Thanks! I don't need a Quick Start Kit
	US - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply
	US RoHS - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+10)
	Intl - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$12)
	Intl RoHS - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply w/4 Adapters (+$22)

OPTIONAL: USB to RS-232 Serial Adapter (Above Option Recommended) $24

Quantity:
