SSR1x Solid State Relay

1-Channel Solid State RS-232 Relay Controller

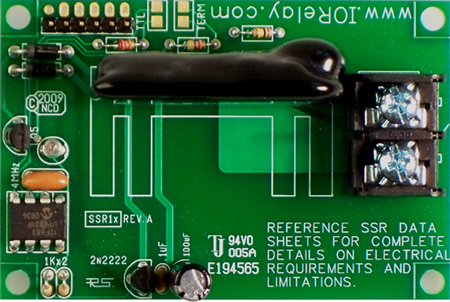

Solid State Relay Controller
Reliable Serial Communications will suit any control needs.
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

1-Channel Solid State RS-232 Relay Controller

$44.00/ea


Resources

Product Resources:

NCD Base Station Software .zip file  Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device.
E3C Compliant This Device is E3C Complaint allowing 256 NCD Devices to Share a Single RS-232 Serial Port.
Download Manual Download the Product Manual
Download VB Samples Download VisualBasic 6 Example Source Code
Download Software Download Example Software and Source Code

Software Development Tools:

NCD Component Library The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code.  This free download includes many example applications covering a wide range of topics.


This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wired communications and the differences between wired communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.



This movie will explain the different expansion options that can be used with our controllers.

Solid State Relays Are Not Suitable for Some Applications.
Please Make Sure Solid State Relays Can be Used in Your Application (CLICK HERE)

Features

  • Customized your Controller with Up to 8 Solid-State Relays
  • 16 Background Timers Can be Assigned to Any of the Relays while Processing Your RS232 Commands
  • Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
  • 9600 Baud Operation
  • Full E3C Compliance Allows Control of 256 Different NCD Devices on a Single RS-232 Serial Port
  • Four LEDs Indicated Heartbeat, E3C Enabled Status, Data Send/Receive
Solid State Relay
Solid State Relay Mechanical Drawing

Mechanical Drawing

This Product:

SSR1x
Solid State Relay
 1-Channel Solid State RS-232 Relay Controller
Stock#: SSR1x
1-9 $44.00

Related Products:

SSR1xRS
Solid State Relay
 1-Channel Solid State Relay Controller with RS-232 Interface
Stock#: SSR1xRS
1-9 $54.00
QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
National Control Devices, LLC
www.controlanything.com
Since October, 1995

Solid State: A Practical Alternative to Mechanical Relays!

Mechanical Relays have a good home in low-cost control applications.  But for some users, only solid state switching will do.  Solid State Relays are ideal for users who require long term reliability, silent operation, or high induction tolerance.  Many inductive control applications require a solid state relay.  Inductive loads such as Motors, Valves, Pumps, Solenoids, and Large Transformers (including Fluorescent Lighting) benefit from the use of solid state relays because they reduce the chances of the inductive load interfering with the logic of the relay controller.

Setup for our RS232 Relay Controller shown above. Simply connect the Power and the Serial Cables and start sending commands.

About Serial Communications

Our RS-232 Relay Boards are fully E3C complaint, allowing up to 256 NCD devices to share a single RS-232 serial port.  Mix and match up to 256 devices in any combination.  Speak to each device individually or all devices at once.

To control the this Relay Controller,  simply connect a data and ground wire between the Relay Controller and computer or microcontroller. Provide +12 Volts DC to the board, and send ASCII character codes to control the relays.

Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on our Serial Relay Controllers.  Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.

Features include no-click startup, LED status lights, and E3C compliance.  Relays can be controlled at 9600 baud and the board is compatible with ANY computer or microcontroller capable of delivering RS-232 data.

Quick Start Kits

Also available is our QS12-F6 Quick Start Kit. Kit includes a high quality regulated switcher supply, serial cables, and an RSIO adapter board used to add a standard serial and power connector to this relay controller.

Quick Start Kit: QS12-F6
Quick Start Kits provide everything you need to begin using your RS232 relay controller.  Kit includes a high quality regulated switcher supply, serial cable, and RSIO adapter (shown below).
QS12-F6 $49

Choose a Solid State Relay for This Controller:

TYPE A

Crydom
D2W202F

SPST-NO

 2A 240VAC Normally Open SPST
Zero Crossing Turn On
Built-In Snubber Circuit
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
D2W Series Data Sheet		 $12.00/each

TYPE B

Crydom
CX240D5

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

 $15.00/each

TYPE C

Crydom
CX240D5R

SPST-NO

5A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
CX Series Data Sheet

 $16.00/each

TYPE D

Crydom
PF240D25R

SPST-NO

 25A 240VAC Normally Open SPST
Random Turn On
For Use with Inductive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet		 $28/each

TYPE E

Crydom
PF480D25

SPST-NO

 25A 480VAC Normally Open SPST
Zero Crossing Turn On
For Use with Resistive Loads
AC Switching ONLY
.06A Minimum Load Required
-30 to 80°C Operating Temperature
PF Series Data Sheet		 $30/each

TYPE F

Crydom
MPDCD3

SPST-NO

 3A 60VDC Normally Open SPST
For Use with Resistive or Inductive Loads
DC Switching ONLY
.02A Minimum Load Required
1.5V Maximum On-State Voltage Drop
-40 to 80°C Operating Temperature
PF Series Data Sheet
DC Solid State Connection Diagram		 $24/each

TYPE G - 45 Day Lead Time

Crydom
CMX60D20

SPST-NO

 20A 60VDC Normally Open SPST
For Use with Resistive or Inductive Loads
DC Switching ONLY
No Minimum Load Required
.1V Maximum On-State Voltage Drop
-30 to 80°C Operating Temperature
CX Series Data Sheet
 $65/each
NOTICE: Solid State Relays are Silent and Offer Extremely Long Life, but May Not Function Properly when Subjected to Radioactive Environments. Forced Air May be Required to Achieve Maximum Load Rating. NCD does NOT Recommend Driving any Relay at Maximum Load. It is Not Possible for NCD to verify Manufacturer Claims of Load Ratings. NCD Solid State Relay Controllers have NOT been Tested at the Rated Loads. Solid State Relays must be carefully selected, AC and DC solid state relays cannot be used interchangeably. Solid State Relays Require a Minimum Load, and will NOT Function Correctly Unless Minimum Load Requirements are Met. External Snubber Circuitry May be Required for Certain Applications. If a Device Turns On, but Does Not Turn Off, this Usually Indicates a Need for a External Snubber Circuit. This May Indicate Minimum Load Requirements Have Not Been Met. Please Research Crydom Solid State Relays or be Familiar with this Technology Prior to Purchase. Please Consult Crydom Engineers to Determine the Best Relay for Your Application www.crydom.com.

1-Channel Solid State RS-232 Relay Controller


  Quantity in Basket: None
Code: SSR1x
Price: $44.00
Shipping Weight: 0.50 pounds

Please Choose a Solid State Relay for this Controller:
This Item is Lead-Free RoHS Compliant :
RoHS Compliant
OPTIONAL: Quick Start Kit, Includes Serial Cable, Regulated +12 Volt Switcher Power Supply, and RSIO Serial Adapter Board with 6-Conductor Flex Ribbon Cable $49:
No Thanks! I don't need a Quick Start Kit
US - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply
US RoHS - 120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+10)
Intl - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$12)
Intl RoHS - 100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply w/4 Adapters (+$22)
OPTIONAL: USB to RS-232 Serial Adapter (Above Option Recommended) $24
Do you need any Software for this Controller?:
No Thanks! I don't need any software.
Yes! Please send N-Button Lite for the Limited Time Offer of just $29!
Yes! Please send N-Button Pro for the Limited Time Offer of just $99!

Quantity:

1-Channel Solid State RS-232 Relay Controller
