RSB-P Serial Booster

RSB Serial Booster + 12V Power Supply

Control this Device Over the Internet

Signal Switch Compatible

RSB Serial Booster + 12V Power Supply
$44/ea

RESOURCES:

FEATURES:

Compact, Low-Profile Design

Capable of Driving 20 NCD Devices

Operates up to 38.4K Baud

Control 16 2-Way NCD Devices

+12 Volt Supply Input

Quick Connect Terminal Blocks

Simple 3-Wire Operation

Low Signal Noise

Low Signal Cross-talk

2.5" x 1.75" PCB Outline Dimensions

RSB Serial Booster

*Stock #: RSB*
1-24	$24/ea
25-99	$22/ea
100+	$18/ea

RSB Serial Booster with 12 Volt Regulated Power Supply

*Stock #: RSB-P*
1-24	$44/ea

FOR USE WITH NCD DEVICES ONLY. NOT ELECTRICALLY COMPATIBLE WITH EQUIPMENT MANUFACTURED BY OTHER COMPANIES.

The RSB Serial Booster was designed to drive up to 20 optoisolated NCD devices from a single RS-232 serial port with a DB9 connector.

The RSB has been tested to drive RS-232 signals at 1000+ feet at data rates up to 38.4K baud. Simply plug it into your RS-232 port, provide +12 volts to power the board, and run the In, Out, and Ground lines to all devices on the network.

NCD devices use an open-collector (O.C.) system for communicating data back to the computer. O.C. RS-232 signals allow several devices to share 3 data communication wires, but are NOT compatible with standard RS-232 signals.

The RSB serial booster is used to convert these O.C. signals back into PC compatible RS-232 levels. Note that this device cannot be used to send data from NCD devices back to a Macintosh computer, but has been tested to be fully compatible with all PCs.

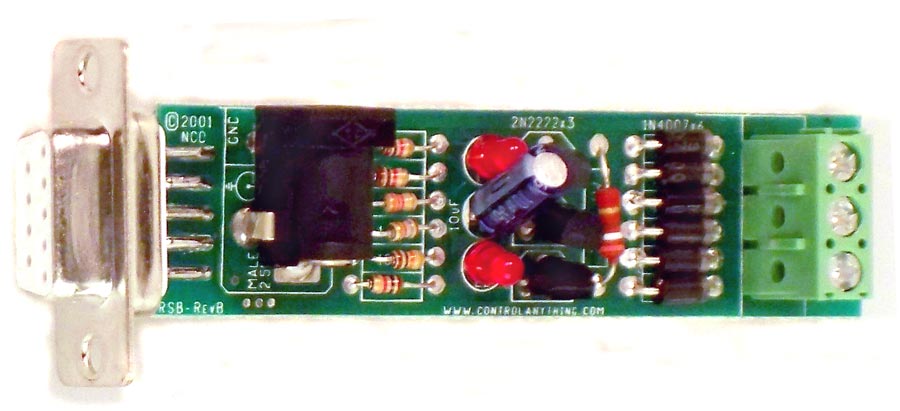

NEW REVISION B DESIGN:

NEW SMALLER BOARD WITH DB9 CONNECTOR SHOWN ABOVE, THE DB25 VERSION WAS DISCONTINUED.

RSB Serial Booster + 12V Power Supply

Quantity in Basket: None
Code: RSB-P
Price: $44.00
Shipping Weight: 1.10 pounds

	OPTIONAL: USB to RS-232 Serial Adapter (Above Option Recommended) $24
