Relay Control for Android™

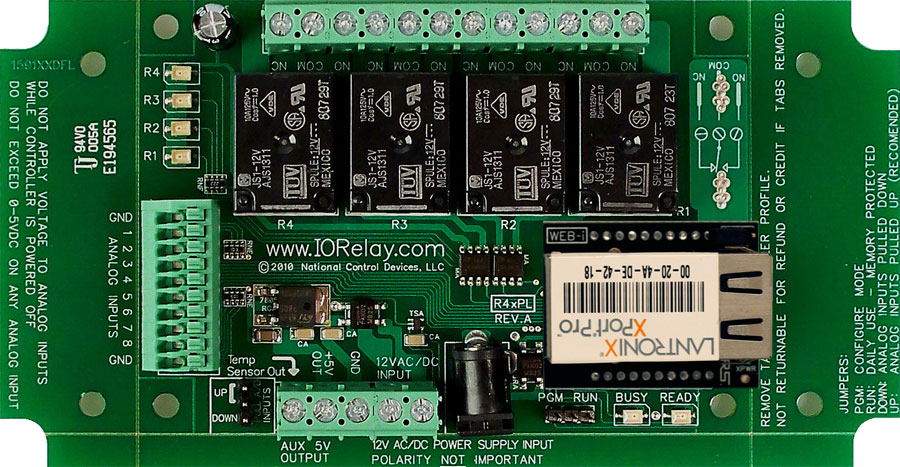

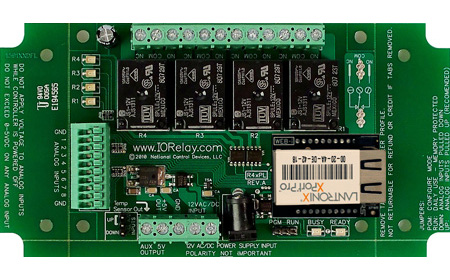

Web Based Android Relay - 4 Standard Power Relays with a Web-i Interface
Product Code: R4xPL_Web-i_Android
Web Relay Control for Android
- Control this Device Remotely from Anywhere in the World
- Enter link.signalswitch.com/MacAddress into the URL (requires port forwarding)
- Internet or LAN Controlled Web Relays for Android Tablets or Phones
- Bookmark the Browser Interface from your phone to run it like an App
- Supports Communication with multiple clients at the same time
- Supports Direct Internet Access Without link.signalswitch (this requires Static IP Address)
- No static IP Required for normal operation
- Includes Extensive Network Configuration Options
- Supports DHCP and Fixed IP Address
- Password Protection
- 8-Channel of 8/10-Bit Analog to Digital Conversion
This Product:
Power Supply Available
PWR12 Power Supply
 |
The PWR12 is regulated power supply providing clean power necessary for the performance of these boards |
| Stock#: PWR12 | $24/ea |
Key Resources:
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

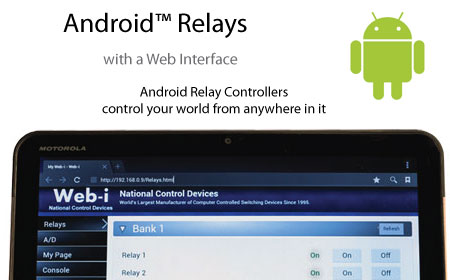

Web Controlled Relays for Android Mobile Devices
Access and Control Relays from Anywhere in the World from your Android Phone, Tablet, or any Android Device. No App Required! This relay controller has a tiny web server built-in, making it possible to control your relays from any web browser as long as your mobile device has internet access.
How it Works

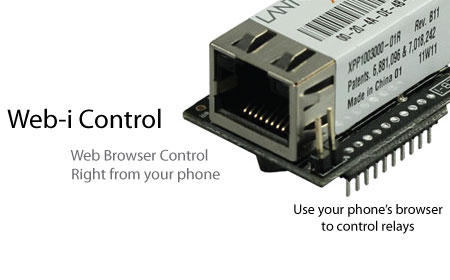

The Web-i interface built into our controllers plugs in to a router on your network. This tiny controller has built-in web pages, which give you access to the relays on the controller. You can use our web pages or you can edit the pages to make them look the way you want to.
Once your router is properly configured for port forwarding, users may access the web pages built into the Web-i interface from anywhere in the world just like it were a normal web site. Simply use the Web-i web pages to monitor and control your electronics or customize the pages for your own needs.
Connectivity of Web Relays
Control these relays using the preferred web browser of your smart phone. There are two main variations on communicating with the relays.
Local Control
Local control is the easiest way to gain access to your Web Relays. Local Control means your mobile and the Web-i relay controller are both connected on the same network in a local area. For instance, you are at work and your phone and Web-i device are connected to your office network using the same office router (which support Wi-Fi for your phone and Ethernet for the Web Relay controller).
Simply enter the IP address of the Web-i device into the URL bar of your favorite browser. You will have instant access to the web pages built in to the Web-i controller. When connected in this way, you will only have access to the relay controllers as long as your mobile device is in range of your local area network. Our second method gets around this limitation.
Global Control
Global control means you can control a Web-i enabled relay controller from anywhere in the world. This means your Android can access this device anywhere internet access is available. Before you can communicate to a Web-i device globally, your router MUST be configured to forward port 2101 (complete instructions on how to forward port 2101, please visit www.PortForward.com).
Once port forwarding is configured, you may access a Web-i device globally (no static IP address required). Simply go to the web browser of your mobile Android device and enter http://link.signalswitch.com/MACAddress into the URL. The MAC Address is actually a group of numbers and letters that are printed on top of the Web-i interface module (do not include spaces or dashes in the URL). Once the Web-i web page appears, bookmark the page so you can access your relays just like an App on your home screen. Using this method, you can be anywhere in the world and still monitor and control relays as long as your mobile device has an internet connection. It even works using 3G and 4G internet services, so you can be in your car and stay in control of your relays.
Attention: ZUSB Communication Module
Please Note: All customers are STRONGLY ADVISED to purchase at least ONE USB Communication Module (Part Number ZUSB). This communication module may be used to recover a controller or to reconfigure a controller should there be an accidental loss of communications. NCD Tech support may be unable to assist customers who do not have a USB Communications Module available for troubleshooting purposes.
Resources
| NCD Base Station Software |
Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device. |
| Web-i Quick Start Guide | Web-i Quick Start Guide Understanding the Web-i Interface and configuration |
| ProXR Quick Start Guide | ProXR Quick Start Guide Understanding configuration options and sending commands |
| A/D Quick Start Guide | A/D Quick Start Guide Understanding Analog to Digital Conversion |
| Wiring Diagrams | Wiring diagrams that will help you understand how to connect to your devices and use relays as a form of control logic |

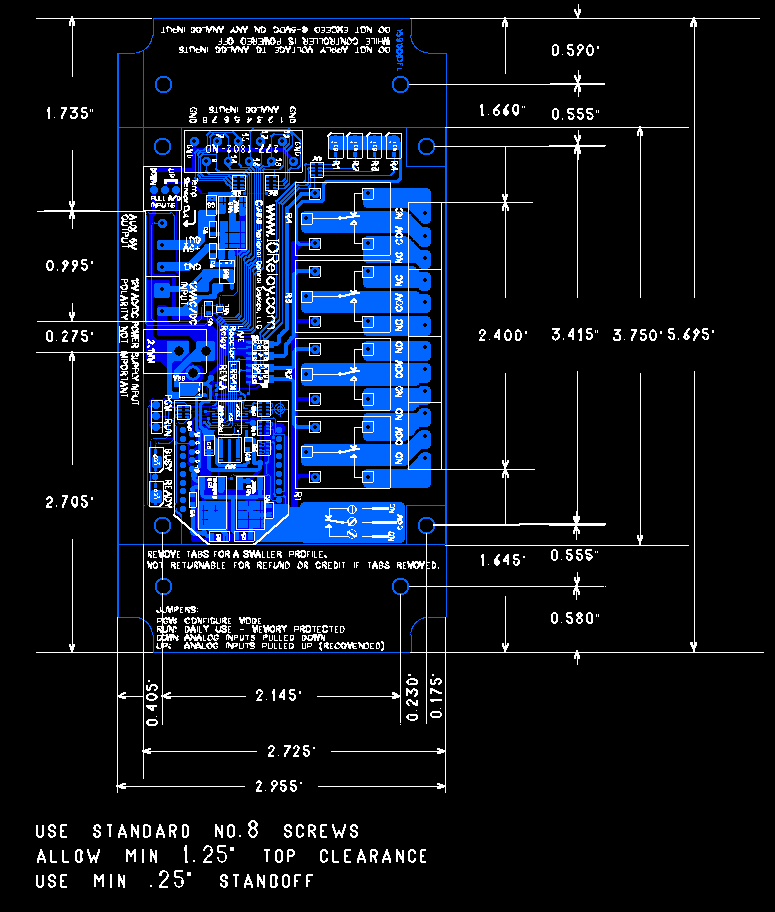

| Mechanical Drawing | Mechanical Drawing for this board |
