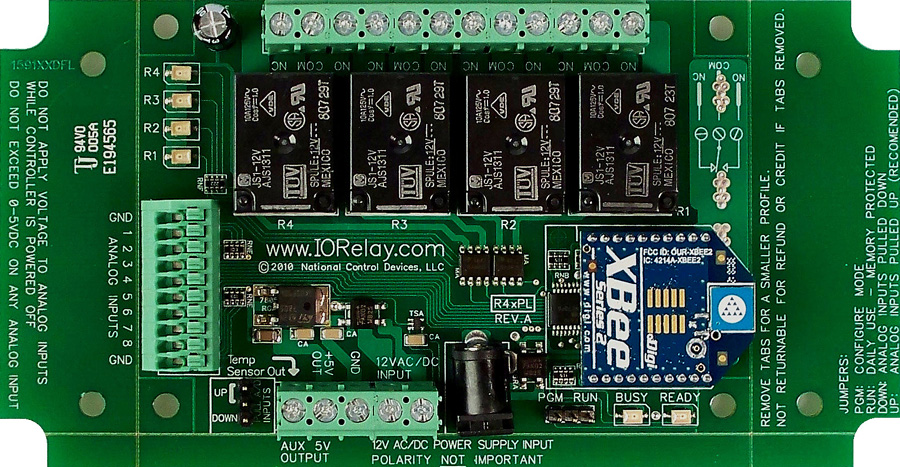

ProXR Lite Relay Controller

ProXR Lite Relay 4-Channel 5-Amp SPDT with ZB ZigBee Interface

Product Code: R45PL_ZBMESH

R45PL_ZBMESH ProXR Lite Relay Controller
R45PL_ZBMESH ProXR Lite Controller
The R45PL_ZBMESH features the same ProXR Command set as our more
expensive boards without the expandability of a full ProXR controller.
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

ProXR Lite Relay 4-Channel 5-Amp SPDT with ZB ZigBee Interface

$123.00/ea


ProXR Lite Series at a Glance

  • Low-Cost High-Volume Surface Mount Machine-Manufactured Design
  • Based on 5-Year Warranty Designs with Limited Warranty to Lower cost
  • Offers 100% Emulation of ProXR AD8 Firmware
  • 8-Channel of 8/10-Bit Analog to Digital Conversion
  • Supports 1, 2, 4, or 8 Relays on Bank 1
  • Not Expandable to Save Cost
  • Aggressive Quantity Discounts Available
  • Available with USB, 802.15.4, XSC, or ZigBee Mesh Interface


This video will introduce you to the world of ZB Mesh Networking and how we use it with our Relay Controllers.
Also read our Article on ZB Mesh Networking.



This video will show you how to setup the Hardware and Software portions of your ZB Mesh Relay Controller. After you've ensured that your Relay Controller is working properly with your computer you can begin writing custom software to control it or use the provided PROXR software.
Also read our Article on ZB Mesh Networking.



This video will show you how to troubleshoot your ZB Mesh Relay Controller using XCTU Software.
Also read our Article on ZB Mesh Networking.



This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.



This movie will explain the different expansion options that can be used with our controllers.



Test of the range of our Wireless Communication Options



Test of the range of our IEEE 802.15.4 Wireless Communication Options

Resources:

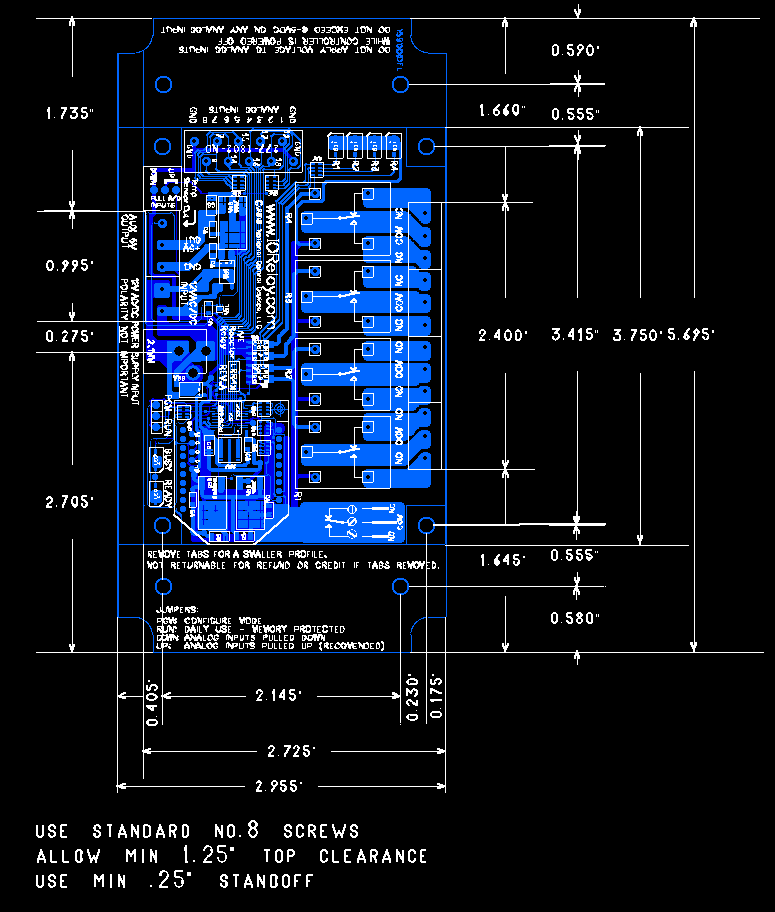

Download USB Drivers NCD Base Station Software Configuration Utility Download Manual Download ProXR Software NCD Component Library Wiring Diagrams Mechanical Drawing

This Product:

R45PL_ZBMESH
Ratings AC DC
Voltage 240 24
Amperage 5 5
R45PL_ZBMESH ProXR Lite Relay
 ProXR Lite Relay 4-Channel 5-Amp SPDT with ZB ZigBee Interface
Stock#: R45PL_ZBMESH
1-9 $123.00

Related Products:

R410PL_ZBMESH
R45PL_ZBMESH ProXR Lite Relay
 ProXR Lite Relay 4-Channel 10-Amp SPDT with ZB ZigBee Interface
Stock#: R410PL_ZBMESH
1-9 $133.00

Power Supply Available

PWR12 Power Supply
 The PWR12 is regulated power supply providing clean power necessary for the performance of these boards
Stock#: PWR12 $48/pr


Enclosure Available

DFL Enclosure
Purchase two enclosures for this controller
 The DFL Enclosure is an undrilled, non-waterproof enclosure and is available at checkout for this controller.
Stock#: ENC-DFL $20/ea


Questions?

AccessNCD

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
Credit Cards Accepted
PayPal Accepted
Google Checkout Enabled
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

Wireless ZB ZigBee Mesh Networking
ProXR Lite Enhanced with A/D

Take all the Power of the ProXR Command Set
...add the Power of a ZB ZigBee Networking Interface..
...and you've got  More That a "Lite Relay Controller"!

Available as a ZB ZigBee Mesh Network Mesh Networking Router Icon Router or Mesh Networking Endpoint Icon Endpoint

The latest Buzz in Wireless Technology is ZB ZigBee.  ZB ZigBee is a great way to communicate data throughout buildings (or even across town) because it uses all the devices in the area to make sure your data arrives at its intended destination.  ZB ZigBee automatically hops your data all over the ZB ZigBee Mesh Network,  transparently forwarding your data to its intended destination.  The beauty of ZB ZigBee is that you don't have to do anything except tell it where you want your data to go.  The ZB ZigBee Mesh Network handles everything else for you.  We have created a page dedicated to helping ZB ZigBee Mesh Network users understand this technology.  So if you are a first time user of ZB ZigBee and you are looking for a great place to get started, see our article!

By combining the power of ZB ZigBee Mesh Networking with our ProXR series relay controllers, you can take advantage of our powerful ProXR command set for data collection and control, in combination with many wireless ZB ZigBee Mesh Networking features.  ZB ZigBee is a perfect integration of good speed and excellent reliability, and for the first time, you can now improve data reliability by adding routers between the computer and far away devices.

Here is a quick rundown of what you should expect from ZB ZigBee Mesh Network:

Plug a ZB ZigBee Coordinator into the USB Port of your computer.  The Coordinator will be used to communicated to your wireless ZB ZigBee Mesh Network.  The Coordinator will mount as a COM port on your PC.  Open the COM port and start sending data to the Coordinator.  The Coordinator will forward your data to any or all devices on the ZB ZigBee Mesh Network.

A ZB ZigBee Mesh Network consists of up to three components:
Mesh Networking Coordinator Icon
Mesh Networking Communications Icon
Mesh Networking Router Icon
Mesh Networking Communications Icon
Mesh Networking Router Icon
Mesh Networking Communications Icon
Mesh Networking Endpoint Icon		 A Coordinator is Required because it allows your computer to talk to the ZB ZigBee Mesh Network.  Use only ONE coordinator in your ZB ZigBee Mesh Network.
A Router allows data to hop to another part of the ZB ZigBee Mesh Network.  It helps contribute to the network, and it can serve as an Endpoint device.  In other words, if a relay controller has the Router firmware installed, you can talk to this device directly, or data can be forwarded from this device to another device that may be too far away for the Coordinator to reach directly.  Routers are slower than endpoint devices, so use routers wisely.
An Endpoint device can also be a relay controller or many other types of NCD devices.  However, endpoint devices cannot forward data to other parts of the ZB ZigBee Mesh Network.  Endpoint devices are faster than router devices, so it is always wise to use Endpoint devices when possible, and router devices when required.
Learn More: Introduction to ZB ZigBee Mesh Networking.....

ProXR Lite Is Here!

A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a list of great features:

User Friendly Board Design
  • Surface mount allows for a smaller board
  • Break-A-Way Tabs lets you decide the board's size
  • Interchangeable interfaces allows you to upgrade or change your interface at any time
ProXR Lite Features
  • Works with the full ProXR Command Set
  • 8-Channel 8/10-Bit Analog to Digital Converter
  • Highly reliable relay with industry leading command set
ProXR Lite Limitations
  • This controller cannot be expanded

ProXR Lite Relay Controller

The ProXR Lite Series is a great alternative for those looking for a low cost solution that requires the power and reliability of a ProXR Controller. With a wide selection in Relay type and Communication Interface there is a ProXR Lite board to match your application. Every ProXR Lite Board has Breakaway Tabs that give you the option to make the board smaller or fit it for an enclosure. Interchangeable Interface Modules allow you to switch communication interfaces by simply powering down the device and replacing the module.

The ProXR Lite series are based on the same designs that offer a 5 year warranty. However, in an effort to further save cost, we have limited the warranty of the ProXR Lite series controllers. ProXR Lite series controllers are guaranteed ONLY against manufacturing and functionality defects for a period of 30 days. Controllers that are damaged by our customers will not be warranted under any circumstances. ProXR Lite series controllers are designed for long life; however, should they be damaged, they should be discarded and replaced.

Unlike the ProXR series relay controllers, ProXR Lite series controllers are NOT expandable. The firmware still thinks 256 relays are available, however, the relay portion of the controller only responds to the first 1, 2, 4 or 8 relays in Bank 1. We did NOT skip the Analog Input portion of the ProXR Lite. All ProXR Lite controllers offer a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control. The ProXR Lite responds to the same firmware as the ProXR series controllers and is therefore 100% compatible with any applications designed to work with a ProXR series controller (click here to see the ProXR command set).

A/D Conversion on the R45PL_ZBMESH

Analog to Digital conversion is available on the R45PL_ZBMESH controller.  Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution.  A/D Inputs are useful for reading, temperature sensors light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.  Built-In Pull-Up/Down Resistors keep the inputs quiet.  Eight Different A/D Sample programs are available in the NCD Component Library.  These samples are available as a free download and are compatible with Visual Studio.   We've got sensors!  Visit our Sensor Page for sensors that have been tested and work with the R45PL_ZBMESH controller.

Read More About Analog to Digital Conversion
