National Control Devices: 4-Channel 3-Amp DPDT Relay Controller with RS-232 and Relay Interface

RS232 Relay Control with Terminal Block & RS232 Interface

4-Channel 3-Amp DPDT Relay Controller with RS-232 and Relay Interface

Product Code: R43DPDTCNRS

Convenient Terminal Blocks for easy electronic connections and Integrated RS232 and power connections the R43DPDTCNRS provides reliable serial communications and easy setup.

Control this Device Over the Internet

Signal Switch Compatible

4-Channel 3-Amp DPDT Relay Controller with RS-232 and Relay Interface

$119.00/ea

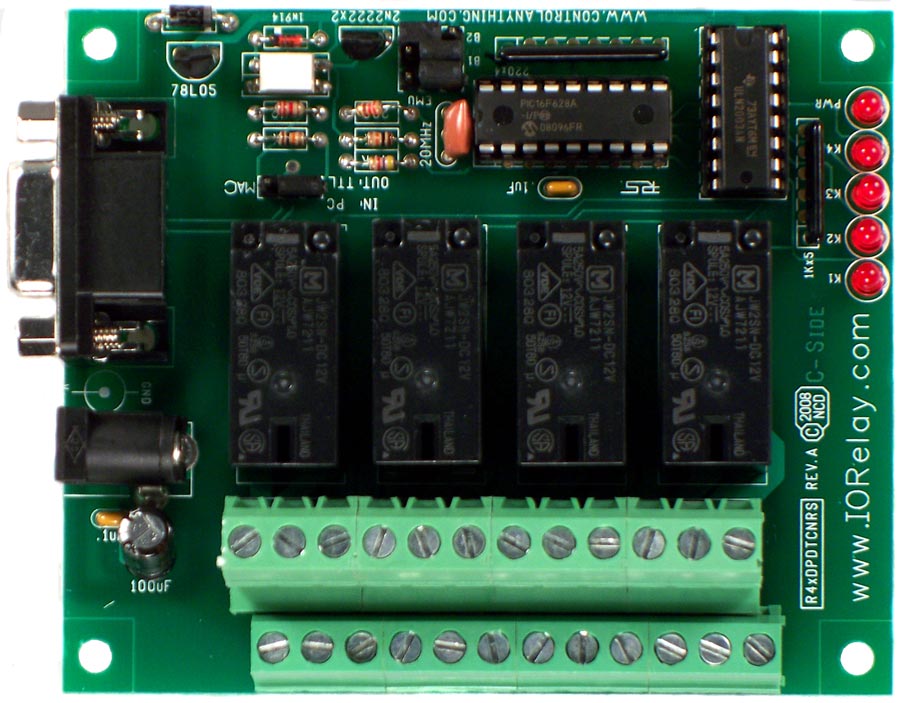

Setup for the R43DPDTCNRS RS232 relay shown above with onboard Serial and power connections. Simply Connect the Serial Interface to your Relay Controller, connect the Power and Serial Cable and start sending commands.

CNRS Series Relay at a Glance

DPDT Relay Configuration
9600 Baud Operation
Relay Status LEDs
Integrated standard serial and power connector
Convenient Terminal Blocks for easy electronic connections
E3C Compliant
Programmable E3C Device Number
High-Quality Sealed Relays
Overkill Transistor Drivers
+12 Volt Operation, 2-Wire RS-232
No-Click Power-up
See Manual for Outline Dimensions

Introduction to Relay Control

Learn how computer controlled relays communicate and control

Intro to Wired Communications

Learn the basics of wired communications and find the right wired controller for your application

Induction Suppression

Learn about Induction Suppression and how to counter it using Capacitors

How to Find the Com Port

Learn how to find the Com Port that your Device is using

This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.

Watch to find out the advantages of wired communications and the differences between wired communications.
Also read our Articles on Communication Protocols.

This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.

This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.

Resources:

NCD Base Station Software Download Manual E3C Complient NCD Component Library Wiring Diagrams

This Product:

R43DPDTCNRS

Ratings	AC	DC
Voltage	120	12
Amperage	3	3

	4-Channel 3-Amp DPDT Relay Controller with RS-232 and Relay Interface
Stock#: R43DPDTCNRS	$119.00

Related Products:

R43DPDT

	Quad 3-Amp DPDT Signal Relay Controller Board
Stock#: R43DPDT	$99.00

R43DPDTCN

	4-Channel 3-Amp DPDT RS-232 Relay Controller with Relay Interface
Stock#: R43DPDTCN	$109.00

Desktop Control

N-Button Lite

Desktop Control & Monitoring

	N-Button creates up to 8 desktop widgets to control relays without any programming. Order Today with This Board for Only $29
Stock#: N-Button Lite	$49.00

Questions?

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.

Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

Relay Control with Terminal Block & RS232 Interface

Integrated standard serial and power connector
Convenient Terminal Blocks for easy electronic connections
Highly Reliable Relay Board For Demanding Applications

RS-232 Serial Relay Controller

This relay controller was developed for users with low-current, low-signal switching applications such as telecommunications, networking, video, line-level audio, and much more.

This relay is equipped with terminal blocks for convenient connection of electronic devices. This controller also has on-board serial and power connector. Simply connect the power and serial cables and start sending commands. Power supply and serial cable are available during checkout.

This device uses DPDT relays. A single DPDT relay is made up of 2 SPDT switches. So each relay acts as two switches that are activated at the same time. This allows two independent signals to be switched at one time. In effect, there are two independent switches on a single DPDT relay.

Features include no-click startup, LED status lights, and E3C compliance. Relays can be controlled at 9600 baud and the board is compatible with ANY computer or microcontroller capable of delivering RS-232 data.

Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on this Relay controller. Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.

To control this Relay Controller, simply connect a data and ground wire between the board and computer or microcontroller. Provide +12 Volts DC to the board (available at checkout), and send ASCII character codes to control the relays.

This Relay Controller is fully E3C complaint, allowing up to 256 NCD devices to share a single RS-232 serial port. Mix and match up to 256 devices in any combination. Speak to each device individually or all devices at once.

Connect this board to the USB port of your computer using a USB to Serial adapter. The USB to Serial Adapter is available at checkout.

NCD Component Library

Fully functioning programs for the Pro Series Controllers are included with the NCD Component Library. With the NCD Component Library we've "started" the programming for you. We say started because these are fully functioning samples but we've also included the source code so you can customize them to your exact needs. The NCD Component Library is a plug-in for the Visual Studio 2005/2008 that greatly simplifies the communications to the NCD product line. The samples can be run in Visual Studio and fully customizable to your needs. Four different Pro Series samples are available including Relay Control, Read Status and Timing Features , to view screen shots of each sample visit our NCD Component Library Page. Start by downloading the FREE NCD Component Library and you will be communicating with any NCD device faster that ever!

The above sample demonstrates control and status read of up to 8 Relays. Compatible with all Pro (NOT ProXR) Series Relay Controllers, Including 4 and 8-Channel SPDT and DPDT Versions.

The above screen shot shows one of the four available fully functioning Pro Series samples that are available with the NCD Component Library. View all the examples on our NCD Component Library Page.

Desktop Relay Control

N-Button creates widgets or buttons to control up to eight relays without any programming. A new button will be created and placed on the desktop of your computer for each relay that you want to control. N-Button Lite supports Serial Port/ USB and Network connection between PC and relay board. N-Button Manager makes it easy to add any type of button to the desktop and change the properties.

Relay Button widgets turn relays on/off directly. It has never been so easy to control relays before.


Relay Status widgets show status of the relay automatically right on the desktop!

N-Button Lite is available as a free download. Look for the Desktop Control section to the right to download.

N-Button Lite version supports up to 8 widgets. If you want to add more than 8 widgets, you need upgrade to the standard version.

Essential Accessories: PWR12 and SER
These Accessories provide everything you need to begin using your RS232 relay controller. Accessories needed for this board are a high quality regulated switcher supply and a serial cable (shown below). These items are available at checkout when purchasing the controller.

PWR12 12 Volt 1.25 Amp Power Supply	$24/ea	SER 6 ft. Serial Cable DB9M-DB9F	$6/ea

	NEW TO RS232 COMMUNICATIONS? GET STARTED HERE Click the above link for an exclusive article on RS232 Communications
RS232 Relay Article	RS232 Relay Article
Download Manual	Download the R45/R410 R85/R810 Pro Product Manual
E3C Complient	Download E3C Complient Specs
NCD Component Library	The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes four example applications compatible with the Pro Series.
Wiring Diagrams	These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic

4-Channel 3-Amp DPDT Relay Controller with RS-232 and Relay Interface

Quantity in Basket: None
Code: R43DPDTCNRS
Price: $119.00
Shipping Weight: 0.50 pounds

RoHS (Lead Free) Options:

	Non-RoHS Compliant
	RoHS Compliant (+$10)

Do you need a Power Supply?:

	No Power Supply will be Included
	120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+$24)
	100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$36)

Do you need a Serial Cable?:

	No Serial Cable will be Included
	6 Foot Serial Cable DB9M to DB9F (+$6)

Quantity:

4-Channel 3-Amp DPDT Relay Controller with RS-232 and Relay Interface
