Product Discontinued
This product has been replaced by R420PL_WEB-I

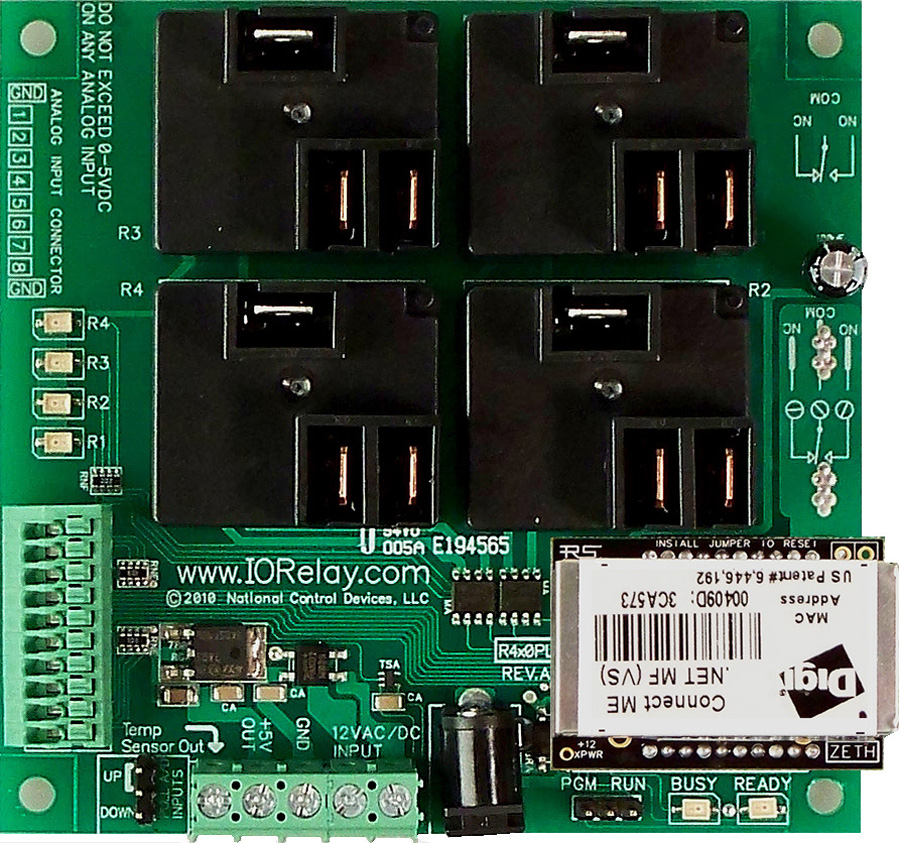

ProXR Lite Relay Controller with a Web Interface
Discontinued - This item has been replaced by a new Item, see product description for details
Product Code: R420PL_ZETH-NET
The R420PL_ZETH-NET features the ZETH New Network Communications Module designed
to bring Network Connectivity to NCD Devices! Plus the ProXR Lite features the same ProXR
Command set as our more expensive boards without the expandability of oua full ProXR controller.
Control this Device Over the Internet
Signal Switch Compatible
Discontinued - This item has been replaced by a new Item, see product description for details
$293.00/eaWeb Controlled Relays!
ProXR Lite -NET Series at a Glance
- Internet or LAN Controlled Web Relays
- Supports Multiple Communication Methods Simultaneously
- Supports Direct Internet Access Without a Server
- Bookmark the Browser Interface from your phone to run it like an App
- Supports Direct Connection to SignalSwitch.com
- Includes Extensive Network Configuration Options
- Web-Browser Interface for ProXR, Reactor, Taralist Series Controllers
- Supports DHCP
- Password Protection
- Offers 100% Emulation of ProXR AD8 Firmware
- 8-Channel of 8/10-Bit Analog to Digital Conversion
from the browser of your phone or computer and run it similarly to an application.
Video Resources
(Select a thumbnail to view the video)-NET Introduction
Learn about our Web Controlled Relays
Introduction to Ethernet
Learn about Ethernet Communications and how it is utilized by our Relay Controllers
Ethernet Setup
Watch as we show you how to Set Up the Hardware and explain your options for the Software necessary to Communicate to your Controller
Virtual Serial Port Setup
Learn how to use Digi Realport to Set Up a Virtual Com Port to communicate to your Networking Relay Controller
Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Resources:
This Product:
R420PL_ZETH-NET
| Ratings | AC | DC |
|---|---|---|
| Voltage | 240 | 24 |
| Amperage | 20 | 20 |
|
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: R420PL_ZETH-NET | |
| 1-9 | $293.00 |
Related Products:
R430PL_ZETH-NET
 |
Discontinued - This item has been replaced by a new Item, see product description for details |
| Stock#: R430PL_ZETH-NET | |
| 1-9 | $304.00 |
Power Supply Available
PWR12 Power Supply
 |
The PWR12 is regulated power supply providing clean power necessary for the performance of these boards |
| Stock#: PWR12 | $48/pr |
Questions?
At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

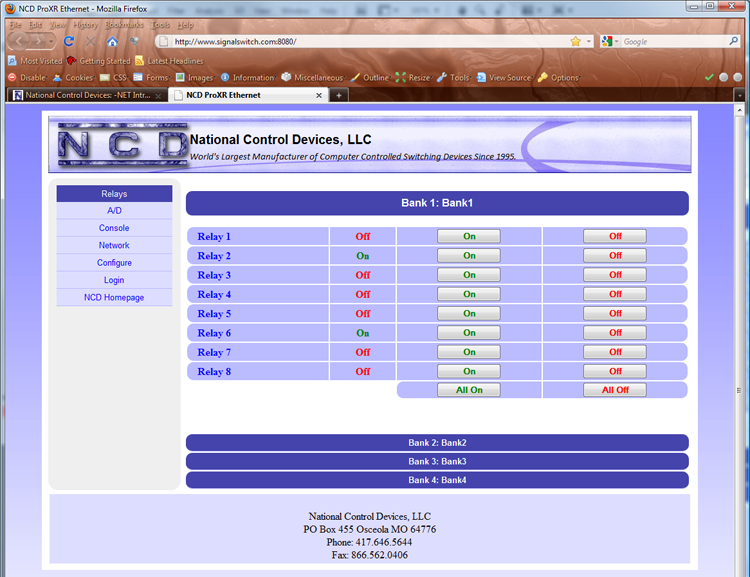

Watch This Video and Check Out the Sample Interface
Ethernet ProXR Lite Enhanced with a .Net Framework
ZETH-NET uses Digi Stock Digi .Net Framework Communications Module
Pre-Programmed with ProXR Server Firmware
Control Anything from Anywhere with just the Internet and a Browser
Watch this Video and Check Out our
Demo Page to
Learn About this Powerful New Controller
ZETH-NET uses Digi .Net Framework Communications Module Pre-Programmed with ProXR Server Firmware, Allowing a Web Browser to Access and Control an NCD Device from a Local Network or Anywhere in the World. Go to our demo page and take control of one of our -NET controllers here in the offices of NCD from anywhere in the world.
Control this Device Remotely from Anywhere in the World
Control this Web Relay from anywhere you can get an internet connection and on any device with a web browser. That means that your computer, PDA, cell phone, iPhone or iPad becomes a remote control for this device! This new services is available through our website Link.Signalswitch.com. Here's how it works, each .NET module has a unique MAC address printed on the top and you can simply enter http://link.signalswitch.com/MacAddress into the URL. Example: http://link.signalswitch.com/00409D43F71C and then type in the password. It's that simple, after a few moments you will be granted access to the controller. A static IP address is NOT REQUIRED for remote access and the device and computer MUST have separate internet connections.You can Demo This Interface Now at http://www.signalswitch.com:8080/ and control a Live Board here in our office.
Control this Device from a Local Area Network
This device can also be controlled over a Local Area Network. You may need to log into your router to find the IP address. Take note of the MAC address printed on the top of the .NET controller. Your router will display a list of IP addresses and associated MAC addresses. Take note of the IP address that matches the printed MAC address on your controller. Open any web browser and type the IP address into the URL.ProXR Lite Is Here!
A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a list of great features:
User Friendly Board Design- Surface mount allows for a smaller board
- Break-A-Way Tabs lets you decide the board's size
- Interchangeable interfaces allows you to upgrade or change your interface at any time
- Works with the full ProXR Command Set
- 8-Channel 8/10-Bit Analog to Digital Converter
- Highly reliable relay with industry leading command set
- This controller cannot be expanded
ProXR Lite Relay Controller
The ProXR Lite Series is a great alternative for those looking for a low cost solution that requires the power and reliability of a ProXR Controller. With a wide selection in Relay type and Communication Interface there is a ProXR Lite board to match your application. Every ProXR Lite Board has Breakaway Tabs that give you the option to make the board smaller or fit it for an enclosure. Interchangeable Interface Modules allow you to switch communication interfaces by simply powering down the device and replacing the module.
The ProXR Lite series are based on the same designs that offer a 5 year warranty. However, in an effort to further save cost, we have limited the warranty of the ProXR Lite series controllers. ProXR Lite series controllers are guaranteed ONLY against manufacturing and functionality defects for a period of 30 days. Controllers that are damaged by our customers will not be warranted under any circumstances. ProXR Lite series controllers are designed for long life; however, should they be damaged, they should be discarded and replaced.
Unlike the ProXR series relay controllers, ProXR Lite series controllers are NOT expandable. The firmware still thinks 256 relays are available, however, the relay portion of the controller only responds to the first 1, 2, 4 or 8 relays in Bank 1. We did NOT skip the Analog Input portion of the ProXR Lite. All ProXR Lite controllers offer a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control. The ProXR Lite responds to the same firmware as the ProXR series controllers and is therefore 100% compatible with any applications designed to work with a ProXR series controller (click here to see the ProXR command set).
A/D Conversion on the R420PL_ZETH-NET
Analog to Digital conversion is available on the R420PL_ZETH-NET controller. Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution. A/D Inputs are useful for reading, temperature sensors light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of. Built-In Pull-Up/Down Resistors keep the inputs quiet. Eight Different A/D Sample programs are available in the NCD Component Library. These samples are available as a free download and are compatible with Visual Studio. We've got sensors! Visit our Sensor Page for sensors that have been tested and work with the R420PL_ZETH-NET controller.Read More About Analog to Digital Conversion
ZETH-NET Web Relay Features

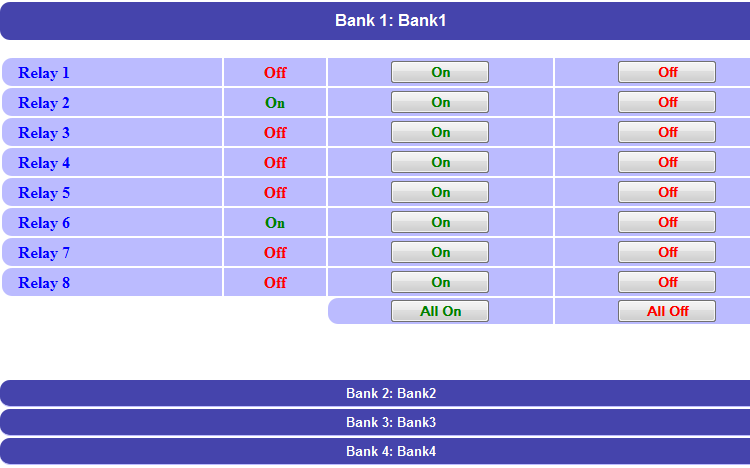

ZETH-NET is an Open-Source project that offers a powerful web-browser interface for direct control of relays from a web-page served directly to users from the ZETH-NET module, without the need for a server. In addition to a web browser relay control interface, ZETH-NET devices also allow you to control the device from your own software through direct TCP/IP communications while still hosting a web browser interface. Write software that directly accesses the controller or access the control from your web browser.
As an Open-Source project, you can customize the interface as needed using .NET development tools. The Open-Source project for ZETH-NET opens December, 2010. We have an Expected ship date of June 15th for the new ZETH-NET module. You can preorder the ZETH-NET module for this controller when you place this controller in the shopping cart. Use the chart below to compare features of the ZETH-ME and ZETH-NET Ethernet Modules.
| Additional Features: | ZETH-NET |
| Supports Direct TCP/IP Communications | YES |
| Supports Direct Connection to SignalSwitch.com | YES |
| Supports Multiple Communication Methods (Above) Simultaneously |
YES |
| Supports Direct Internet Access Without a Server (requires static IP) |
YES |
| Open-Source User-Upgradeable (requires development software) | YES |
| Web-Browser Interface for ProXR Series Controllers | YES |
| Web-Browser Interface for Reactor Series Controllers | YES |
| Web-Browser Interface for Taralist Series Controllers | YES |
| Web-Browser Interface for Network Configuration | YES |
| Supports DHCP | YES |
| Supports Fixed IP Address | NO |
| Password Protection | YES |
Resources
 |
NEW TO WEB RELAY CONTROL? GET STARTED WITH OUR ZETH-NET MODULES Click the above link for an exclusive article on Web Relay Communications |
| Configuration Utility |
 Download the NCD Configuration Utility |
| Download Manual | Download Product Manual |
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
| Wiring Diagrams | These wiring diagrams will help you understand how to connect to your devices and use relays as a form of control logic |

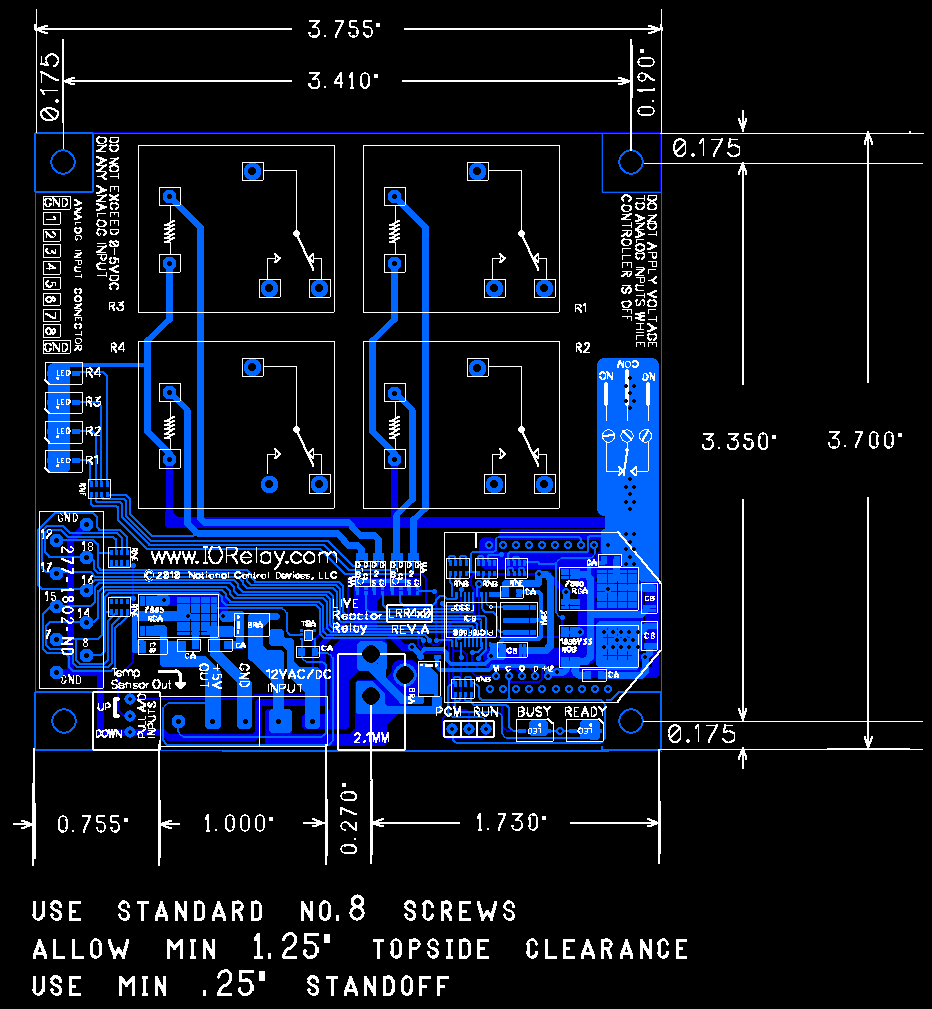

| Mechanical Drawing | Mechanical Drawing for this board |
