Bluetooth ProXR Lite Relay Controller

ProXR Lite Relay 2-Channel 30-Amp SPST with Bluetooth Interface

Product Code: R230PL_ZBT

Bluetooth Relay Controller Controller
R230PL_ZBT will allow wireless computer controlled switching from any Bluetooth enabled computer. The R230PL_ZBT uses a Bluetooth Module to connect to the Bluetooth Access Point of your computer or mobile device allowing for high speed reliable switching.
Compliance to ROHS Standards



Control this Device Over the Internet
SignalSwitch.com
Signal Switch Compatible

ProXR Lite Relay 2-Channel 30-Amp SPST with Bluetooth Interface

$179.00/ea

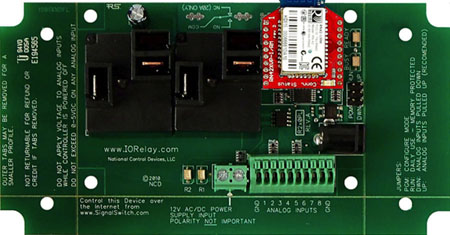

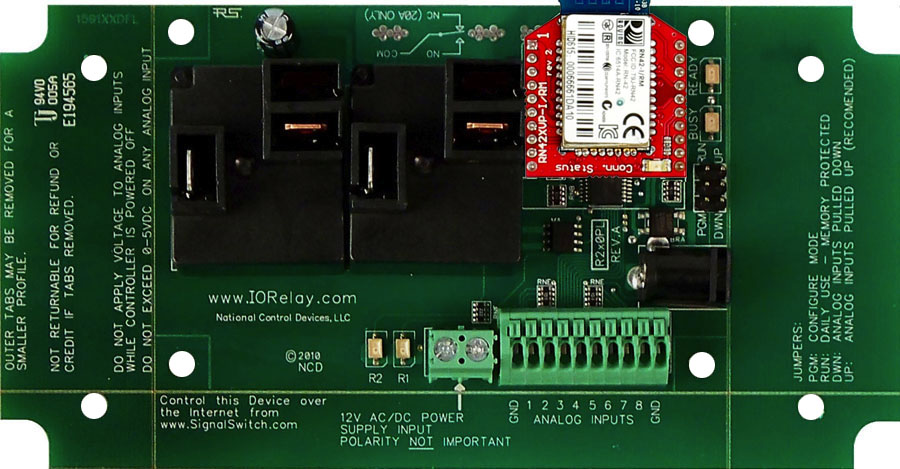

The R230PL_ZBT Bluetooth relay shown above has an onboard Bluetooth Module.  A Your Bluetooth device can access multiple Bluetooth Boards if within range.

Bluetooth ProXR Lite Series at a Glance

  • Low-Cost High-Volume Surface Mount Machine-Manufactured Design
  • Bluetooth Wireless Interface Mounts as a Virtual COM Port on your PC, Laptop, or PDA for Easy Programming and 100% Compatibility Across ALL Operating Systems
  • Offers 100% Emulation of ProXR AD8 Firmware
  • 8-Channel of 8/10-Bit Analog to Digital Conversion
  • Supports 1, 2, 4, or 8 Relays on Bank 1
  • Not Expandable to Save Cost
  • Access Multiple Bouetooth Boards if Within Range


Learn how to configure your Bluetooth Module.



This video is a basic introduction to the world of Computer Controlled Switching and Relays in general.
Also read our "Introduction to Computer Control" Article.



Watch to find out the advantages of wireless communications and the differences between wireless communications.
Also read our Articles on Communication Protocols.



This video will show you what Induction is and how to use Capacitors to Suppress it.
Also read our Article on Induction Suppression.



Learn about the mechanics, applications, and tricks to Analog to Digital Conversion.
Also read our Article on Analog to Digital Conversion.



This movie will show you how to find the Com Port assigned to your Relay Controller.
The first half of the video will show you how to do so in Windows Vista and the second half is using Windows XP.



This movie will explain the different expansion options that can be used with our controllers.



Test of the range of our Wireless Communication Options



Test of the range of our IEE 802.15.4 Wireless Communication Options

Resources:

Configuration Software NCD Base Station Software Download ProXR Manual Component Library Mechanical Drawing

This Product:

R230PL_ZBT
Ratings AC DC
Voltage 240 24
Amperage 30 30
Bluetooth Relay
 ProXR Lite Relay 2-Channel 30-Amp SPST with Bluetooth Interface
Stock#: R230PL_ZBT $179.00


Related Products:

R220PL_ZBT
Bluetooth Relay
 ProXR Lite Relay 2-Channel 20-Amp SPDT with Bluetooth Interface
Stock#: R220PL_ZBT $169.00


Enclosure Available

CFL Enclosure
Purchase two enclosures for this controller
 The CFL Enclosure is an undrilled, non-waterproof enclosure and is available at checkout for these controllers.
Stock#: ENC-CFL $14/ea


Power Supply Available

PWR12 Power Supply
 The PWR12 is regulated power supply providing clean power necessary for the performance of these boards
Stock#: PWR12 $24/ea


Questions?

AccessNCD

At AccessNCD we give you access to NCD technicians, developers and other customers! Our highly trained technicians and developers responding are the same ones designing and using these boards. If you are working on a sensitive project your questions can be posted privately without being posted to the public forum. Visit Today!

QUANTITY DISCOUNTS UP TO 100 PIECES ARE BUILT INTO OUR SHOPPING CART. CHANGE YOUR ORDER QUANTITY TO SEE QUANTITY PRICING.
Credit Cards Accepted
PayPal Accepted
Google Checkout Enabled
Shipping and Payment Information
Warranty Information
National Control Devices, LLC www.controlanything.com Since October, 1995 .

Bluetooth ProXR Lite Relay with A/D Conversion

Bluetooth Virtual COM Relay Controller with 8-Channels of
Analog to Digital Conversion and the ProXR Command Set

About Bluetooth:

Our New Bluetooth ProXR Lite Series Relay Controllers make it easy to add computer controlled switching to your most demanding computer control applications.  Simply find it from your Bluetooth enabled computer and this controller mounts as a Virtual COM Port on your PC, allowing easy programming from any language that supports serial communications.

This ProXR Lite series controller connects to the Bluetooth adapter of your computer or other Bluetooth enabled device and requires a 12VDC Power Supply.  Once powered up, the relay controller waits for a command.  A command consists of a few bytes of data.  Usually between 2 and 6 bytes.  Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command.

ProXR Lite Is Here!

A more streamlined manufacturing process brings a more durable, reliable and better relay board to the market. Here's a list of great features:

User Friendly Board Design
  • Surface mount allows for a smaller board
  • Break-A-Way Tabs lets you decide the board's size
  • Interchangeable interfaces allows you to upgrade or change your interface at any time
ProXR Lite Features
  • Works with the full ProXR Command Set
  • 8-Channel 8/10-Bit Analog to Digital Converter
  • Highly reliable relay with industry leading command set
ProXR Lite Limitations
  • This controller cannot be expanded

ProXR Lite Relay Controller

The ProXR Lite Series is a great alternative for those looking for a low cost solution that requires the power and reliability of a ProXR Controller. With a wide selection in Relay type and Communication Interface there is a ProXR Lite board to match your application. Every ProXR Lite Board has Breakaway Tabs that give you the option to make the board smaller or fit it for an enclosure. Interchangeable Interface Modules allow you to switch communication interfaces by simply powering down the device and replacing the module.

The ProXR Lite series are based on the same designs that offer a 5 year warranty. However, in an effort to further save cost, we have limited the warranty of the ProXR Lite series controllers. ProXR Lite series controllers are guaranteed ONLY against manufacturing and functionality defects for a period of 30 days. Controllers that are damaged by our customers will not be warranted under any circumstances. ProXR Lite series controllers are designed for long life; however, should they be damaged, they should be discarded and replaced.

Unlike the ProXR series relay controllers, ProXR Lite series controllers are NOT expandable. The firmware still thinks 256 relays are available, however, the relay portion of the controller only responds to the first 1, 2, 4 or 8 relays in Bank 1. We did NOT skip the Analog Input portion of the ProXR Lite. All ProXR Lite controllers offer a 8-Channel 8/10-Bit Analog to Digital Converter in addition to relay control. The ProXR Lite responds to the same firmware as the ProXR series controllers and is therefore 100% compatible with any applications designed to work with a ProXR series controller (click here to see the ProXR command set).

A/D Conversion

8 Channel A/D Connector - Click for Larger Picture Analog to Digital Conversion allows you to read voltage levels from 0-5 volts using 8-bit or 10-bit resolution.  This is particularly useful for reading temperature sensors (one temperature sensor is built into the board, shared with analog input number 8).  A/D Inputs are also useful for reading light level sensors, thermocouples, switch closures, or just about any other kind of sensor you can think of.  Built-In Pull-Up/Down Resistors keep the inputs quiet.  Eight Different A/D Sample programs are available in the NCD Component Library.  These samples are available as a free download and are compatible with Visual Studio.   We've got sensors!  Visit our Sensor Page for sensors that have been tested and work with all NCD A/D Boards controller.

Read More About Analog to Digital Conversion

Free ProMOTE Software

ProMOTE Lets you Control NCD Devices from your Phone, PDA, Pocket PC, or Computer!  Create your OWN Interface to Control NCD Devices with NO PROGRAMMING!!...Best of All...It's FREE!!!

The ProMOTE Software now ELIMINATES THE NEED FOR PROGRAMMING!    Simply download and install the free software, configure the buttons to fit your needs and you're ready to go.  With no drivers required for the Bluetooth Connection and no programming for the control, what could be easier!

Resources

NCD Base Station Software .zip file  Base Station identifies the controller that is attached to your computer and provides a convenient graphical user interface for controlling and testing your NCD Device.
Download ProXR Manual Download ProXR Manual

Software Development Tools:

NCD Component Library The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code.  This free download includes many example applications covering a wide range of topics.

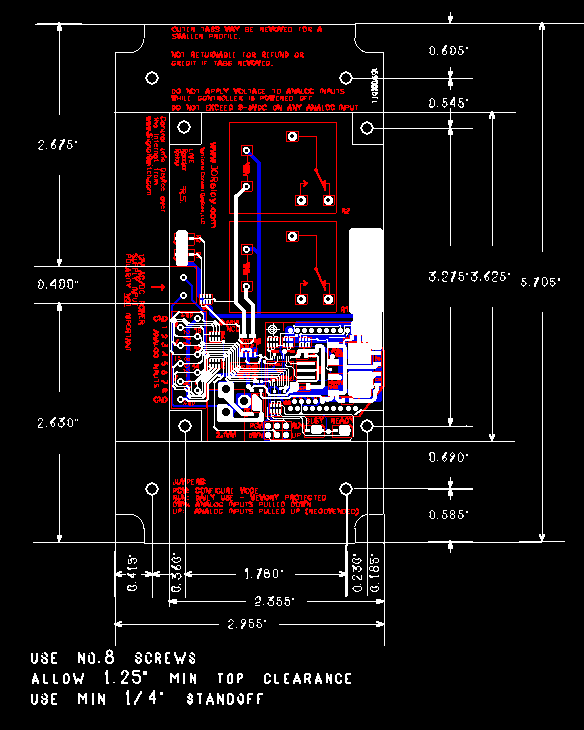

Mechanical Drawing Mechanical Drawing for this board

ProXR Lite Relay 2-Channel 30-Amp SPST with Bluetooth Interface


  Quantity in Basket: None
Code: R230PL_ZBT
Price: $179.00
Shipping Weight: 1.00 pounds

What Bluetooth Antenna Option would you like?:
Basic Internal Antenna (Included)
Enhanced Range External Antenna (+$20)
NOTICE: We currently do not support any Bluetooth Communications on mobile device platforms other than Windows Mobile and Android devices.
Would you like a Bluetooth Configuration Kit to configure your device? **Recommended** (Only one is needed to configure all your Bluetooth Modules):
Yes, I would like a Bluetooth Configuration Kit necessary to configure my Bluetooth Module (+$29)
No I already have a Bluetooth Configuration Kit or ZigMo to configure my Bluetooth Device.
Do you need a Power Supply?:
No Power Supply will be Included
120VAC to 12VDC 1.25A 60Hz USA Computer Grade Regulated Power Supply (+$24)
100-240VAC to 12VDC 1.5A 50/60Hz International Computer Grade Regulated Power Supply with 4 Adapters (+$36)
RoHS (Lead Free) Options:
Non-RoHS Compliant
RoHS Compliant (+$10)
Would you like to add an enclosure?:
Yes, add DFL Enclosure (+$20)
No Thanks, I don't need an enclosure
Which Version of Firmware would you like installed?:
V2.0 ProXR Lite Standard 20MHz CPU 115.2K Baud Fixed Communications Interface
V3.0 ProXR Lite Enhanced 64MHz CPU 2,000,000 Baud Changeable Communications Interface +$25
Do you need any Software for this Controller?:
No Software Needed
N-Button Lite Software Allows you to Add Custom Buttons to your Desktop for Controlling Relays 40% Discount when Purchased with Controller Bundle Savings only $29 (Regularly $49)

Quantity:
