R161DPDTR1610PROXR RS232 Relay
Discontinued - See Product description for details
Control this Device Over the Internet
Signal Switch Compatible
Discontinued - See Product description for details
$601.00/eaResources
Product Resources:
| Download Manual | Download Product Manual |
| Download Software | Download Example Software and Source Code |
Software Development Tools:
| NCD Component Library | The NCD Component Library is a Plug-In for Visual Studio 2005/2008 that greatly reduces software development time, effectively reducing most control operations to a single line of code. This free download includes many example applications covering a wide range of topics. |
Video Resources
(Select a thumbnail to view the video)Introduction to Relay Control
Learn how computer controlled relays communicate and control
Intro to Wired Communications
Learn the basics of wired communications and find the right wired controller for your application
Induction Suppression
Learn about Induction Suppression and how to counter it using Capacitors
Introduction to A/D
Learn about Analog to Digital Conversion and its uses
How to Find the Com Port
Learn how to find the Com Port that your Device is using
About Expansion Ports
Learn about the Expansion Options available to use with our controllers
Features
- Expandable to control up to 256 Relays using the XR Expansion Port
- 16 Background Timers Can be Assigned to Any of the Relays while Processing Your RS232 Commands
- Server Reboot, Watchdog, & Keep Alive Duration/Pulse Timing Command Set
- Available with SPST, SPDT, DPDT, High-Current and Signal Switching Relays
- 2400 to 115.2K Baud RS-232 Serial Connection for High Speed Switching
- Control One Relay at a Time or All 256 Relays at Once with Manual and Automatic Refreshing Command Set
- Full E3C Compliance Allows Control of 256 Different NCD Devices on a Single RS-232 Serial Port
- Four LEDs Indicated Heartbeat, E3C Enabled Status, Data Send/Receive
This Product:

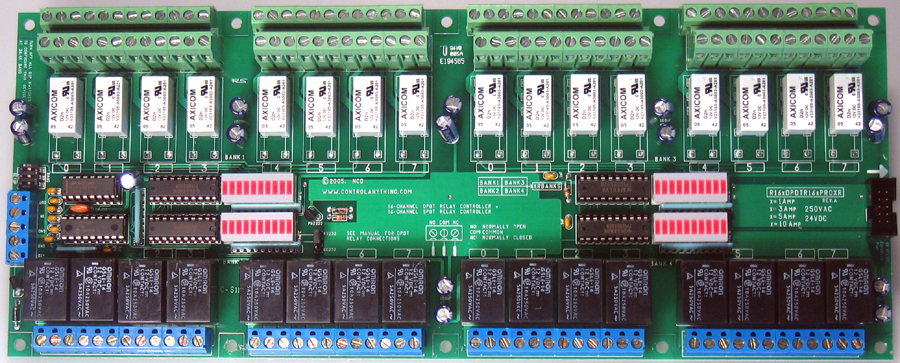

R161DPDTR1610PROXR
| Electrical Ratings | |||
|---|---|---|---|
| Relays | VAC | VDC | Amps |
| 1A DPDT | 120 | 12 | 1 |
| 3A DPDT | 240 | 24 | 3 |
| 5A DPDT | 240 | 24 | 5 |
| 5A SPDT | 240 | 24 | 5 |
| 10A SPDT | 240 | 24 | 10 |
|
Discontinued - See Product description for details |
| Stock#: R161DPDTR1610PROXR | |
| 1-9 | $601.00 |
Related Products:
R161DPDTR165PROXR
 |
Discontinued - See Product description for details |
| Stock#: R161DPDTR165PROXR | |
| 1-9 | $561.00 |
R163DPDTR1610PROXR
 |
Discontinued - See Product description for details |
| Stock#: R163DPDTR1610PROXR | |
| 1-9 | $641.00 |
R163DPDTR165PROXR
 |
Discontinued - See Product description for details |
| Stock#: R163DPDTR165PROXR | |
| 1-9 | $601.00 |
R165DPDTR1610PROXR
 |
Discontinued - See Product description for details |
| Stock#: R165DPDTR1610PROXR | |
| 1-9 | $681.00 |
R165DPDTR165PROXR
 |
16-Channel 5A DPDT Relay + 16-Channel 5A SPDT RS-232 Relay Controller |
| Stock#: R165DPDTR165PROXR | |
| 1-9 | $641.00 |
www.controlanything.com
Since October, 1995
RS-232 Serial Relay Controller
Our RS-232 Relay Boards are fully E3C complaint, allowing up to 256 NCD devices to share a single RS-232 serial port. Mix and match up to 256 devices in any combination. Speak to each device individually or all devices at once.
To control the this Relay Controller, simply connect a data and ground wire between the Relay Controller and computer or microcontroller. Provide +12 Volts DC to the board, and send ASCII character codes to control the relays.
Even a no-frills design deserves a high-quality driver stage, and that's exactly what we put on our Serial Relay Controllers. Fast-reacting flyback diodes help shunt dangerous voltages away from the driver circuit.
Features include no-click startup, LED status lights, and E3C compliance. Relays can be controlled at 9600 baud and the board is compatible with ANY computer or microcontroller capable of delivering RS-232 data.
RS232 Relay with ProXR Command Set
and A/D Conversion
The Most Powerful Command Set Available Anywhere
Read Sensors & Contact Closures with Built-In A/D Conversion
ProXR - The Most Powerful Relays Available!
RS-232 ProXR Relay Controller
This ProXR controller is built with the most powerful command set available anywhere. Put simply, ProXR is a standardized set of commands for controlling relays. This controller is also equipped with Analog to Digital conversion which is simply converting a voltage in the range of 0 to 5VDC into a number that can be processed by custom software that you develop. The applications are limitless and the data that you receive such as light levels and temperature levels can easily activate relays when A/D levels are reached. See more on A/D Conversion below.
Once powered up, the relay controller waits for a command. A command consists of a few bytes of data. Usually between 2 and 6 bytes. Once the command has been received, the controller processes the command, and sends you back ASCII character code 85 to signal the completion of your command. You can send commands to activate relays, deactivate relays, control all the relays at one time, plus you can send commands that tell a relay to turn on for a few seconds, minutes, or hours. You can assign 16 timers to any of the 256 relays, and set the timers to go off after the duration has expired. Look at the ProXR Command Set to see the full list of commands available.

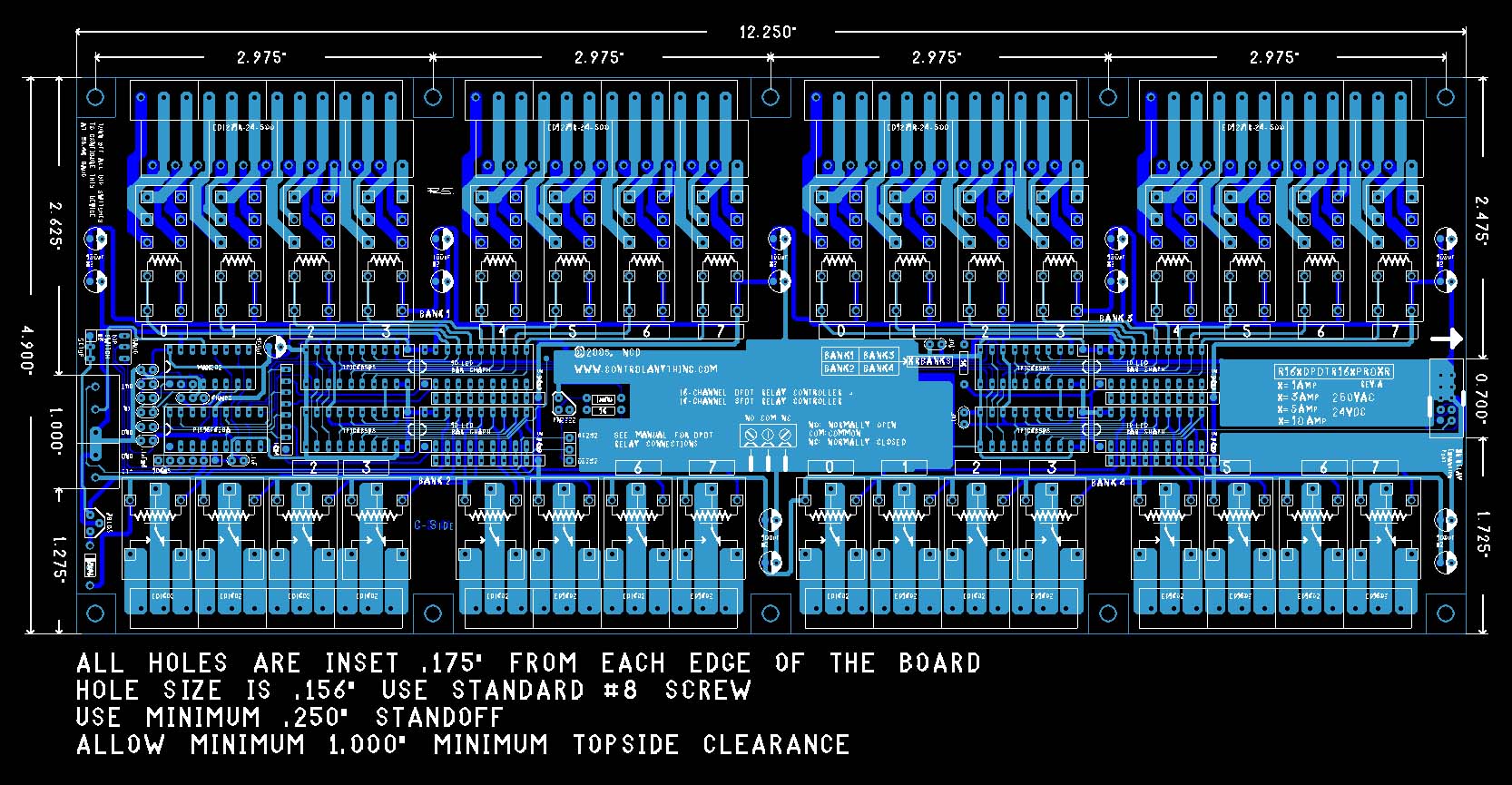

The features list of the ProXR series controllers is extensive. Our ProXR Software helps get you acquainted with the powerful command set. To download, look for the ProXR Software in the Resources section to the right and bottom of this page. The ProXR Manual and the mechanical drawing with dimensions and hole layouts can also be found in the Resources section.
Out of the box, the ProXR series controllers are ready to control 256 relays. You may not have 256 relays just yet, but if your application grows, then the controller is ready to grow with you. The ProXR series controllers are built from the ground up to be expanded. When you need more relays, the XR Expansion port will allow you to add another bank of relays (any kind you need), with programming changes taking minutes instead of hours. No complicated protocols, just simplicity, built into the controller from the very beginning.
Connect this board to the USB port of your computer using a USB to Serial adapter. The USB to Serial Adapter is to be used with the Quick Start Kit and is available at checkout.
Quick Start Kits
Also available is our QS12 Quick Start Kit. Kit includes a high quality regulated switcher supply, serial cables, and an RSIO adapter board used to add a standard serial and power connector to this relay controller. This Quick Start Kit can be purchased during checkout of this controller.
Discontinued - See Product description for details | |
|
Quantity in Basket:
None
Code: R161DPDTR1610PROXR Price: $601.00 Shipping Weight: 5.00 pounds | |
| Discontinued - See Product description for details | |
| Download and Install the ProXR Software |
The ProXR Software is designed to get you started controlling relays immediately. You will not likely use all the powerful commands in your own application, but you can see all the capabilities the ProXR series have to offer. From the very beginning, the ProXR series controllers were designed to control 256 relays. Powerful E3C networking commands and relay control commands offer limitless control posibilities.
 |
Below: |
| You can send commands directly to any relay bank |
 |
Below: |
| Sixteen background timers allow you to activate 16 different relays of your choice for 16 different periods of time. From Server Reboot Pulse Timing to Watchdog, Keep Alive, and Duration timing, the Capabilities of the Timers set the ProXR series apart from any relay controller in the industry. |
 |
Below: |
| Advanced timing functions allow you to calibrate the timers, and demo practical useage of the timing features using simple commands. |
 |
Below: |
| Advanced settings and features allow to tune the ProXR controller for maximum performance. |
 |
